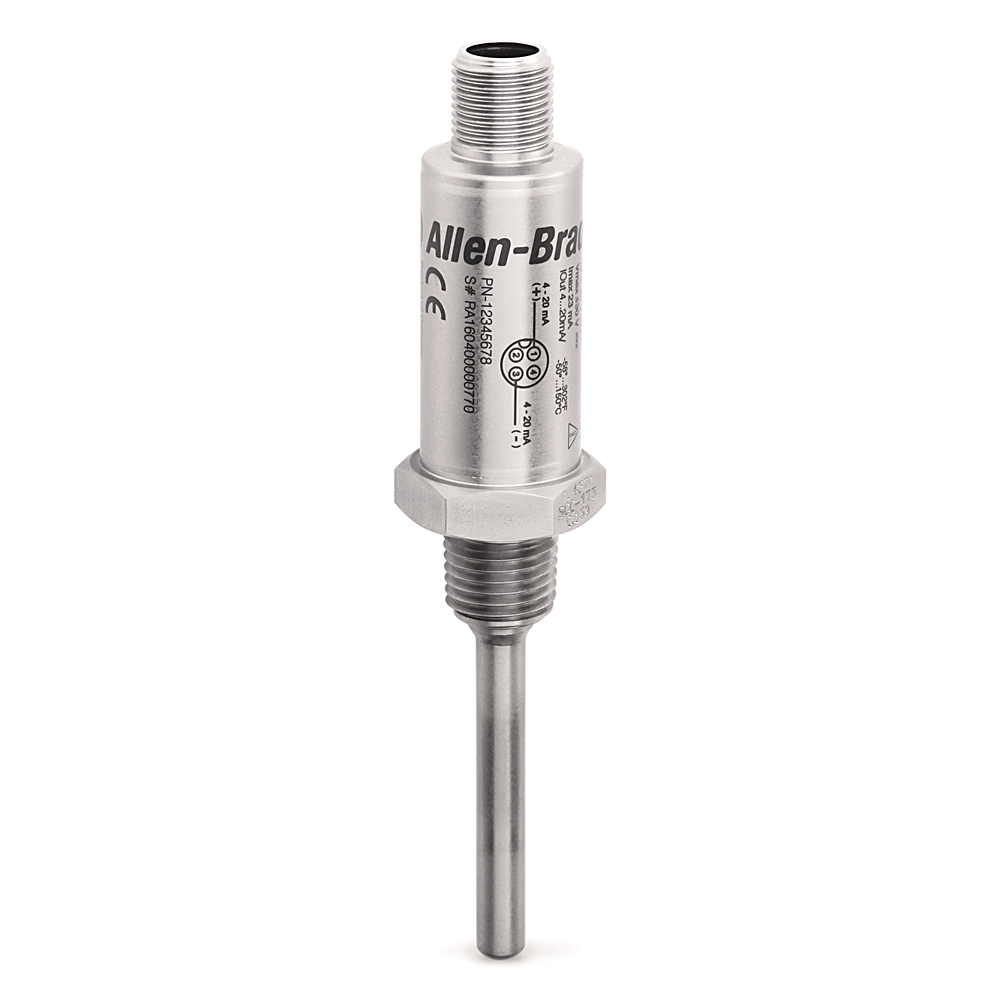

837T-N1N14A50A-D4

Solid-State Temperature Sensor, Standard, Non-Display, -58... +302F / -50... 150 C, 1/4 NPT - Male, 50 mm, 4-20 mA Analog Only, 4-Pin DC Micro(M12) Integral QD The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk. Ambient temperature | -40 °C Temperature measuring range | -50 °C Storage temperature | -40 °C Reverse polarity protection | Analog + vs. Analog - Power supply | 10...30V DC Temperature range | '-50 to 150 °C (-58…+302 °F) Humidity | 5...95% (according to IEC 60654-1) Operating pressure | 270 bar with 6 mm (0.24 in) sensor diam Mounting configuration | As required Process connection | 1/2 NPT male Display type | Non-display Analogue output 4 mA... 20 mA | True Output type | 4...20 mA analog only Response time | T05 <5 s (per DIN EN 60751), T09 <10 s (per DIN EN 60751) Length measuring insert | 50 mm Shock | 50 G (1.76 oz) 6 ms, 3 axis, 3 faces, 3 times for each face (IEC 60068-2-27, mechanical) Ingress rating | IP67 - M12x1 4 pin, IEC 60529 Vibration | 10...2000 Hz, 20 G (0.70 oz) (per IEC 60751-2-6, under resonance) Diameter measuring insert | 6 mm Connection type | 4 pin DC micro (M12) Load | ≤ power supply -10V/23 mA Temperature error | 0.1% of span/10 K Ta (note: span range is 20...300 K) @ -30...+85 °C (-22…+185 °F) in rate temperature range Switch on time | <4 s Long term drift | ≤ ±0.1% of span Measure deviation of the transmitter | ±0.25 K per IEC 60770 Sensor current | <0.3 mA (self-heating can be ignored) Non-linearity | ≤ ±0.1% of span ±0.2% for measure range, 0 °C (32 °F) Total deviation of measurement | Measurement deviation of the measuring element plus the transmitter per IEC 60770 Measure element | Pt1000/Class A.

Manufacturer

Allen-Bradley

Part number

837T-N1N14A50A-D4

Product family

837T

Category

Sensors & Switches

Technical details

Temperature range: '-50 to 150 °C (-58…+302 °F); Power supply: 10...30V DC; Sensor current: <0.3 mA (self-heating can be ignored); Rated voltage: 30V DC; Analogue output 4 mA... 20 mA: True; Output type: 4...20 mA analog only
