6082945

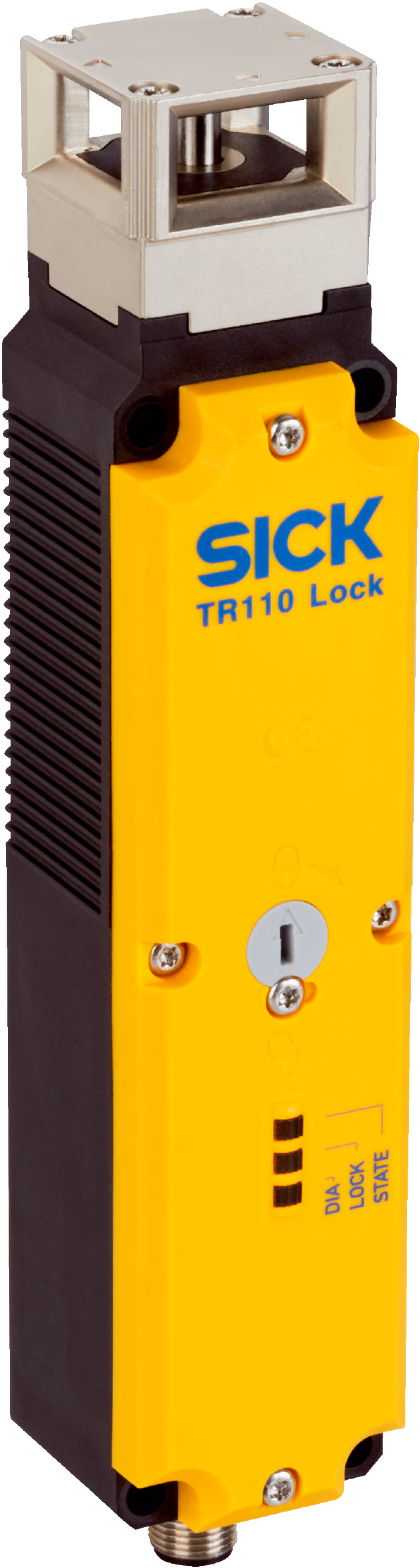

SICK 6082945 / TR110-SLUSAB0 is a safety switche in the TR110 Lock family. Locking principle: Power to lock; Connection type Detail: Plug connector, M12, 8-pin; Safe series connection: None, only individual wiring (with diagnostics); Escape release: no; Pushbuttons: no.

Manufacturer

Sick

Part number

6082945

Product family

TR110 Lock

Category

Safety switches

Technical details

Sensor principle: RFID; Supply voltage VS: Sensor 24 V DC (20.4 V DC... 28.8 V DC); Response time: ≤ 260 ms; Connection type: Plug connector, M12, 8-pin; Enclosure rating: IP67 (IEC 60529); IP69 (IEC 60529); IP69K (IEC 20653); Ambient operating temperature: –20 °C... +50 °C; Weight: 0.42 kg; Locking principle: Power to lock; Coding: Uniquely coded; Locking force Fmax: With straight actuator 3,900 N (EN ISO 14119); With angled actuator: 1,500 N (EN ISO 14119); With hinged actuator: 2,600 N (EN ISO 14119); Locking force FZh: With straight actuator 3,000 N (EN ISO 14119); Actuation force: ≥ 10 N

Weight

0.42 kg
