6081768

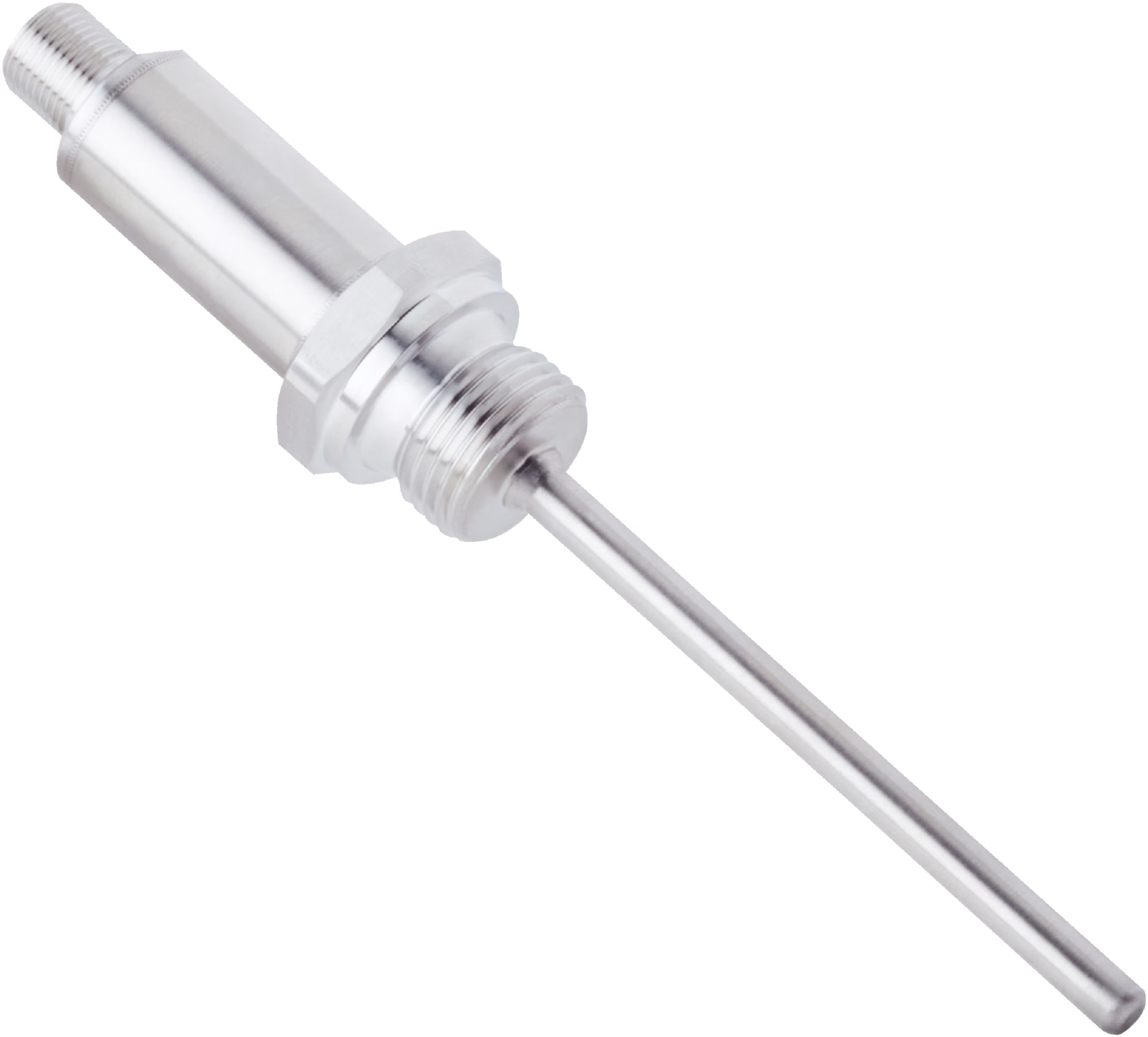

SICK 6081768 / TCT-2PAG10503MZ is a temperature sensor in the TCT family. Temperature measuring range: –50 °C... +150 °C; Process connection: Thread G ¼ B; Insertion length/diameter of probe: 50 mm / 3 mm; Seal: Without seal; Output signal: Pt100, 4-wire; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Communication interface: -.

Manufacturer

Sick

Part number

6081768

Product family

TCT

Category

Temperature sensors

Technical details

Communication interface: -; Accuracy of sensor element: Class A according to IEC 60751; Response time: t50 ≤ 2.8 s; t90 ≤ 9.1 s; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel 1.4571; Weight: Ca. 145 g (depending on configuration); Measuring range: –50 °C... +150 °C; Sensor element: Pt100; Output signal: Pt100, 4-wire; Process connection: Thread G ¼ B; Seal: Without seal; Insertion length/diameter of probe: 50 mm / 3 mm; Wetted parts: Stainless steel 1.4571

Weight

0.145 kg
