6071068

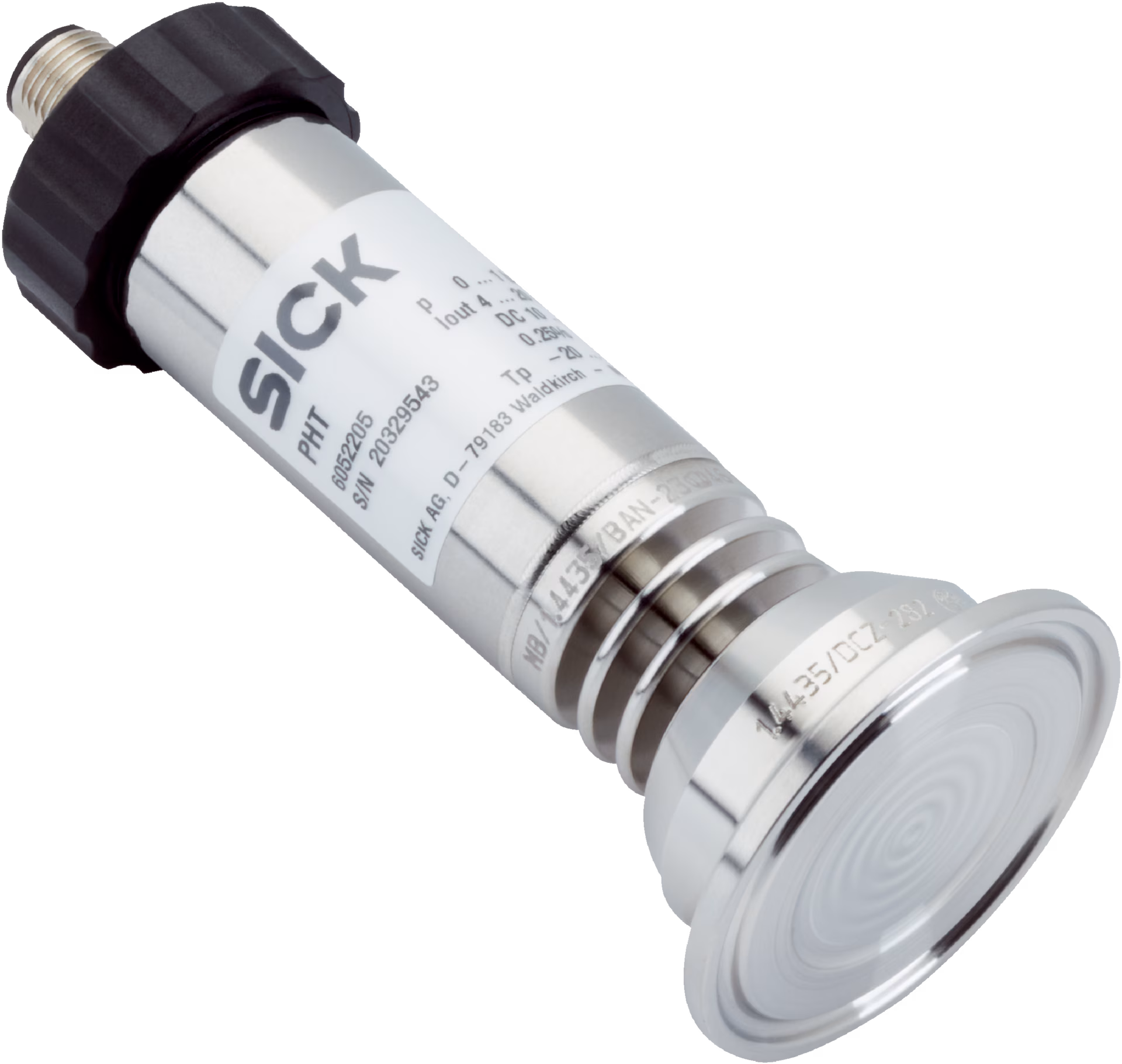

SICK 6071068 / PHT-AB4X0ET10SEALS0Z is a pressure sensor in the PHT family. Pressure type: Absolute pressure; Pressure unit: bar; Measuring range: 0 bar... 4 bar; Accuracy: ≤ ± 0.25 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection)); Process connection: Tri-Clamp 1 ½" (DIN 32676); Process temperature: –20 °C... +150 °C; Seal: EPDM; Communication interface: -; Output signal: 4 mA... 20 mA, 2-wire; Connection type: L-connector (DIN EN 175301-803 A), IP65; Supply voltage: 10 V DC... 30 V DC.
