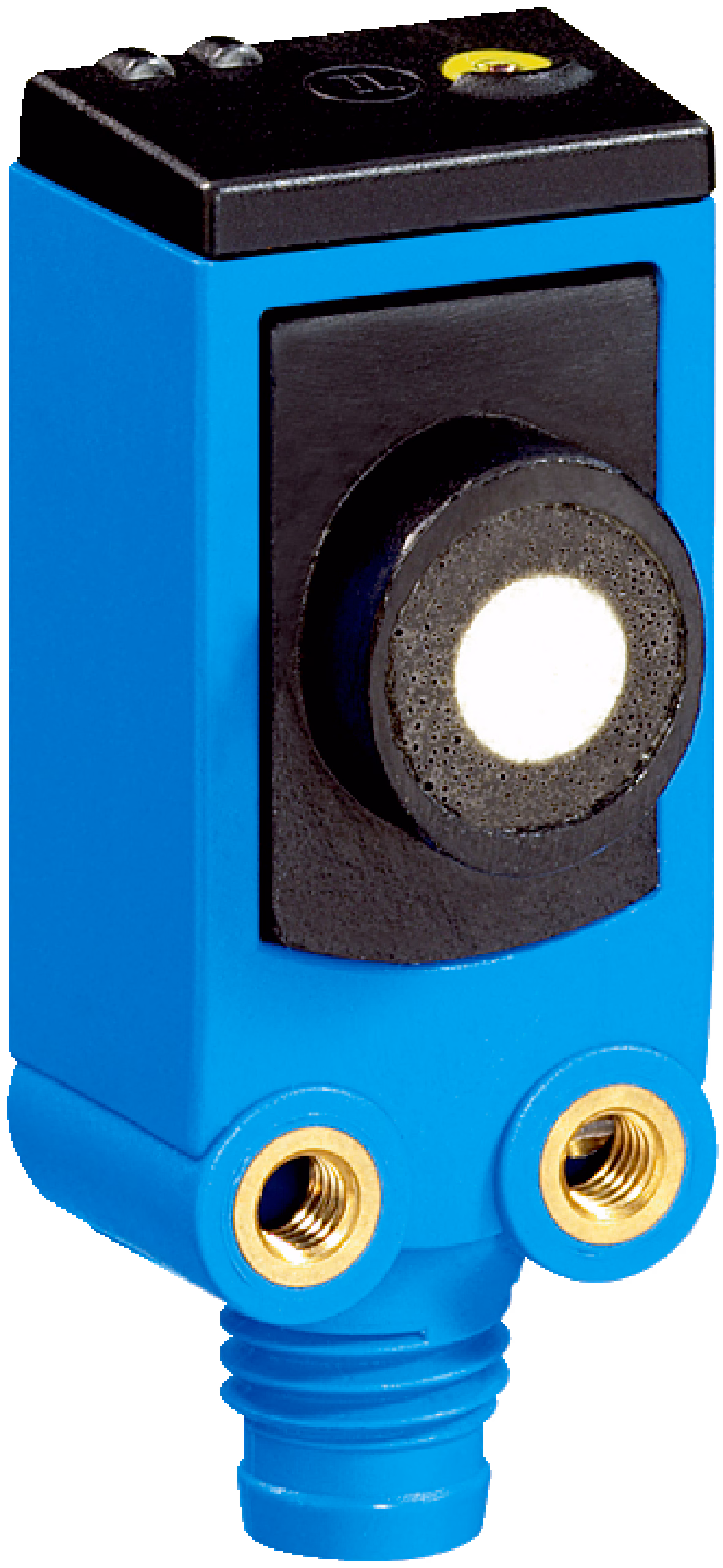

6063574

SICK 6063574 / UC4-1334A is an archive in the UC4 family. Ultrasonic distance sensors; Communication interface: IO-Link; Operating range, limiting range: 13 mm... 150 mm, 250 mm; Connection type: Male connector, M8, 3-pin; Sending axis: Straight; Response time: 24 ms; Digital output: 1 x push-pull: PNP/NPN; Communication Interface detail: IO-Link V1.0.

Manufacturer

Sick

Part number

6063574

Product family

UC4

Category

Archive

Technical details

Operating range, limiting range: 13 mm... 150 mm, 250 mm; Resolution: ≥ 0.1 mm; Supply voltage UB: DC 15 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 24 ms; Dimensions (W x H x D): 16 mm x 40.1 mm x 16.7 mm; Connection type: Male connector, M8, 3-pin; Enclosure rating: IP65 / IP67; Housing material: Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 10 g; Target: Natural objects; Temperature compensation: ✔; Switching frequency: 30 Hz

Weight

0.01 kg

Dimensions

16 x 40.1 x 16.7

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
