6059450

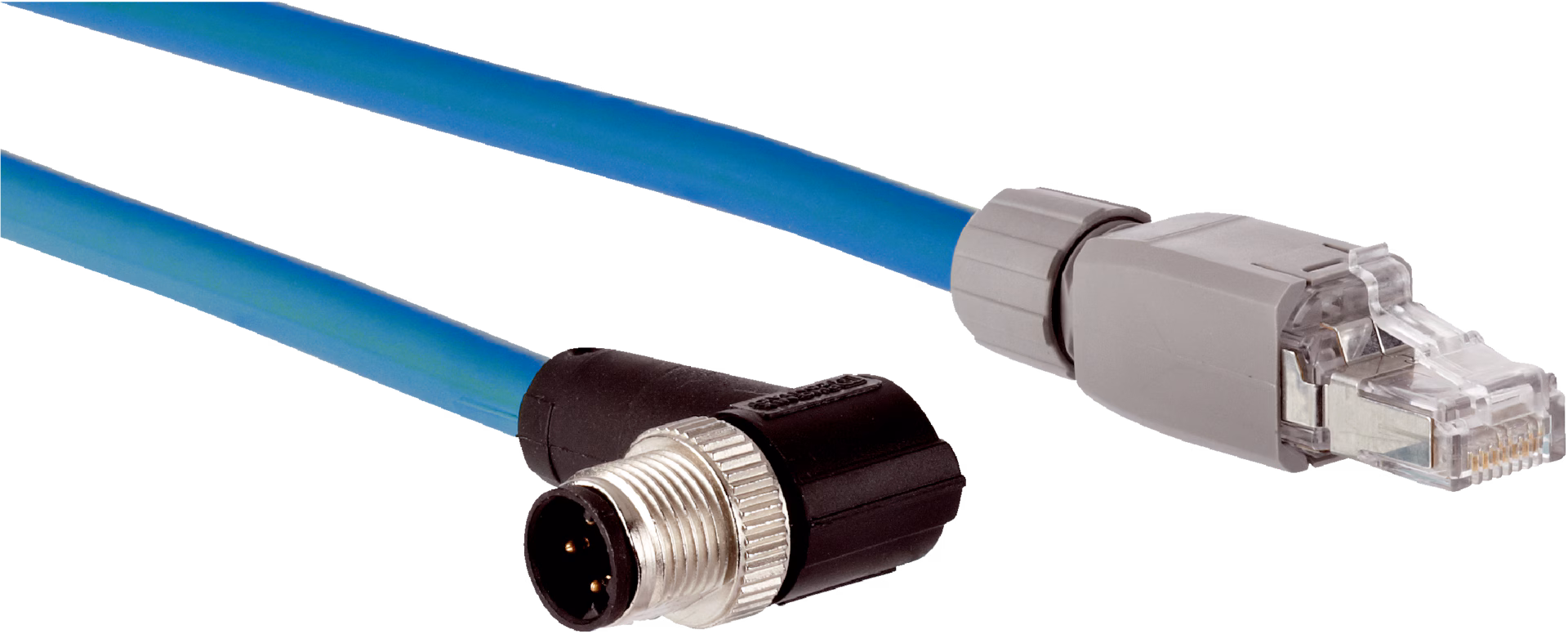

SICK 6059450 / SSL-2J04-F30MZ is a connectors and cable in the Industrial Ethernet cables and fieldbus cables family. Connection type head A: Male connector, RJ45, 4-pin, straight; Connection type head B: Male connector, M12, 4-pin, angled, D-coded; Signal type: Ethernet, PROFINET; Cable: 30 m, 4-wire, CAT5, CAT5e, PVC; Description: Ethernet, shielded, PROFINET.

Manufacturer

Sick

Part number

6059450

Product family

Industrial Ethernet cables and fieldbus cables

Category

Connectors and cables

Technical details

Connection type head A: Male connector, RJ45, 4-pin, straight; Connection type head B: Male connector, M12, 4-pin, angled, D-coded; Enclosure rating: IP65/ IP67/ IP69K (M12), IP20 (RJ45); Locking nut material: Zinc die-cast, nickel-plated; Cable: 30 m, 4-wire, CAT5, CAT5e, PVC; Jacket material: PVC; Jacket color: Green (RAL 6018); Cable diameter: 6.5 mm; Conductor cross section: 0.34 mm²; Shielding: Shielded; Bending radius: Flexible use > 7 x cable diameter; Stationary position: > 3 x cable diameter; Signal type: Ethernet, PROFINET; Operating temperature: Stationary position –20 °C... +60 °C

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
