6058641

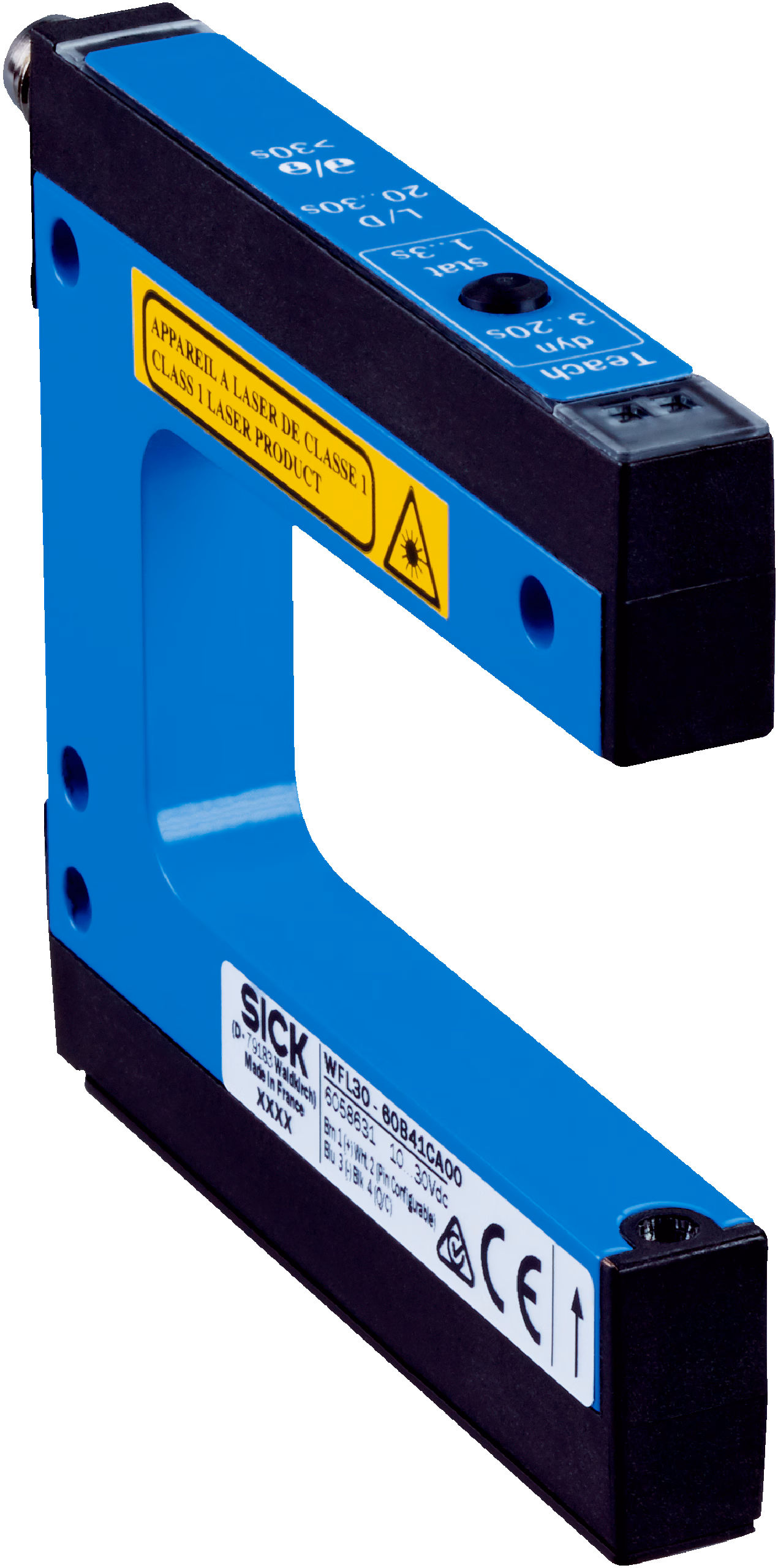

SICK 6058641 / WFL120-95B41CA00 is a fork sensor in the WFL family. Communication interface: IO-Link; Adjustment: Teach-in button, cable; Light source: Laser; Type of light: Visible red light; Fork width/depth: 120 mm, 95 mm; Switching output: Push-pull: PNP/NPN; Switching mode: Light/dark switching; Connection type Detail: Male connector M8, 4-pin; Switching frequency: 11 kHz; Response time: ≤ 60 µs; Enclosure rating: IP65.

Manufacturer

Sick

Part number

6058641

Product family

WFL

Category

Fork sensors

Technical details

Minimum detectable object (MDO): 0.05 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: Push-pull: PNP/NPN; Switching output (voltage): Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V; Response time: ≤ 60 µs; Stability of response time: ± 20 µs; Dimensions (W x H x D): 10 mm x 158.5 mm x 110 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP65; Housing material: Aluminum; Ambient operating temperature: –20 °C... +50 °C; Weight: Approx. 36 g... 160 g; Functional principle: Optical detection principle; Fork width: 120 mm

Weight

0.036 kg

Dimensions

10 x 158.5 x 110
