6058502

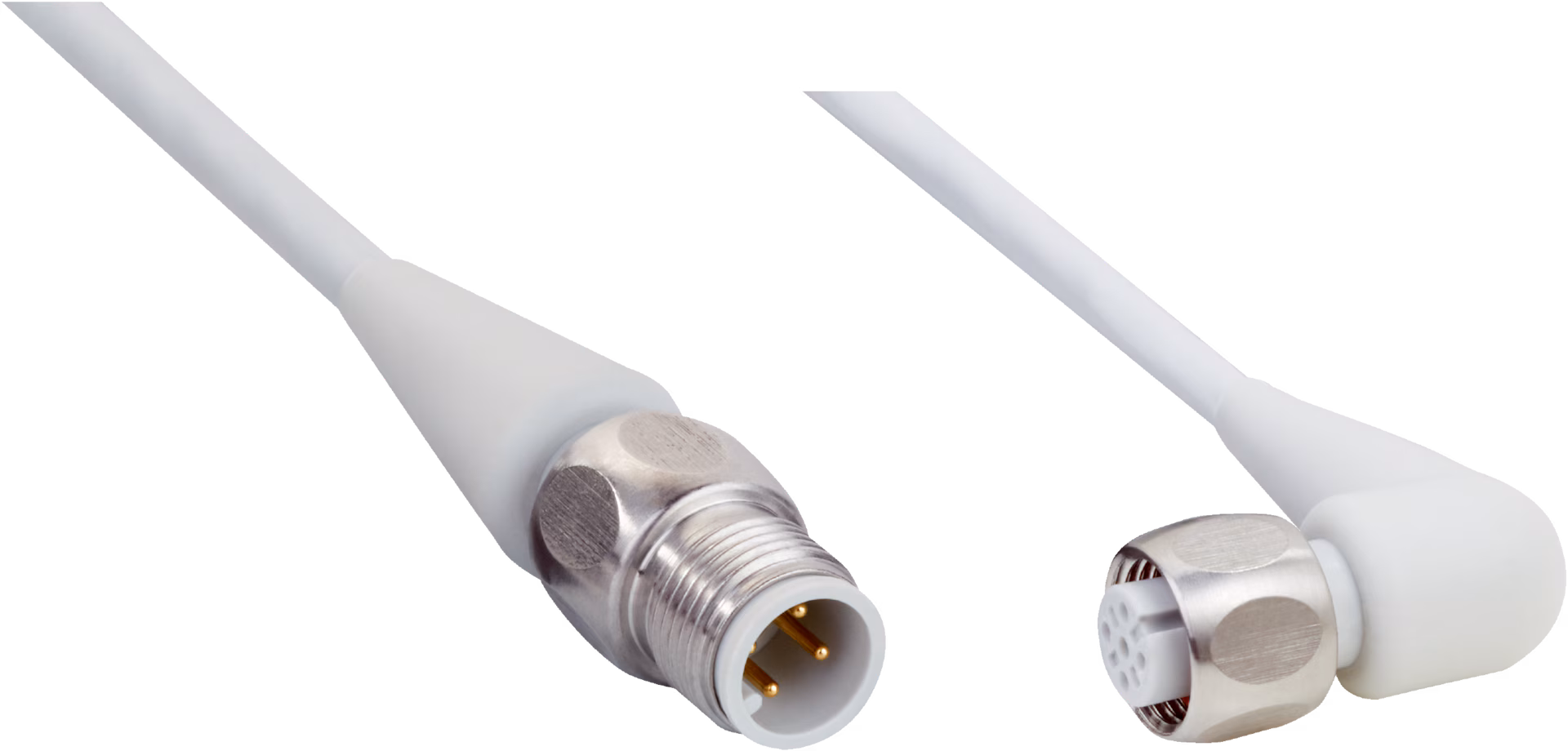

SICK 6058502 / DSL-1204-B02MRN is a connectors and cable in the Sensor-actuator cables family. Description: Sensor/actuator cable, unshielded; Connection type head A: Female connector, M12, 4-pin, angled; Connection type head B: Male connector, M12, 4-pin, straight; Signal type: Sensor/actuator cable; Cable: 2 m, 4-wire, PP; Note: This product is generally resistant to chemical cleaning agents (see ECOLAB) and other chemical compounds such as H2O2 and CH2O2. Before permanent installation is carried out, the material's resistance to the cleaning agent being used must be checked., Resistant against lactic acid & hydrogen peroxide (H2O2); Application: Hygienic and washdown zones, Drag chain operation, Robot, cold bending resistant, seawater resistant.

Manufacturer

Sick

Part number

6058502

Product family

Sensor-actuator cables

Category

Connectors and cables

Technical details

Connection type head A: Female connector, M12, 4-pin, angled; Connection type head B: Male connector, M12, 4-pin, straight; Enclosure rating: IP67/ IP69K; Connector material: PP; Connector color: Gray; Locking nut material: Stainless steel (V4A/1.4404); Tightening torque: 1 Nm; Width across flats: 14; Cable: 2 m, 4-wire, PP; Jacket material: PP; Jacket color: Gray; Cable diameter: 4.6 mm; Conductor cross section: 0.34 mm²; Shielding: Unshielded
