6050176

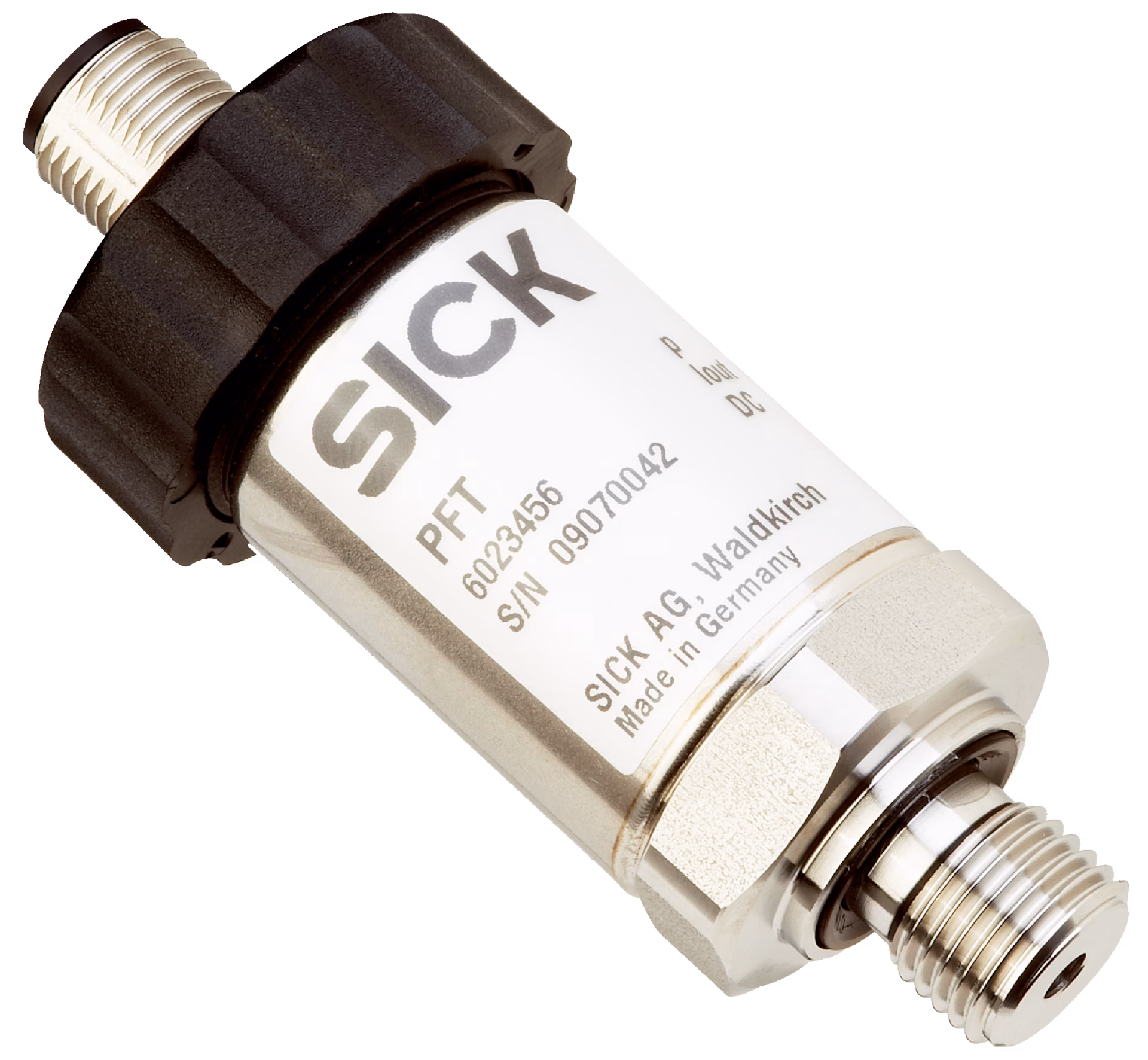

SICK 6050176 / PFT-FRB010AF2OHCAMSSZ is a pressure sensor in the PFT family. Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Accuracy: ≤ ± 0.25 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position); Process connection: G ½ B flush mounted; Pressure port: Front-flush membrane; Process temperature: –20 °C... +150 °C; Seal: FKM; Communication interface: -; Output signal: 4 mA... 20 mA, 2-wire; Connection type: M12 round connector x 1, 4-pin, IP67; Supply voltage: 10 V DC... 30 V DC.

Manufacturer

Sick

Part number

6050176

Product family

PFT

Category

Pressure sensors

Technical details

Supply voltage: 10 V DC... 30 V DC; Communication interface: -; Accuracy: ≤ ± 0.25 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position); Non-repeatability: ≤ ± 0.1 % of the span; Response time (10 %... 90 %): ≤ 1 ms ≤ 10 ms at medium temperatures below < –30°C for pressure ranges up to 25 bar or with flush-mounted membrane; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel 1.4571; Medium: Liquid, gaseous; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Process temperature: –20 °C... +150 °C; Maximum ohmic load RA: 4 mA... 20 mA, 2-wire (RA ≤ (L – 10 V) / 0.02 A [Ohm]), 0 V... 5 V, 3-wire (RA > 5 kOhm), 0 V... 10 V, 3-wire (RA > 10 kOhm)
