6049071

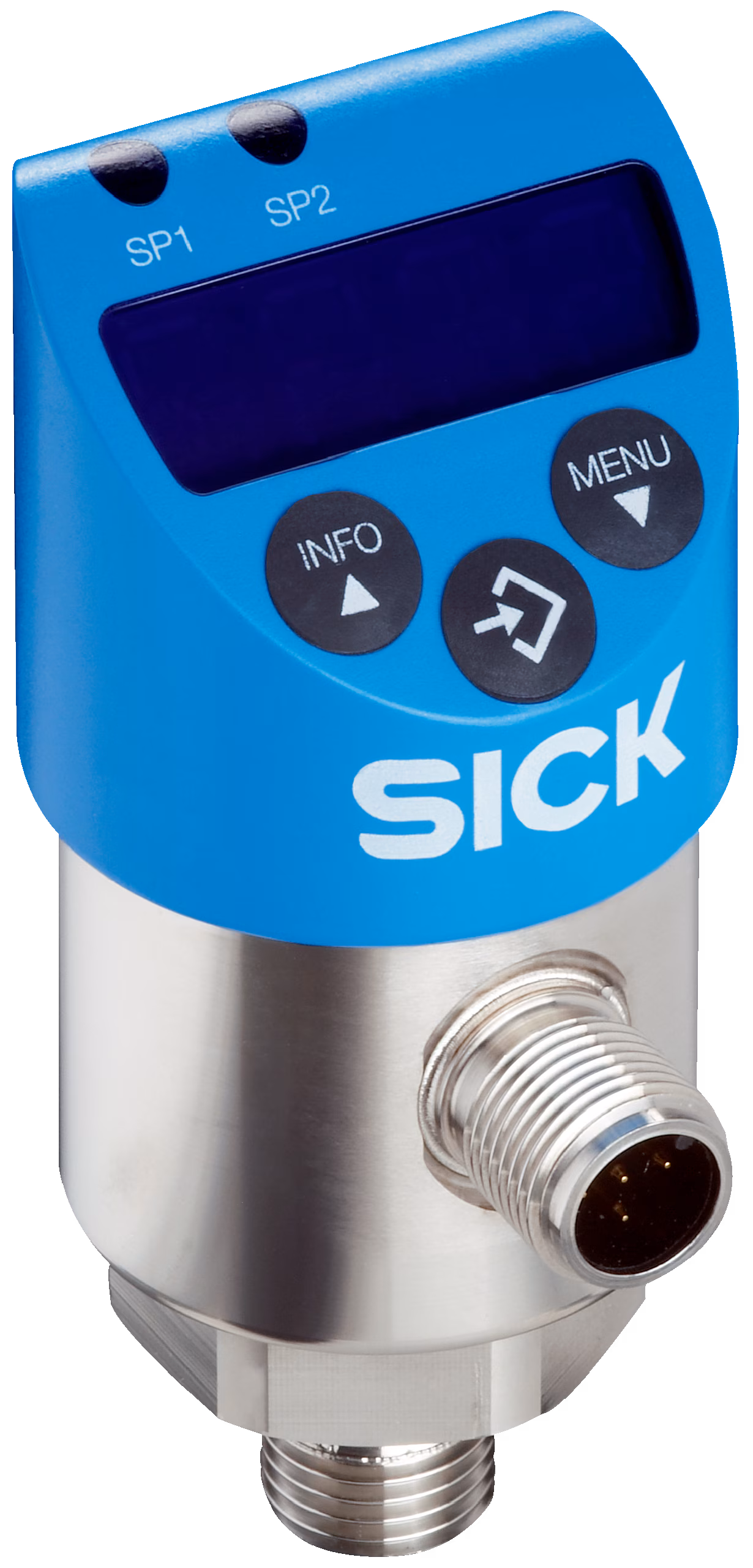

SICK 6049071 / PBS-RB010SF2FSNAMA0Z is an archive in the PBS family. Pressure sensors; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Process connection: G ½ B flush mounted; Pressure port: Front-flush membrane; Process temperature: –20 °C... +85 °C; Seal: NBR; Communication interface: -; Output signal: 2 x PNP; Connection type: M12 round connector x 1, 4-pin, IP67; Supply voltage: 15 V DC... 35 V DC.

Manufacturer

Sick

Part number

6049071

Product family

PBS

Category

Archive

Technical details

Supply voltage: 15 V DC... 35 V DC; Communication interface: -; Setting accuracy of switching outputs: ≤ ± 0.5 % of span; Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Response time: 3 ms; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Housing material: Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC; Medium: Liquid, gaseous; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Process temperature: –20 °C... +85 °C; Maximum ohmic load RA: 4 mA... 20 mA (RA ≤ 0.5 kOhm), 0 V... 10 V, 3-wire (RA > 10 kOhm)
