6044760

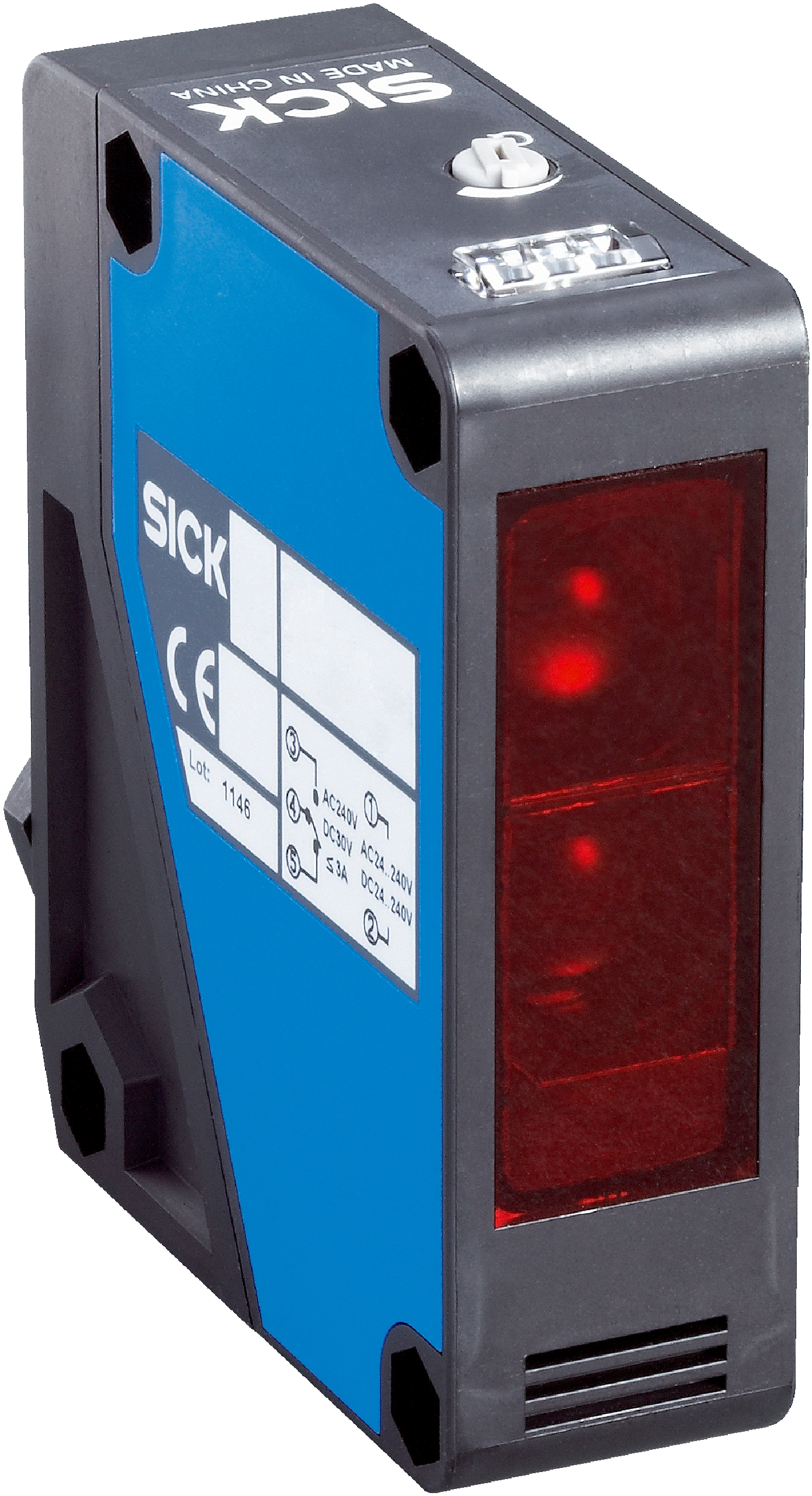

SICK 6044760 / WL280-2R4331 is a photoelectric sensor in the W280-2 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: Relay; Switching mode: Light switching; Connection type: Cable gland; Light source: LED; Adjustment: Potentiometer; Communication interface: -; Included with delivery: Mounting bracket BEF-W280, Reflector P250.

Manufacturer

Sick

Part number

6044760

Product family

W280-2

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0.01 m... 15 m; 0.01 m... 12 m; Sensing range: 0.01 m... 13 m; 0.01 m... 11 m; Supply voltage UB: 24 V DC... 240 V DC; 24 V AC... 240 V AC; Switching output: Relay, electrically isolated; Response time: ≤ 15 ms; Dimensions (W x H x D): 23.5 mm x 74.5 mm x 63 mm; Connection type: Cable gland; Enclosure rating: IP66; IP67; Housing material: Plastic, ABS; Ambient operating temperature: –25 °C... +55 °C; Weight: 150 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.15 kg

Dimensions

23.5 x 74.5 x 63
