6043838

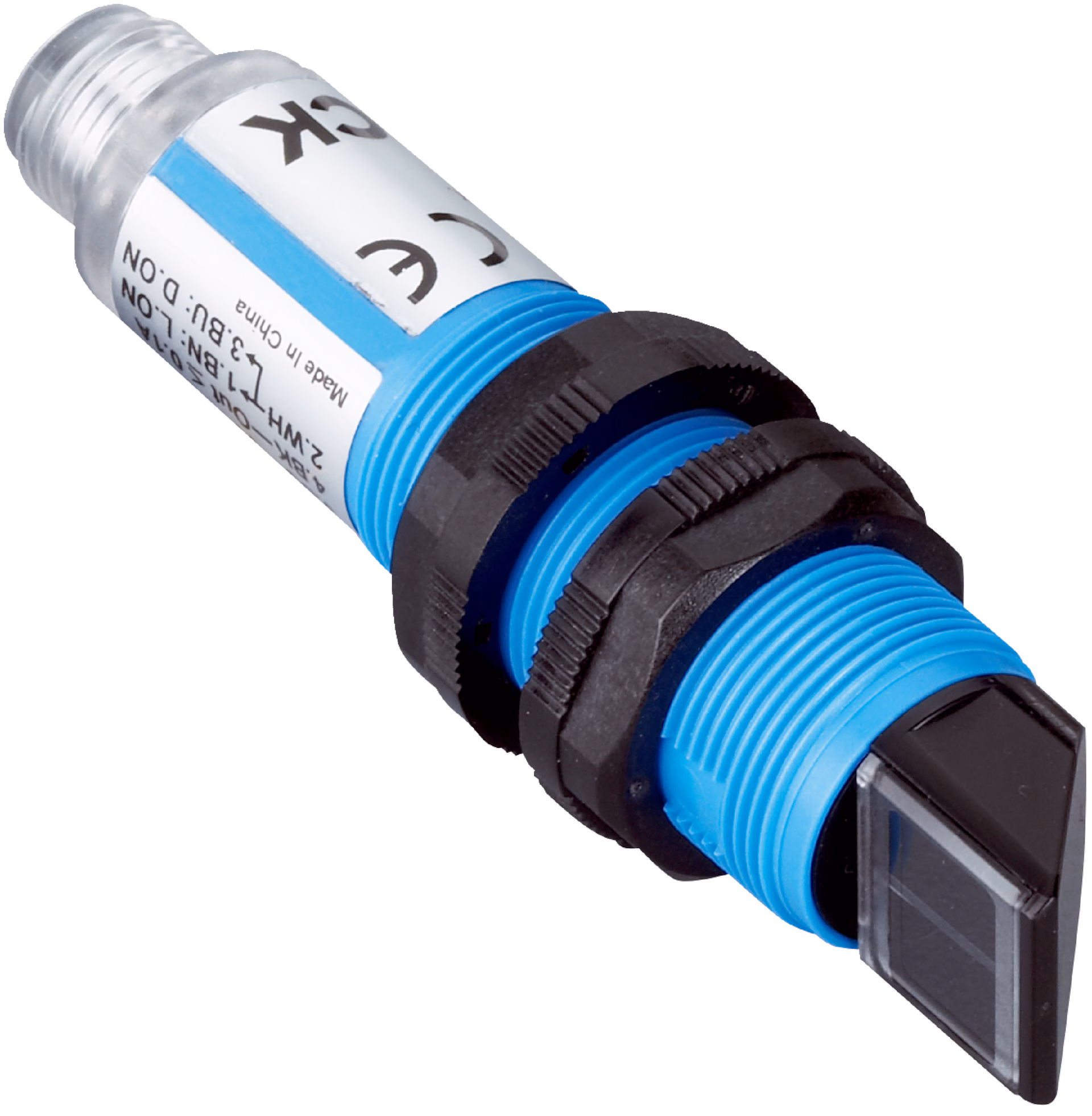

SICK 6043838 / VL180-2P42438 is a photoelectric sensor in the V180 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: LED; Adjustment: Potentiometer; Communication interface: -; Included with delivery: Reflector P250.

Manufacturer

Sick

Part number

6043838

Product family

V180

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0.05 m... 5.5 m; Sensing range: 0.05 m... 4.5 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 18 mm x 18 mm x 84.2 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: Plastic, PBT/PC; Ambient operating temperature: –25 °C... +55 °C; Weight: 18 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.018 kg

Dimensions

18 x 18 x 84.2
