6043212

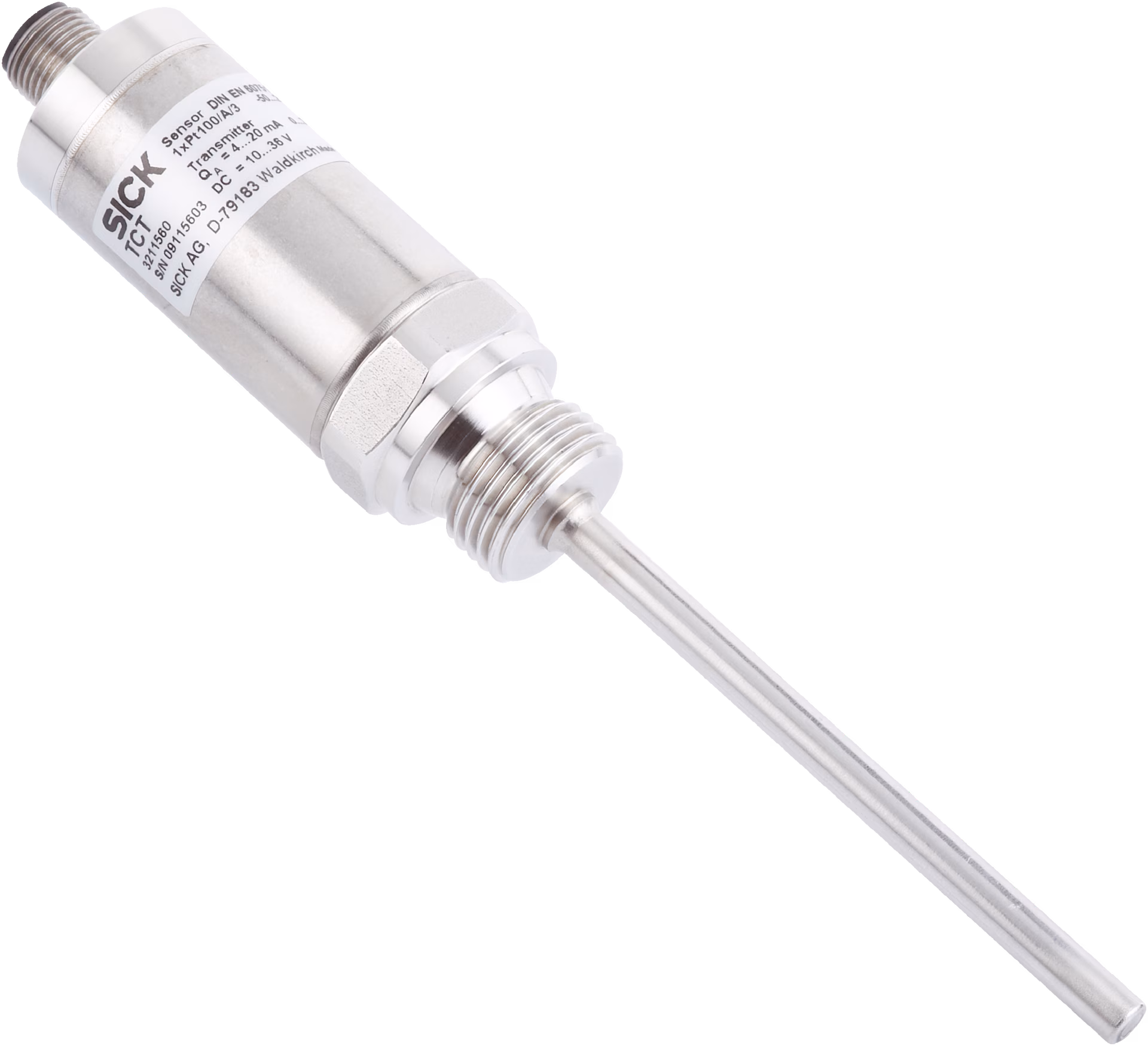

SICK 6043212 / TCT-1AAG11006MZ is an archive in the TCT family. Temperature sensors; Temperature measuring range: –50 °C... +150 °C; Process connection: Thread G ¼ B; Insertion length/diameter of probe: 100 mm / 6 mm; Seal: Without seal; Output signal: 4 mA... 20 mA, 2-wire; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Communication interface: -.

Manufacturer

Sick

Part number

6043212

Product family

TCT

Category

Archive

Technical details

Supply voltage: 10 V DC... 35 V DC; Communication interface: -; Accuracy of sensor element: Class A according to IEC 60751; Transmitter accuracy: ≤ ± 0.2 % of span; Response time: t50 ≤ 2.8 s; t90 ≤ 9.1 s; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel 1.4571; Weight: Ca. 145 g (depending on configuration); Measuring range: –50 °C... +150 °C; Sensor element: Pt1000; Output signal: 4 mA... 20 mA, 2-wire; Maximum ohmic load RA: RA ≤ (L – 9 V) / 0.023 A [Ohm]; Process connection: Thread G ¼ B

Weight

0.145 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
