6042849

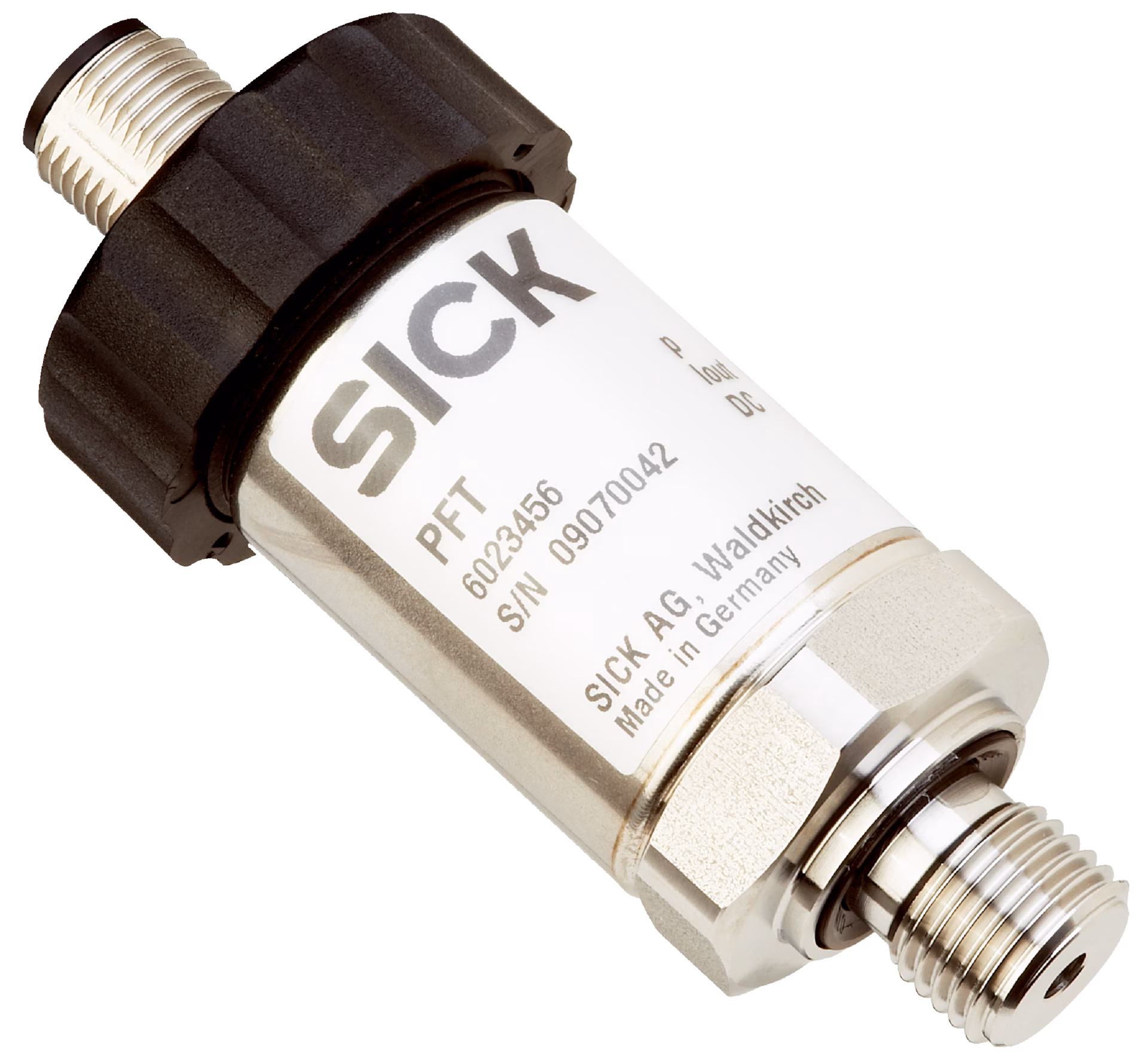

SICK 6042849 / PFT-FRB010SF2OHCALSSZ is a pressure sensor in the PFT family. Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Accuracy: ≤ ± 0.5 %, of the span (= ± 0.25% of the span (optionally for pressure ranges = 0.25 bar). applies inclusive of nonlinearity, hysteresis, non-repeatability, zero-point and full-scale error (corresponds to error of measurement as per IEC 61298-2) Calibrated with vertical installation position); Process connection: G ½ B flush mounted; Pressure port: Front-flush membrane; Process temperature: –20 °C... +150 °C; Seal: FKM; Communication interface: -; Output signal: 4 mA... 20 mA, 2-wire; Connection type: L-connector (DIN EN 175301-803 A), IP65; Supply voltage: 10 V DC... 30 V DC.
