6042693

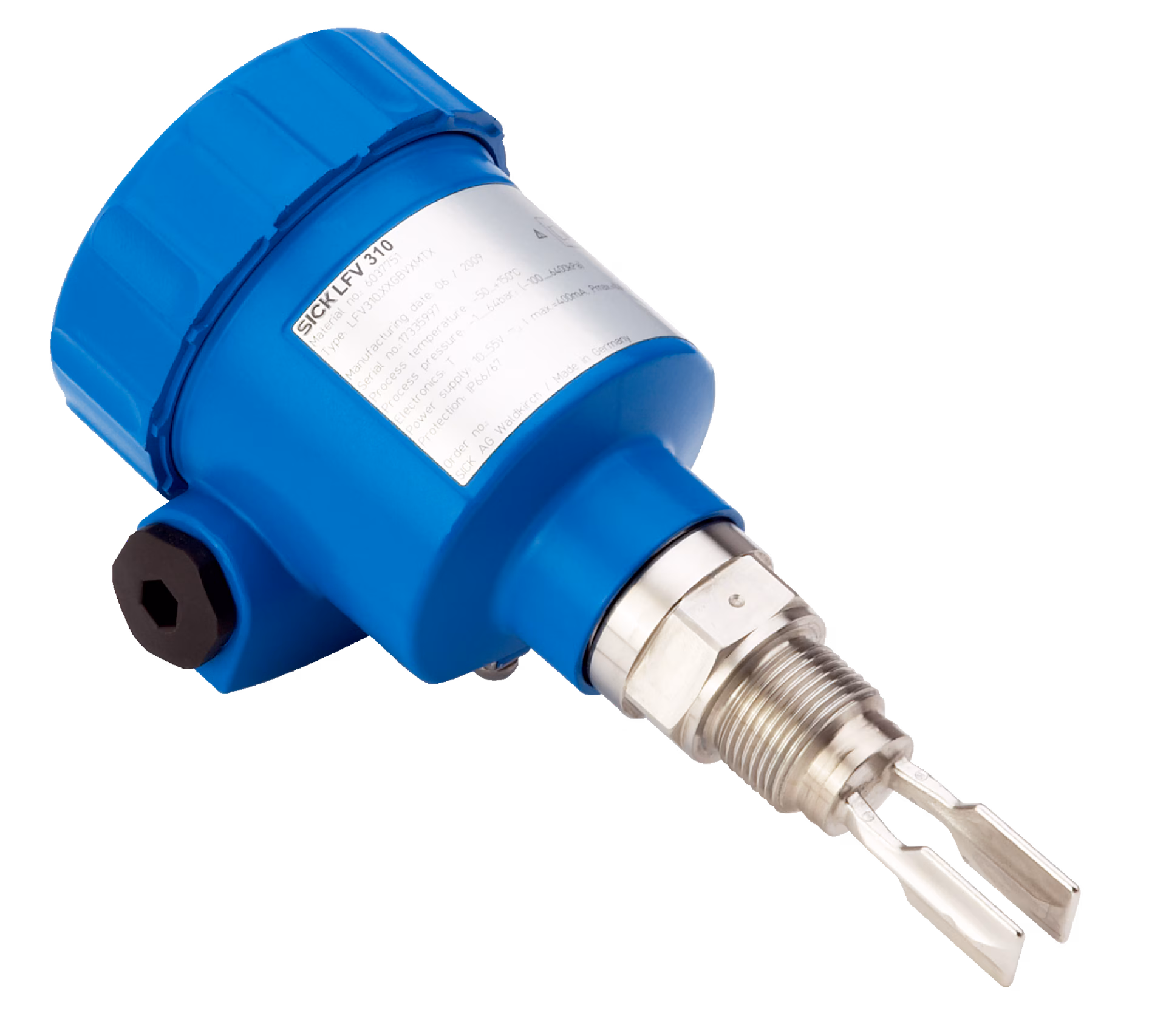

SICK 6042693 / LFV310-CAGBVXPNX is an archive in the LFV300 family. Level sensors; Process connection: G ¾ A PN 64 / 1.4404; Output signal: NAMUR signal; Probe length: 66 mm; Wetted parts: Stainless steel 316L (optional Ra ≤ 0.8 μm); Housing material: Plastic; Connection type: M20 x 1.5; Process temperature: –50 °C... +150 °C, See safety notes for ATEX devices; Authorizations: PTB 16 ATEX 2008 X / ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Ga, Ga/Gb, Gb +WHG.

Manufacturer

Sick

Part number

6042693

Product family

LFV300

Category

Archive

Technical details

Supply voltage: 4.5 V DC... 12 V DC; Communication interface: -; Accuracy of sensor element: ± 2 mm; Response time: 500 ms; Connection type: M20 x 1.5; Enclosure rating: IP66 / IP67; Housing material: Plastic; Ambient operating temperature: –40 °C... +70 °C; Measurement: Switch; Probe length: 66 mm; Process pressure: –1 bar... 64 bar; Process temperature: –50 °C... +150 °C, See safety notes for ATEX devices; Fill material density: 0.5 g/cm³... 2.5 g/cm³; ATEX approval: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Ga, Ga/Gb, Gb +WHG
