6039096

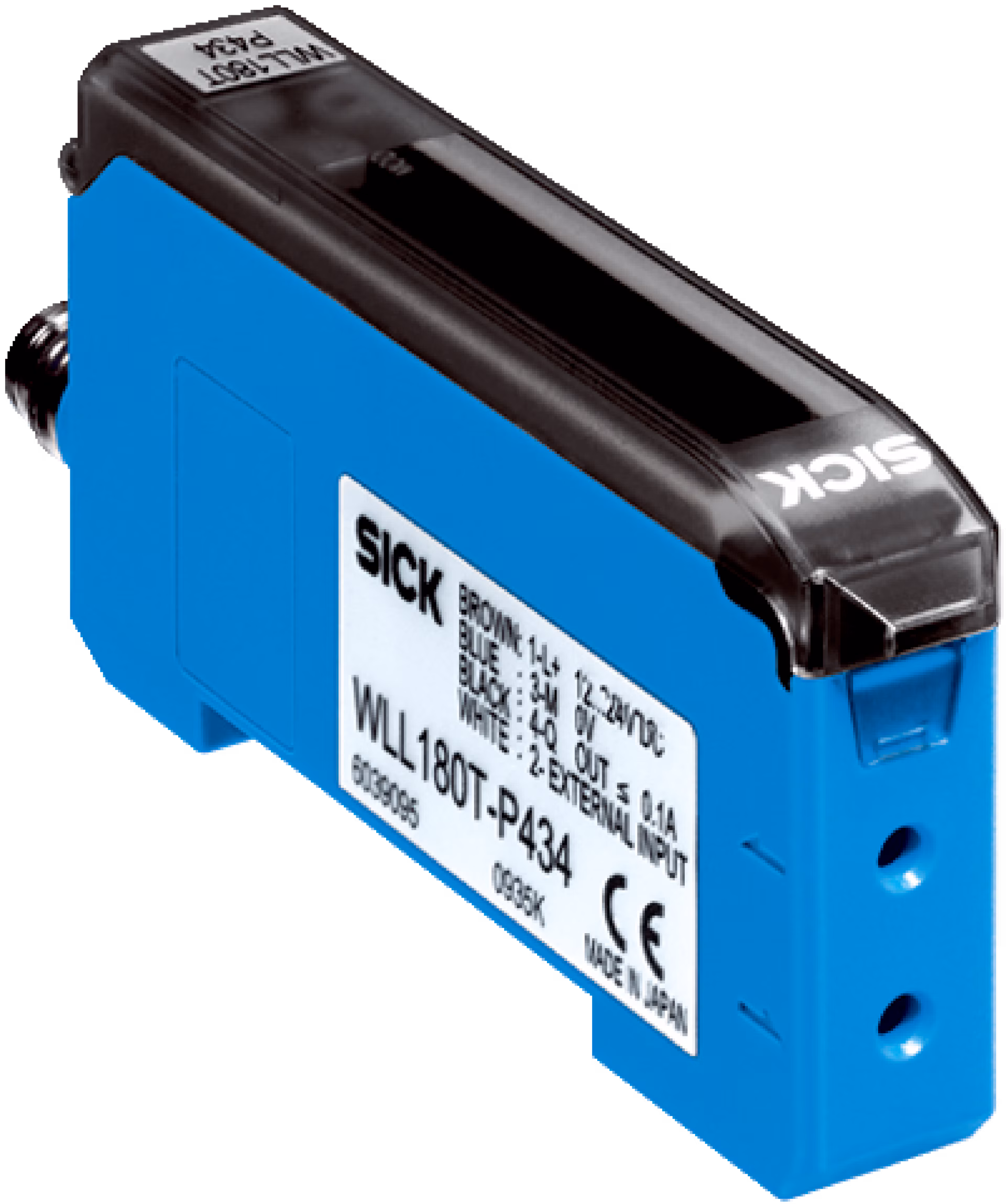

SICK 6039096 / WLL180T-N434 is a fiber-optic sensor in the WLL180 family. Device type: Fiber-optic amplifier; Device type detail: Stand-alone; Switching output: NPN; Connection type: Male connector M8, 4-pin; Type of light: Visible red light; Adjustment: Menu-controlled, Teach-in button, cable; Display: 7-segment, 8-digit; Included with delivery: BEF-WLL180 mounting bracket.

Manufacturer

Sick

Part number

6039096

Product family

WLL180

Category

Fiber-optic sensors

Technical details

Type of light: Visible red light; Sensing range max.: Depending on the optical fiber cable used; Supply voltage UB: 12 V DC... 24 V DC; Overcurrent protected Short-circuit protected Response time: ≤ 16 µs; Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm; Enclosure rating: IP50 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 20 g; Device type: Fiber-optic amplifier; Device type detail: Stand-alone; Functional principle detail: Depending on the optical fiber cable used; Emitted beam: Light source LED; Key LED figures: Normative reference EN 62471:2008-09 | IEC 62471:2006, modified; LED risk group marking: Free group

Weight

0.02 kg

Dimensions

10.5 x 34.6 x 71.9
