6038638

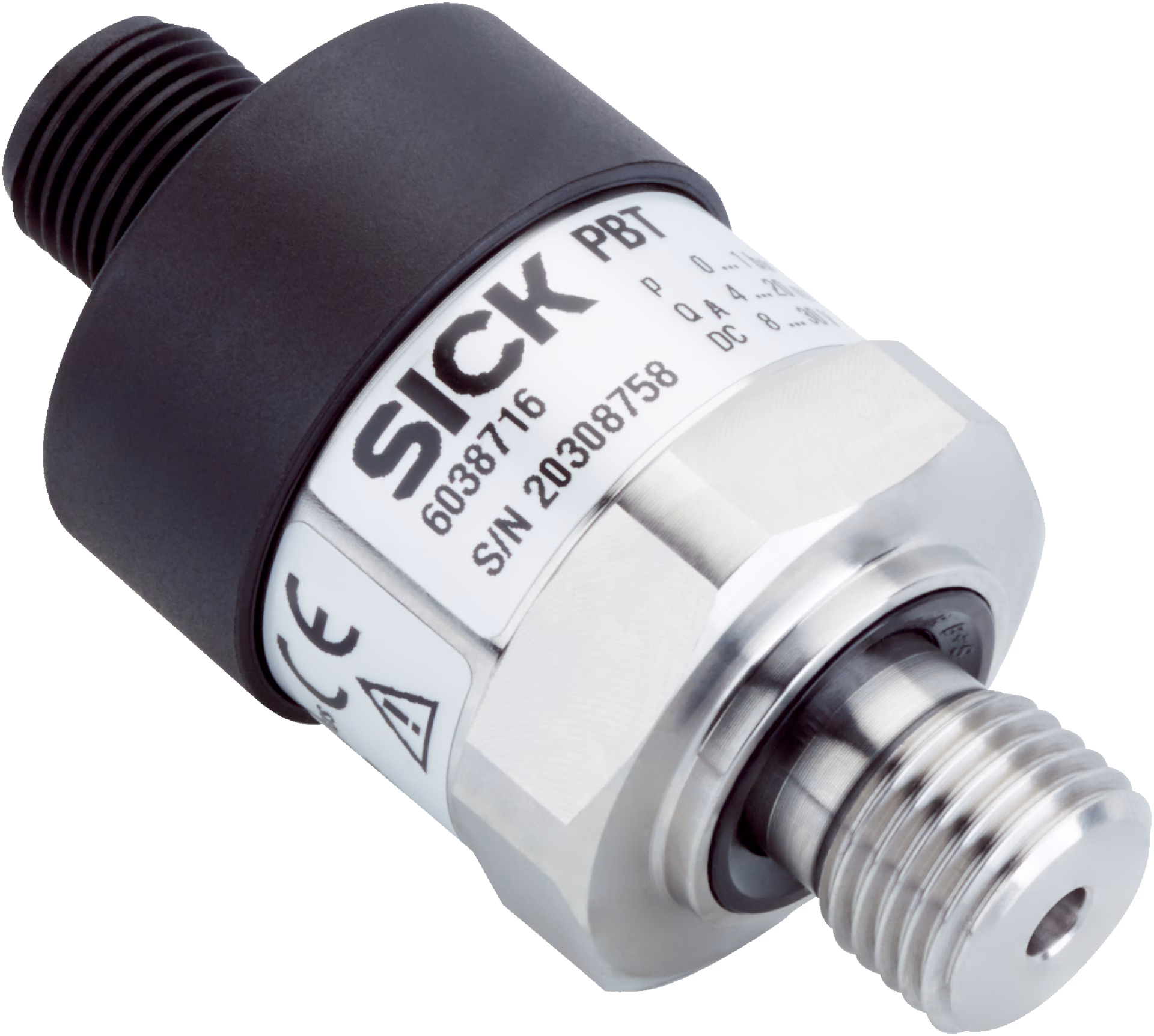

SICK 6038638 / PBT-RB010SG1SSNVMC0Z is a pressure sensor in the PBT family. Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Process connection: G ¼ A (ISO 1179-2); Pressure port: Standard; Process temperature: 0 °C... +80 °C; Seal: NBR; Communication interface: -; Output signal: 0 V... 10 V, 3-wire; Connection type: M12 round connector x 1, 4-pin, IP67; Supply voltage: 14 V DC... 30 V DC.

Manufacturer

Sick

Part number

6038638

Product family

PBT

Category

Pressure sensors

Technical details

Supply voltage: 14 V DC... 30 V DC; Communication interface: -; Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)); Adjustment accuracy of zero signal: ≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %); Non-repeatability: ≤ 0.1 % of the span; Response time: < 4 ms; Connection type: M12 round connector x 1, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel; Medium: Liquid, gaseous; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar... 10 bar; Process temperature: 0 °C... +80 °C

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
