6037823

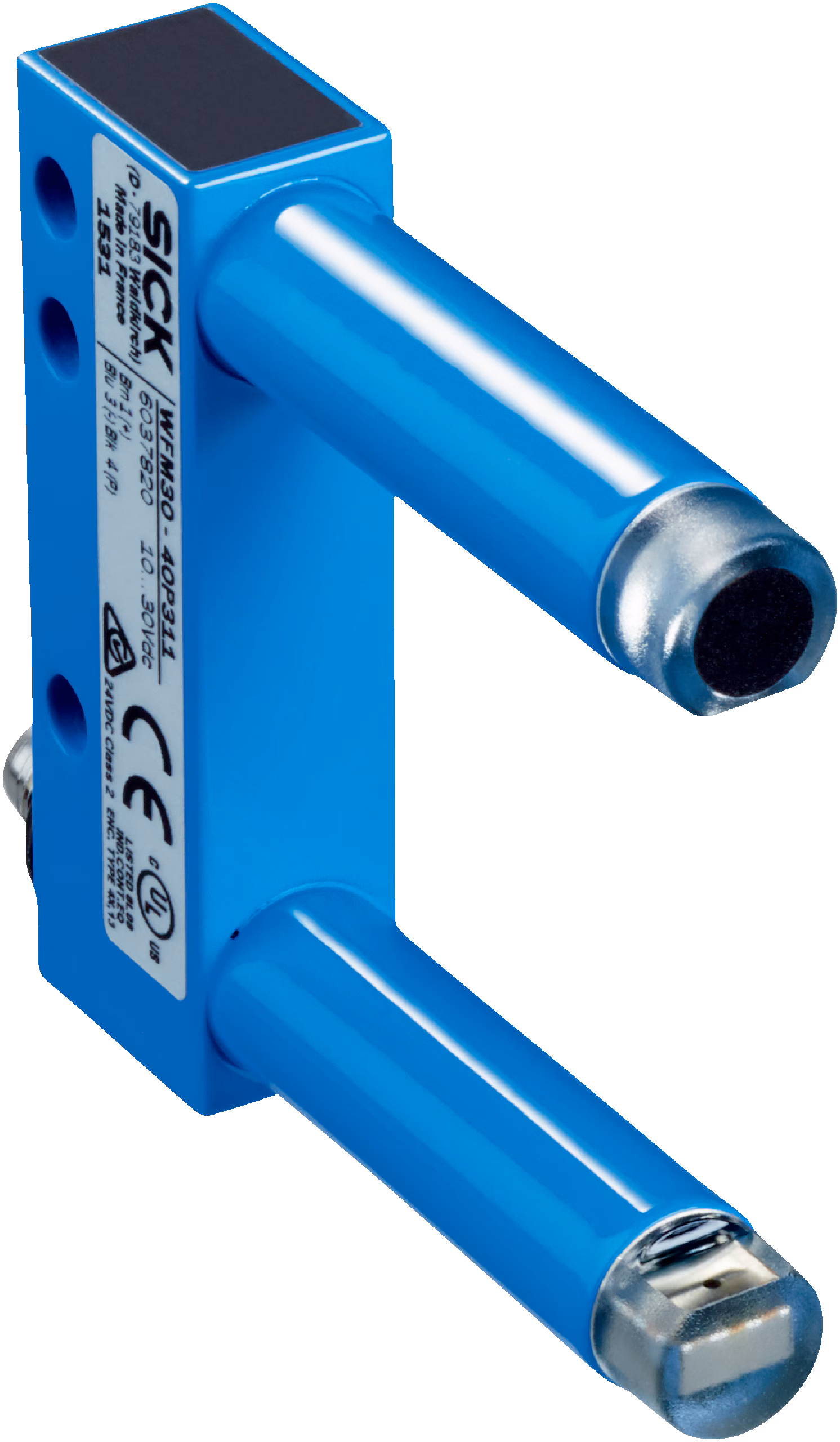

SICK 6037823 / WFM30-40P121 is a fork sensor in the WFM family. Adjustment: None; Light source: LED; Fork width/depth: 30 mm, 42 mm; Switching output: PNP; Switching mode: Dark switching; Connection type Detail: Cable, 3-wire; Switching frequency: 4 kHz; Response time: ≤ 125 µs; Enclosure rating: IP67.

Manufacturer

Sick

Part number

6037823

Product family

WFM

Category

Fork sensors

Technical details

Minimum detectable object (MDO): 0.8 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: PNP; Switching output (voltage): PNP: HIGH = VS – ≤ 1.5 V / LOW = 0 V; NPN: HIGH = approx. VS / LOW ≤ 1.5 V; Response time: ≤ 125 µs; Stability of response time: ± 15 µs; Dimensions (W x H x D): 10 mm x 50 mm x 59.5 mm; Connection type: Cable, 3-wire, 2 m; Enclosure rating: IP67; Housing material: Aluminum; Ambient operating temperature: –10 °C... +60 °C; Weight: Approx. 80 g... 190 g; Functional principle: Optical detection principle; Fork width: 30 mm

Weight

0.08 kg

Dimensions

10 x 50 x 59.5
