6037670

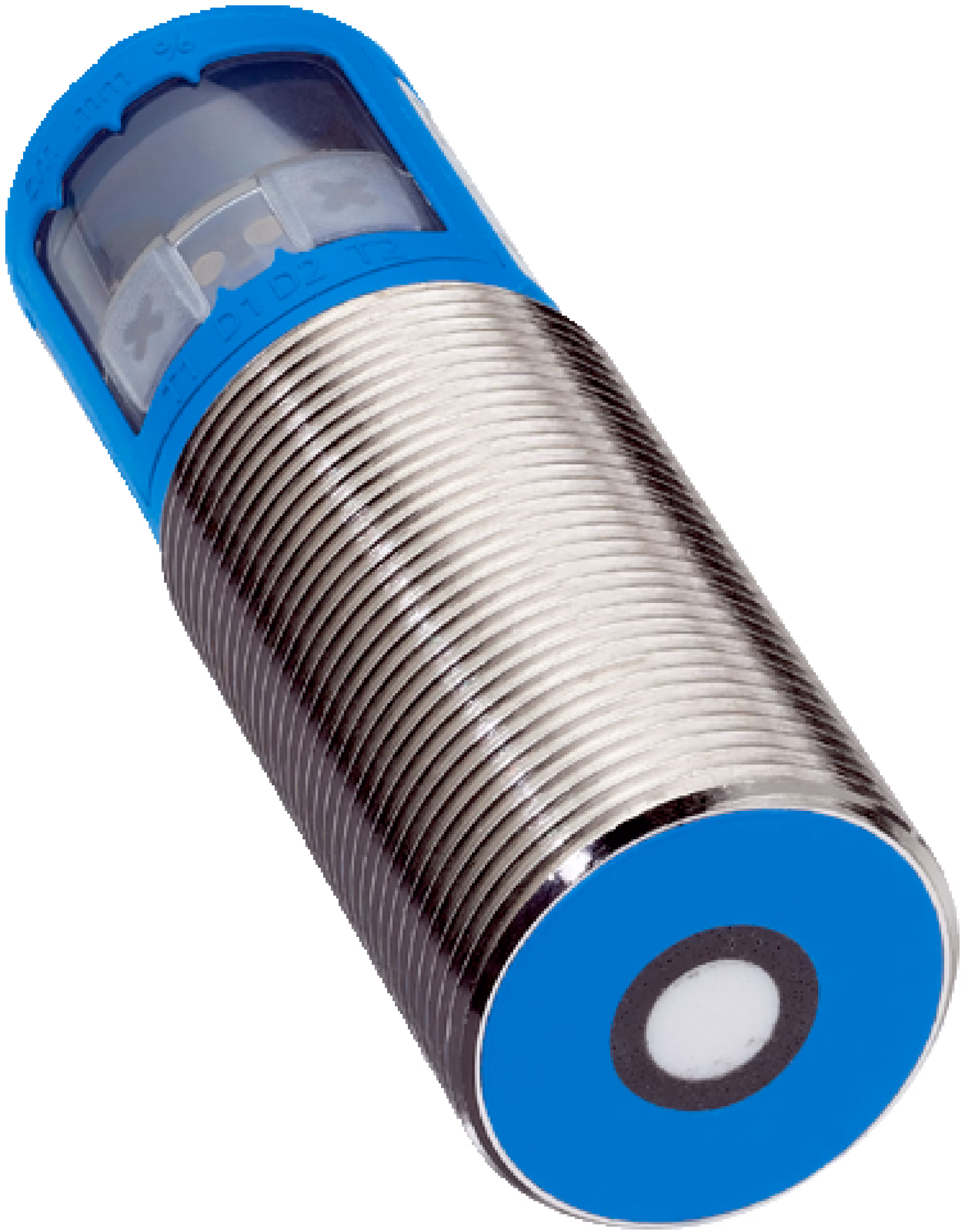

SICK 6037670 / UM30-212115 is an ultrasonic distance sensor in the UM30 family. Communication interface: -; Operating range, limiting range: 65 mm... 350 mm, 600 mm; Connection type: Male connector, M12, 5-pin; Sending axis: Straight; Response time: 64 ms; Digital output: 1 x NPN.

Manufacturer

Sick

Part number

6037670

Product family

UM30

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 65 mm... 350 mm, 600 mm; Resolution: ≥ 0.18 mm; Supply voltage UB: DC 9 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 64 ms; Dimensions (W x H x D): 30 mm x 30 mm x 84 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 / IP67; Housing material: Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 150 g; Target: Natural objects; Temperature compensation: ✔; Switching frequency: 12 Hz

Weight

0.15 kg

Dimensions

30 x 30 x 84
