6035498

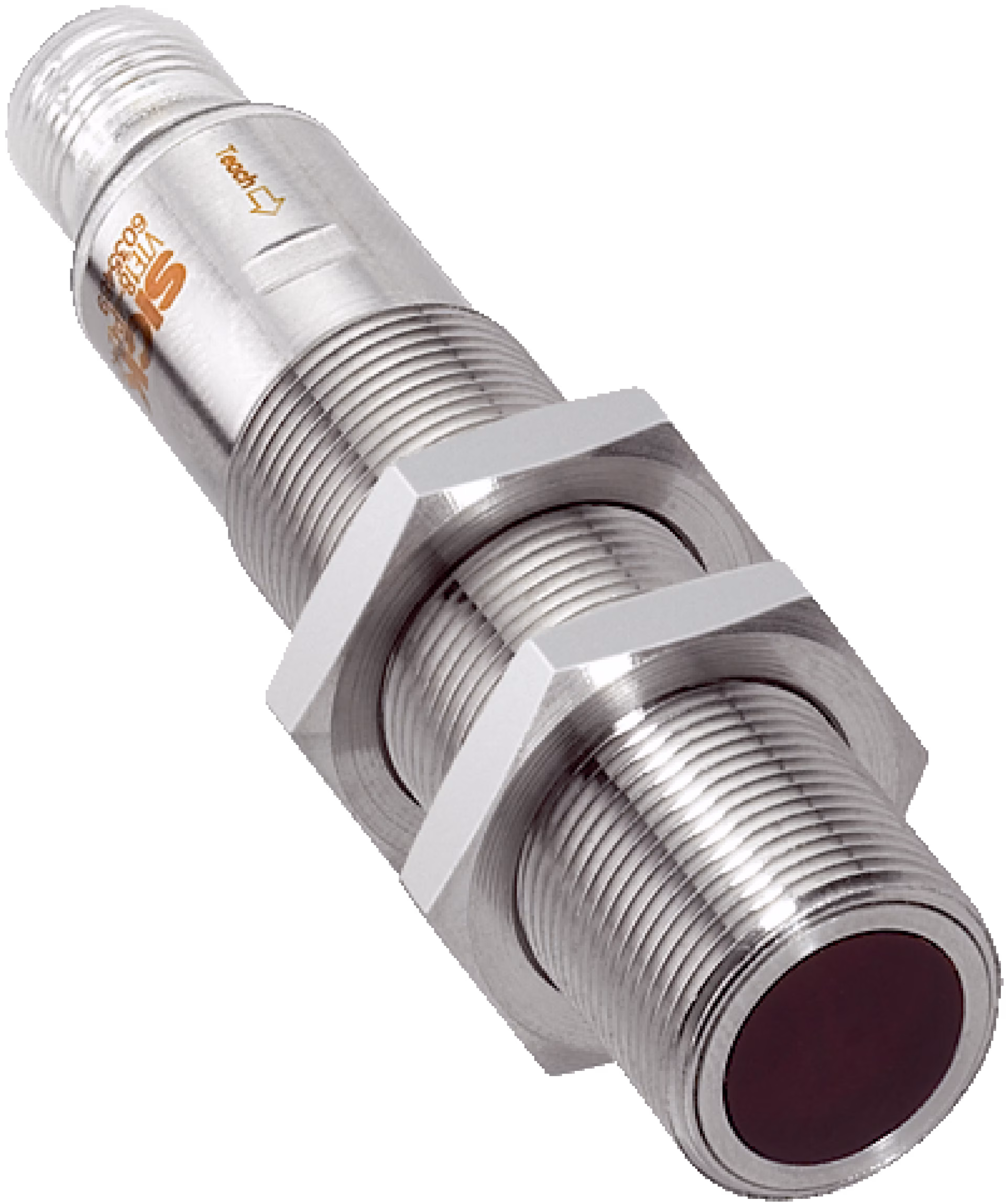

SICK 6035498 / VL18-4N2240V is an archive in the V18 family. Photoelectric sensors; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: NPN; Switching mode: Light/dark switching; Connection type: Male connector M12, 4-pin; Light source: LED; Adjustment: Teach-in button; Communication interface: -.

Manufacturer

Sick

Part number

6035498

Product family

V18

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0.035 m... 4.5 m; Sensing range: 0.035 m... 4 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: NPN; Response time: ≤ 1 ms; Dimensions (W x H x D): 18 mm x 18 mm x 83 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; IP68; IP69K; Housing material: Metal, Stainless steel V4A (1.4404, 316L); Ambient operating temperature: –25 °C... +80 °C; Weight: 120 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.12 kg

Dimensions

18 x 18 x 83
