6034874

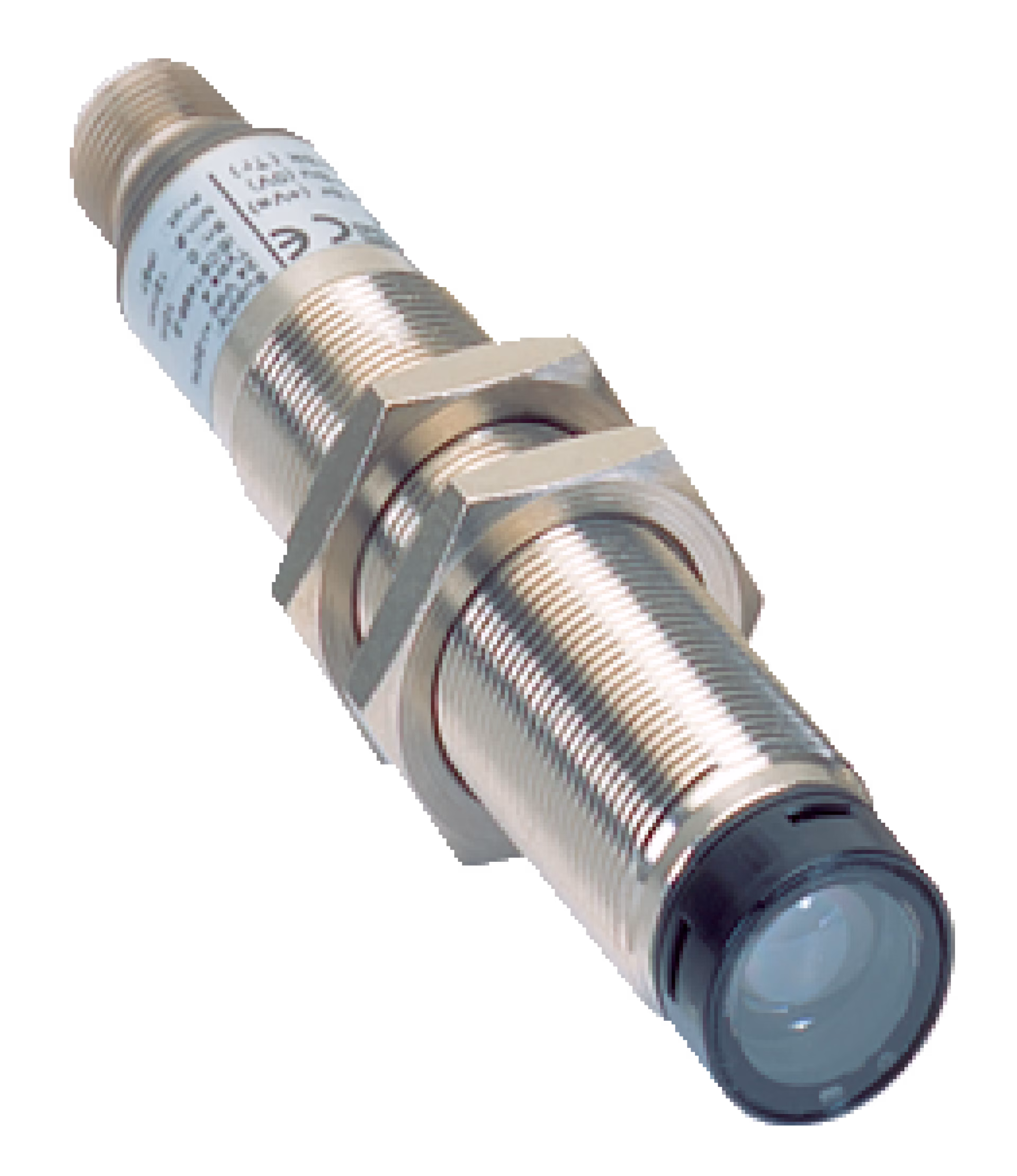

SICK 6034874 / L21S-21MA1A is a safety light-beam sensor in the L21 family. System part: Sender; Safety level: PL c, SIL 1, Type 2; Scanning range: 16 m; Diameter: M18; Light source: LED; Type of light: Visible red light; Optical axis: Axial; Housing material: Nickel-plated brass; Connection type: Male connector M12, 4-pin.

Manufacturer

Sick

Part number

6034874

Product family

L21

Category

Safety light-beam sensors

Technical details

Type of light: Visible red light; Number of beams: 1; Supply voltage VS: 24 V DC (19.2 V DC... 28.8 V DC); Response time: 0.2 ms; Dimensions (diameter x length): M18 x 97.7 mm; Connection type: Male connector M12, 4-pin, straight; Enclosure rating: IP67 (EN 60529); Housing material: Nickel-plated brass; Ambient operating temperature: –40 °C... +55 °C; Weight: 67 g; Light source: LED; Scanning range: 16 m; Optical axis: Axial; Type: Type 2 (IEC 61496-1)

Weight

0.067 kg

Dimensions

M18 x 97.7
