6034868

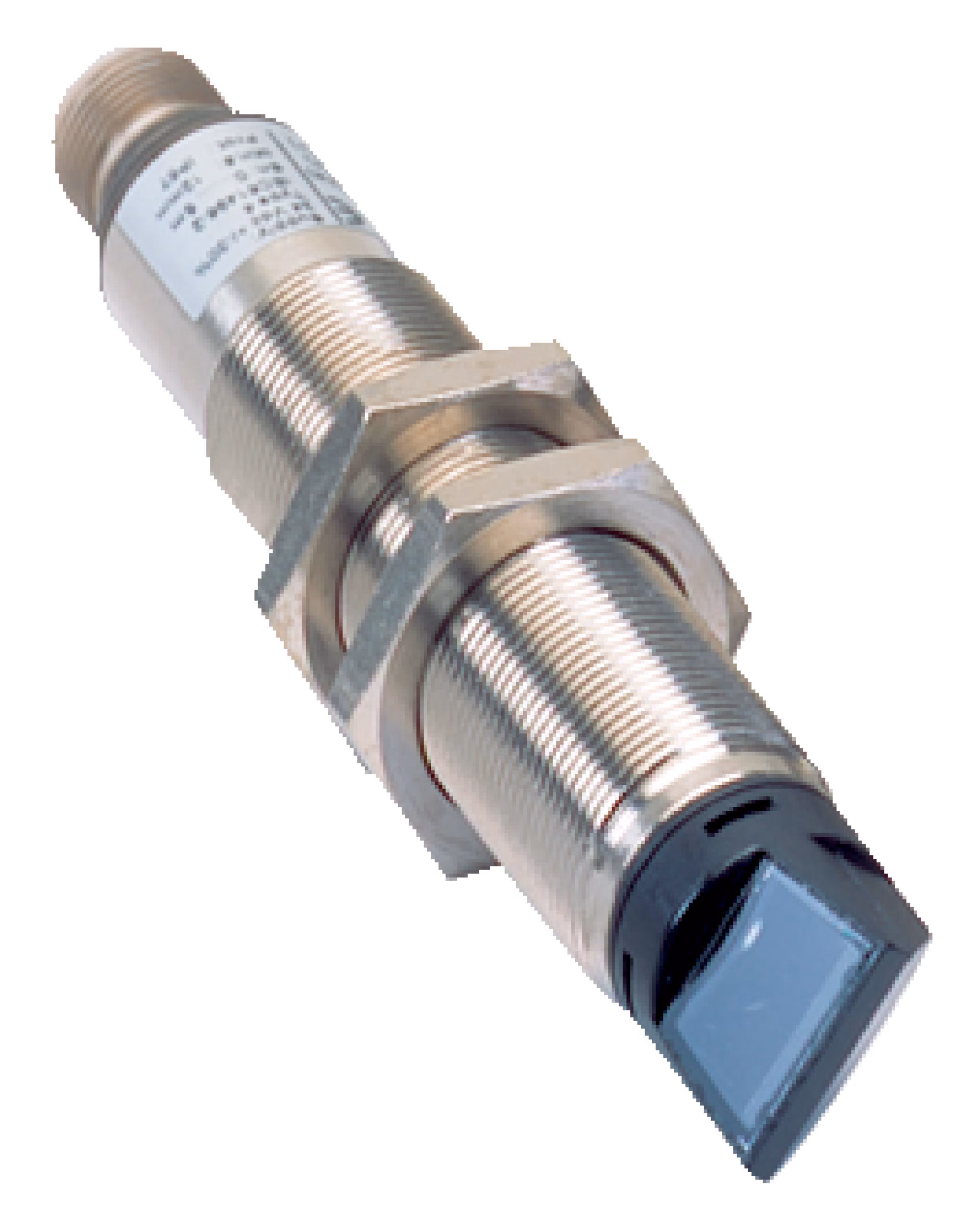

SICK 6034868 / L41S-11MA1A is a safety light-beam sensor in the L41 family. System part: Sender; Safety level: PL e, SIL 3, Type 4; Scanning range: 7 m; Diameter: M18; Light source: LED; Type of light: Visible red light; Optical axis: Radial; Housing material: Nickel-plated brass; Connection type: Male connector M12, 4-pin.

Manufacturer

Sick

Part number

6034868

Product family

L41

Category

Safety light-beam sensors

Technical details

Type of light: Visible red light; Number of beams: 1; Response time: 0.2 ms; Dimensions (diameter x length): M18 x 107.7 mm; Connection type: Male connector M12, 4-pin, straight; Enclosure rating: IP67 (EN 60529); Housing material: Nickel-plated brass; Ambient operating temperature: –40 °C... +55 °C; Weight: 67 g; Light source: LED; Scanning range: 7 m; Detection capability: 30 mm; Optical axis: Radial; Type: Type 4 (IEC 61496-1)

Weight

0.067 kg

Dimensions

M18 x 107.7
