6034330

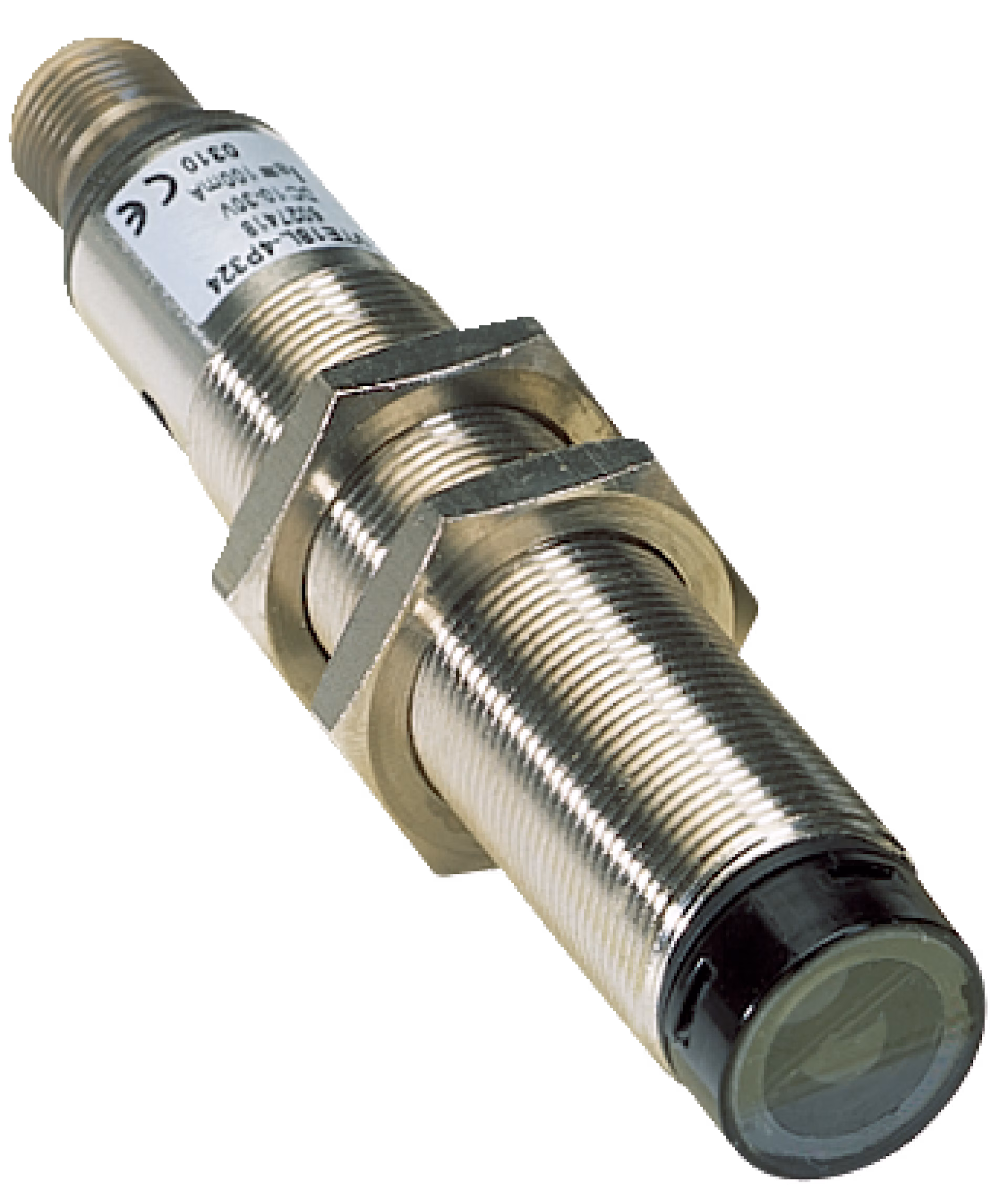

SICK 6034330 / VL18L-3F324 is a photoelectric sensor in the V18 family. Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: PNP; Switching mode: Light switching; Connection type: Male connector M12, 4-pin; Light source: Laser; Adjustment: Wire/pin, Teach-in button; Laser class: 1; Communication interface: -.

Manufacturer

Sick

Part number

6034330

Product family

V18

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0.1 m... 35 m; Sensing range: 0.1 m... 30 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 0.625 ms; Dimensions (W x H x D): 18 mm x 18 mm x 97.7 mm; Connection type: Male connector M12, 4-pin; Enclosure rating: IP67; Housing material: Metal, Nickel-plated brass/PC; Ambient operating temperature: –15 °C... +55 °C; Weight: 60 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.06 kg

Dimensions

18 x 18 x 97.7
