6032554

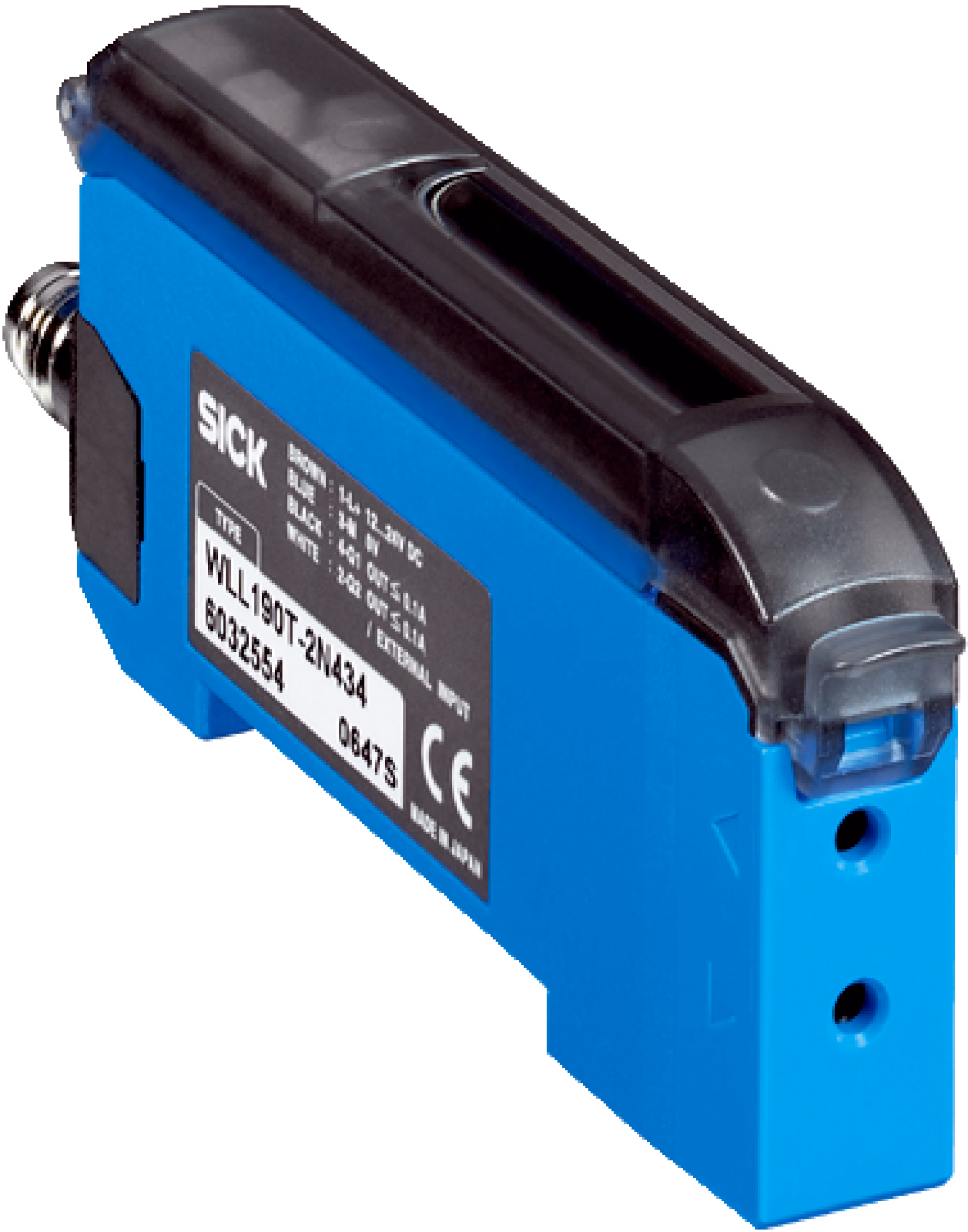

SICK 6032554 / WLL190T-2N434 is an archive in the WLL190 family. Fiber-optic sensors; Sensing range max.: 2... 4 m; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Enclosure rating: IP66; Adjustment: Menu-controlled, Teach-in button, cable.

Manufacturer

Sick

Part number

6032554

Product family

WLL190

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 4 m (Through-beam system); Sensing range: 0 mm... 480 mm, Proximity system; 0 m... 2 m, Through-beam system; Supply voltage UB: 10 V DC... 24 V DC; Switching output: NPN; Response time: ≤ 2 ms, ≤ 60 µs, ≤ 250 µs; Dimensions (W x H x D): 10.5 mm x 34.8 mm x 76.5 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP66; Housing material: Plastic, ABS/PC; Ambient operating temperature: –25 °C... +55 °C; Weight: 25 g; Device type: Fiber-optic amplifier; Device type detail: Stand-alone

Weight

0.025 kg

Dimensions

10.5 x 34.8 x 76.5
