6032469

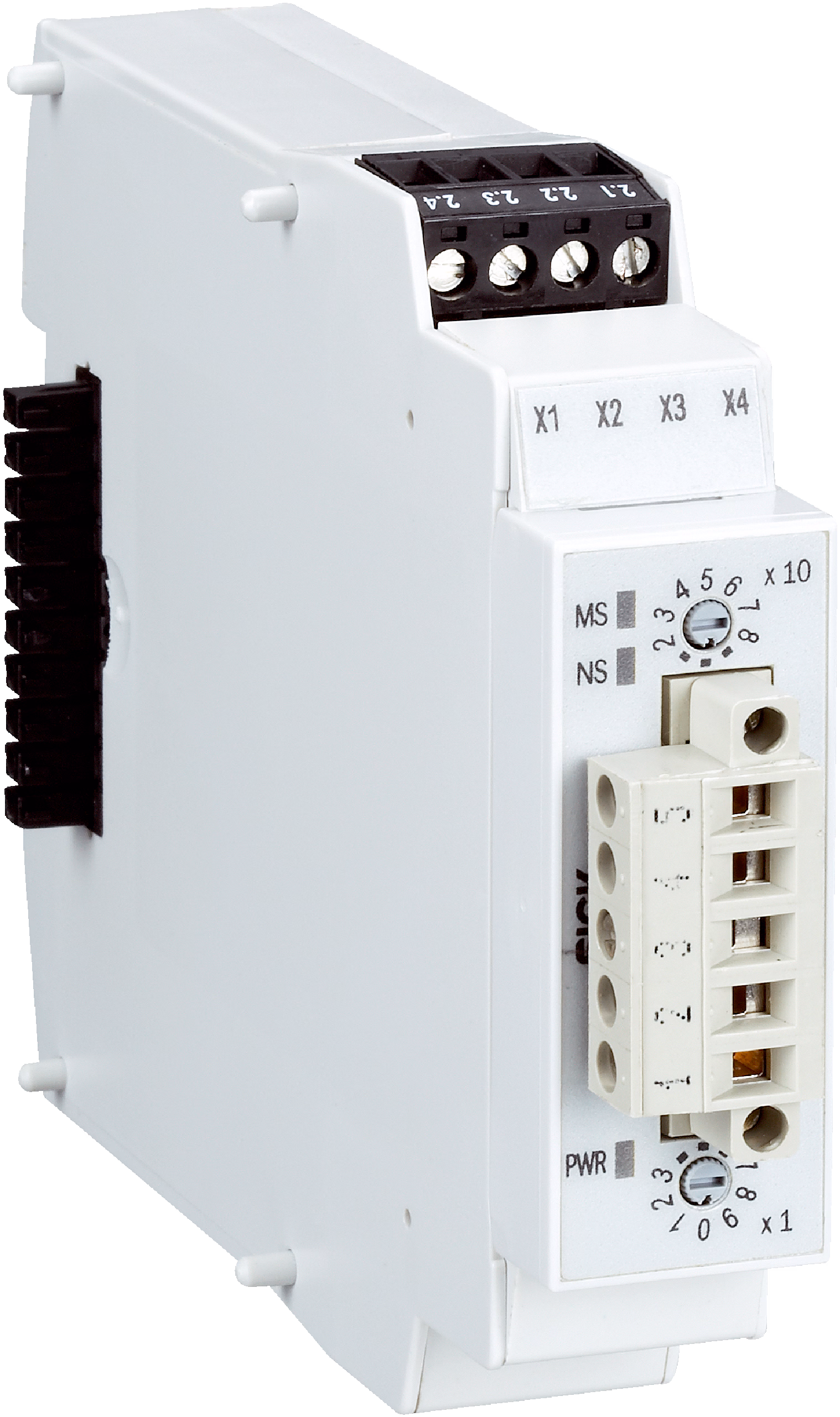

SICK 6032469 / UE410-DEV3 is an archive in the Flexi Classic family. Safety controllers; Module: Gateway; Specialization: Fieldbus integration; Fieldbus, industrial network: DeviceNet™; Connection type: 1 x female connector, Open Style, 5-pin; Number of application diagnostic outputs: 4; Application diagnostic output connection type8: Plug-in screw-type terminals; Protective coating for more challenging ambient conditions: no.

Manufacturer

Sick

Part number

6032469

Product family

Flexi Classic

Category

Archive

Technical details

Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.8 mm; Connection type: 1 x female connector, Open Style, 5-pin; Application diagnostic output connection type8: Plug-in screw-type terminals; Enclosure rating: Housing IP40 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: + 160 g; Module: Gateway; Fieldbus, industrial network: DeviceNet™; Configuration method: Via rotary switch; Data transmission rate: 500 kbit/s; Application diagnostic outputs: 4 (X1 – X4); Display elements: LEDs; Voltage supply: Via FLEXBUS; Power consumption: ≤ 1.6 W (DC)

Weight

0.16 kg

Dimensions

22.5 x 96.5 x 120.8

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
