6030716

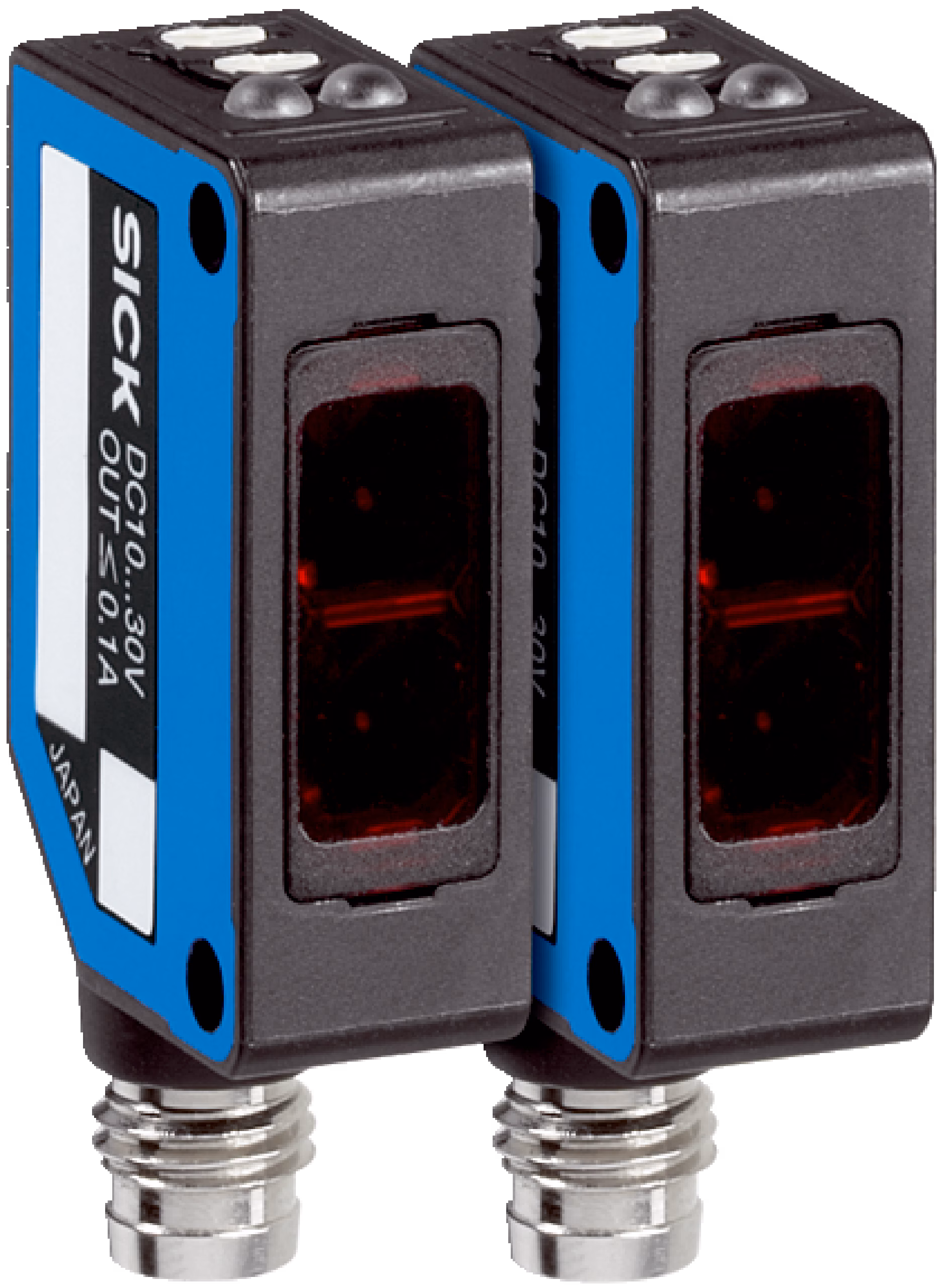

SICK 6030716 / WS/WE100L-F2231 is a photoelectric sensor in the W100 Laser family. Functional principle: Through-beam photoelectric sensor; Switching output: PNP; Switching mode: Light/dark switching; Connection type: Male connector M8, 4-pin; Light source: Laser; Adjustment: Potentiometer; Laser class: 1; Communication interface: -; Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A.

Manufacturer

Sick

Part number

6030716

Product family

W100 Laser

Category

Photoelectric sensors

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 35 m; Sensing range: 0 m... 30 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: < 0.25 ms; Dimensions (W x H x D): 11 mm x 31 mm x 20 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP65; Housing material: Plastic, ABS/PC; Ambient operating temperature: –10 °C... +50 °C; Weight: 10 g; Functional principle: Through-beam photoelectric sensor; Housing design (light emission): Rectangular

Weight

0.01 kg

Dimensions

11 x 31 x 20

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
