6028626

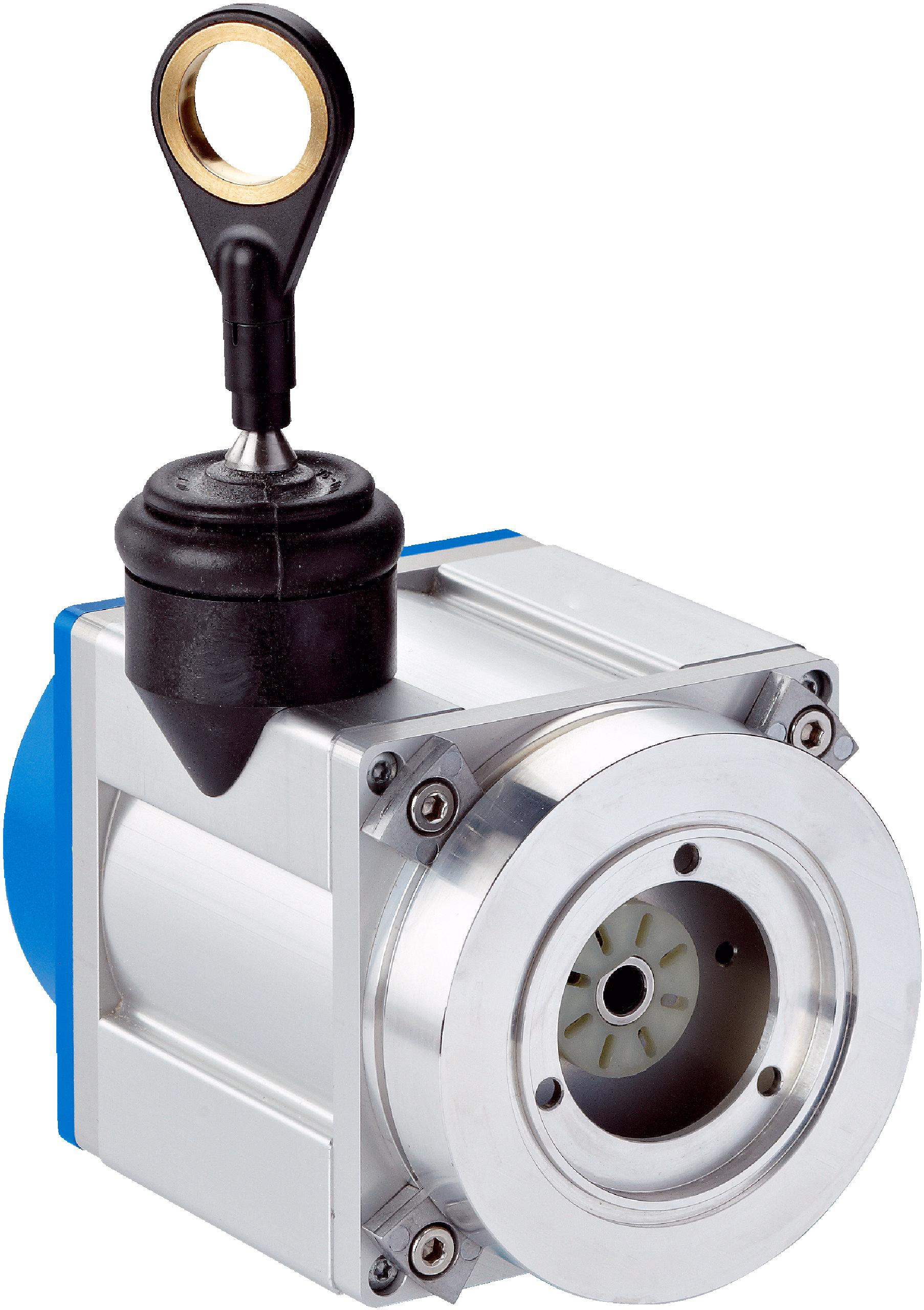

SICK 6028626 / MRA-F130-105D2 is a wire draw mechanism in the Wire draw mechanism for wire draw encoders family. Product segment: Wire draw mechanism; Product: Wire draw mechanism for wire draw encoders; Description: HighLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m... 5 m; Items supplied: Without encoder.

Manufacturer

Sick

Part number

6028626

Product family

Wire draw mechanism for wire draw encoders

Category

Wire draw mechanism

Technical details

Measurement range: 0 m 5 m; Resolution: To calculate the resolution of the system please use following formula:length of wire draw per revolution / steps per revolution = resolution of the combination of wire draw + encoder; Enclosure rating mechanic: IP64; Housing material, wire draw mechanism: Aluminum (anodised), plastic; Ambient operating temperature: –30 °C... +70 °C; Weight: 2.8 kg; 2.8 kg Wire draw mechanism; Product segment: Wire draw mechanism; Product: Wire draw mechanism for wire draw encoders; Description: HighLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m... 5 m; Items supplied: Without encoder; Included in delivery: Mounting kit for servo flange encoder (Ø 60 mm); Reproducibility: ≤ 1 mm; Linearity: ≤ ± 2 mm; Hysteresis: ≤ 2 mm

Weight

2.8 kg
