6028462

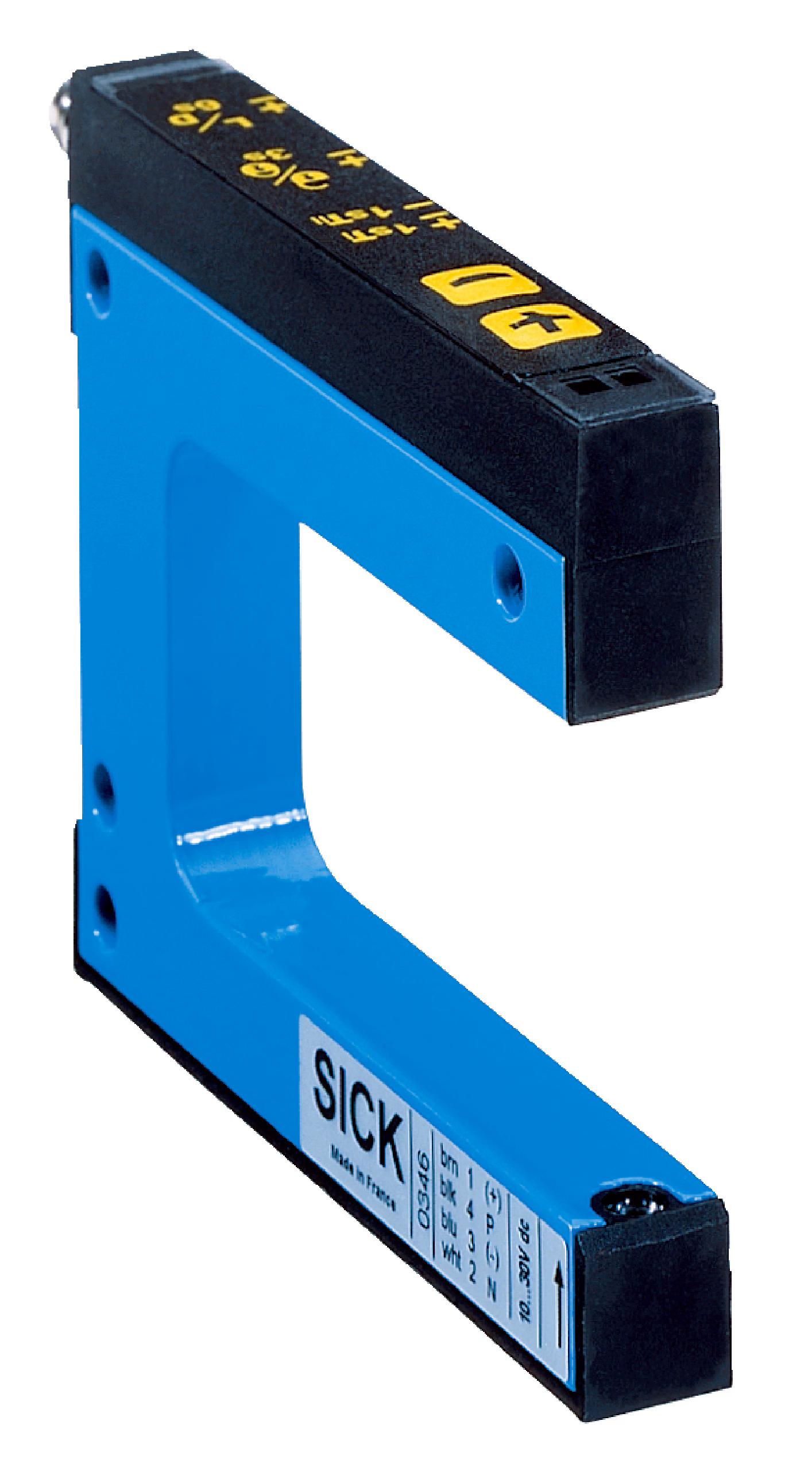

SICK 6028462 / WF80-60B416 is a fork sensor in the WF family. Adjustment: Plus/minus button; Light source: LED; Fork width/depth: 80 mm, 59 mm; Switching output: PNP/NPN; Switching mode: Light/dark switching; Connection type Detail: Male connector M8, 4-pin; Switching frequency: 10 kHz; Response time: ≤ 100 µs; Enclosure rating: IP65.

Manufacturer

Sick

Part number

6028462

Product family

WF

Category

Fork sensors

Technical details

Minimum detectable object (MDO): 0.2 mm; Supply voltage: 10 V DC... 30 V DC; Switching output: PNP/NPN; Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V; NPN: HIGH = approx. UV / LOW ≤ 2 V; Response time: ≤ 100 µs; Stability of response time: ± 20 µs; Dimensions (W x H x D): 10 mm x 110 mm x 74 mm; Connection type: Male connector M8, 4-pin; Enclosure rating: IP65; Housing material: Aluminum; Ambient operating temperature: –20 °C... +60 °C; Weight: Approx. 36 g... 160 g; Functional principle: Optical detection principle; Fork width: 80 mm

Weight

0.036 kg

Dimensions

10 x 110 x 74
