6027340

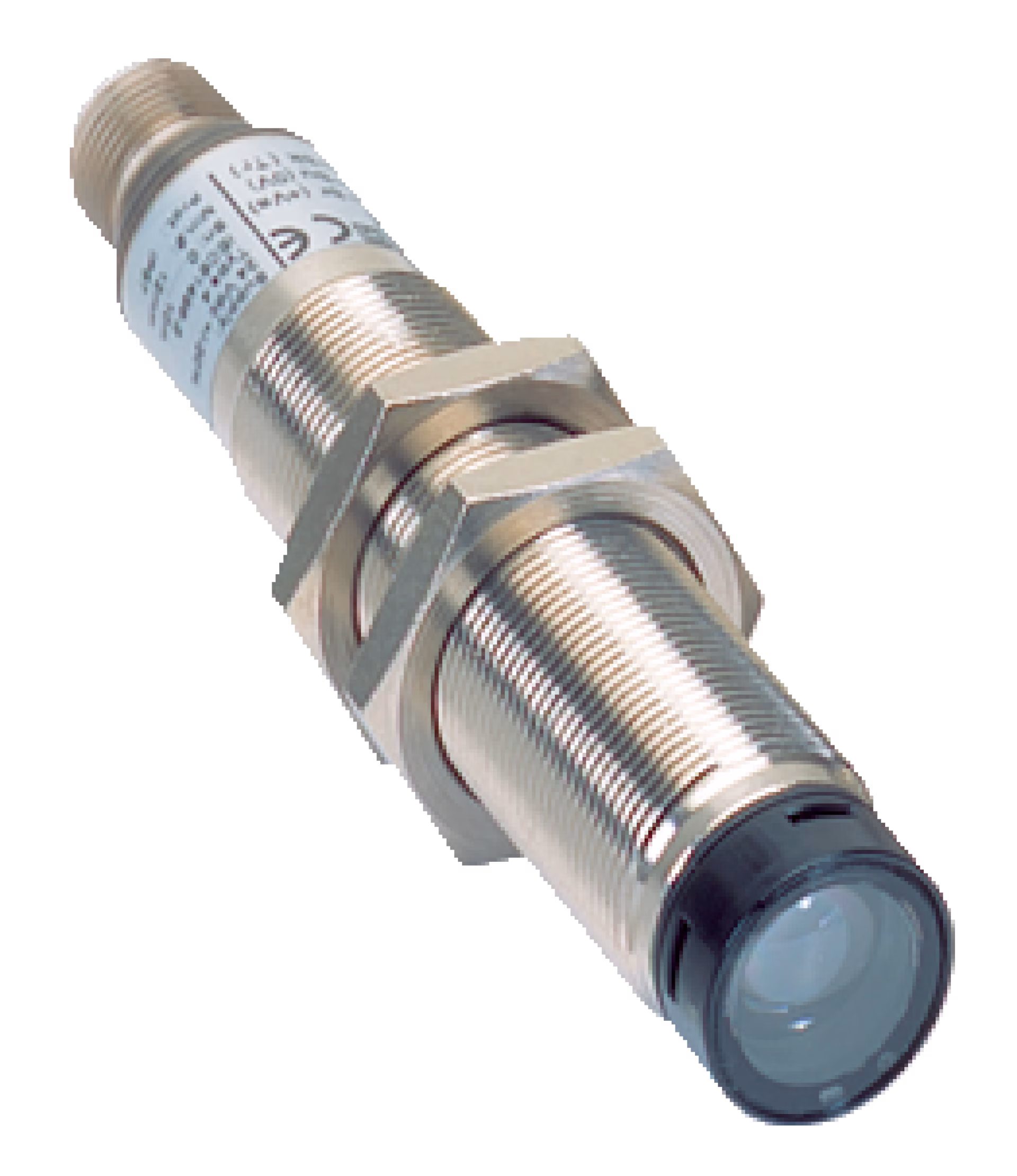

SICK 6027340 / L40E-21MA1A is a safety light-beam sensor in the L4000 Systems family. System part: Receiver; Safety level: PL e, SIL 3, Type 4; Scanning range: 16 m; Diameter: M18; Optical axis: Axial; Housing material: Nickel-plated brass; Connection type: Male connector M12, 4-pin.

Manufacturer

Sick

Part number

6027340

Product family

L4000 Systems

Category

Safety light-beam sensors

Technical details

Number of beams: 1; Supply voltage VS: 24 V DC (19.2 V DC... 28.8 V DC); Response time: 0.4 ms; Dimensions (diameter x length): M18 x 97.7 mm; Connection type: Male connector M12, 4-pin, straight; Enclosure rating: IP67 (EN 60529); Housing material: Nickel-plated brass; Ambient operating temperature: –20 °C... +55 °C; Weight: 67 g; Scanning range: 16 m; Detection capability: 30 mm; Optical axis: Axial; Type: Type 4 (IEC 61496-1); Safety integrity level: SIL 3 (IEC 61508)

Weight

0.067 kg

Dimensions

M18 x 97.7
