6021125

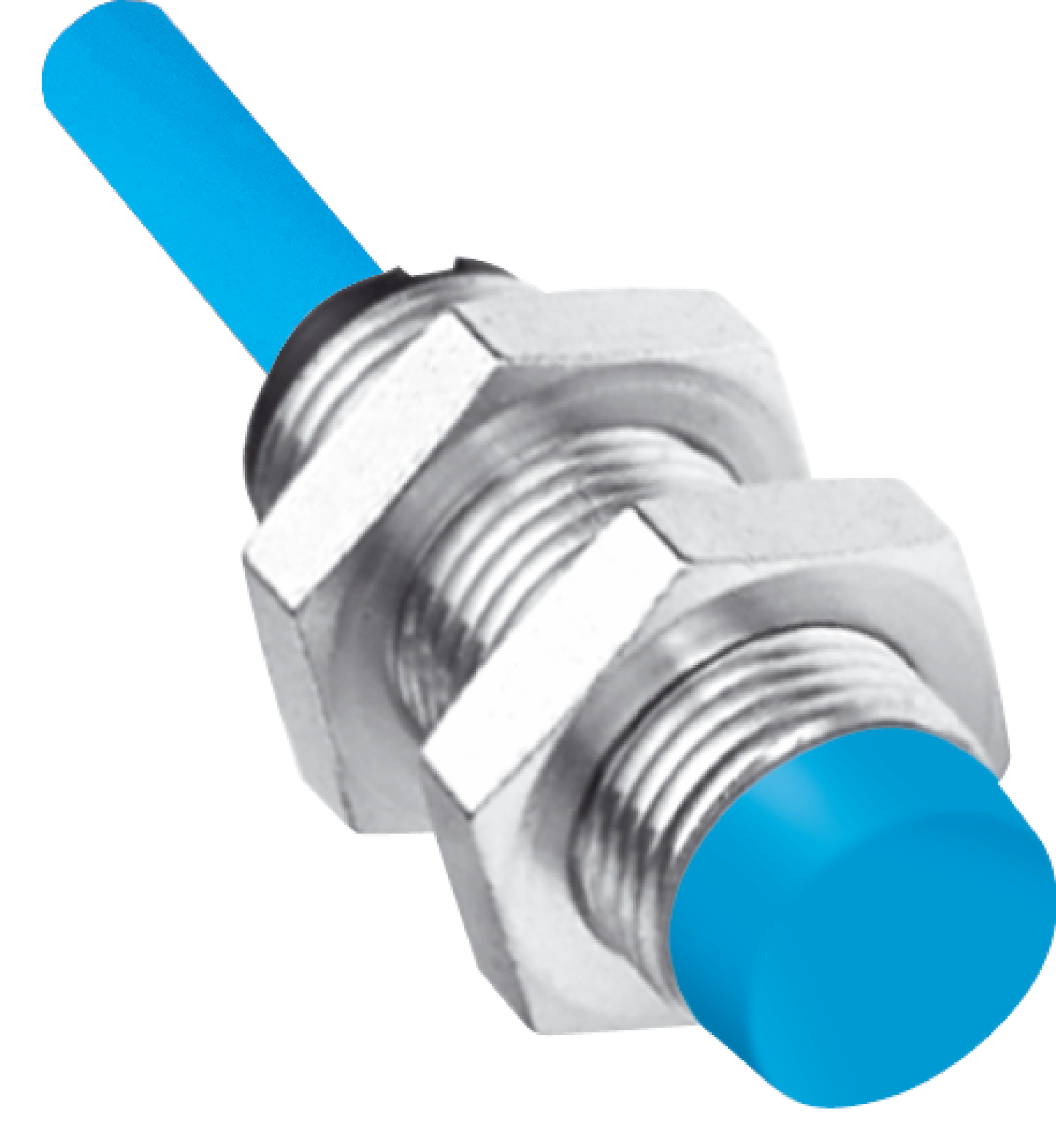

SICK 6021125 / IM12-04N-N-ZW0 is an inductive proximity sensor in the IMN family. Special applications: Explosive areas; Sensing range Sn: 4 mm; Installation type: Non-flush; Switching output: NAMUR; Output function: NC; Connection type: Cable, 2-wire, 2 m; Info: II 1G Ex ia IIC T6 Ga Ta –20 °C... +70 °C PTB 03 ATEX 2037 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and associated product data, such as part number, datcode, serial number); Special features: ATEX.

Manufacturer

Sick

Part number

6021125

Product family

IMN

Category

Inductive proximity sensors

Technical details

Sensing range Sn: 4 mm; Safe sensing range Sa: 3.24 mm; Supply voltage: 7.5 V DC... 25 V DC; Switching output: NAMUR; Switching output detail: NAMUR; Connection type: Cable, 2-wire, 2 m; Enclosure rating: IP67; Housing material: Brass, nickel-plated; Ambient operating temperature: –20 °C... +70 °C; Weight: + 127 g; Housing: Metric; Thread size: M12 x 1; Diameter: Ø 12 mm; Installation type: Non-flush

Weight

0.127 kg
