6020774

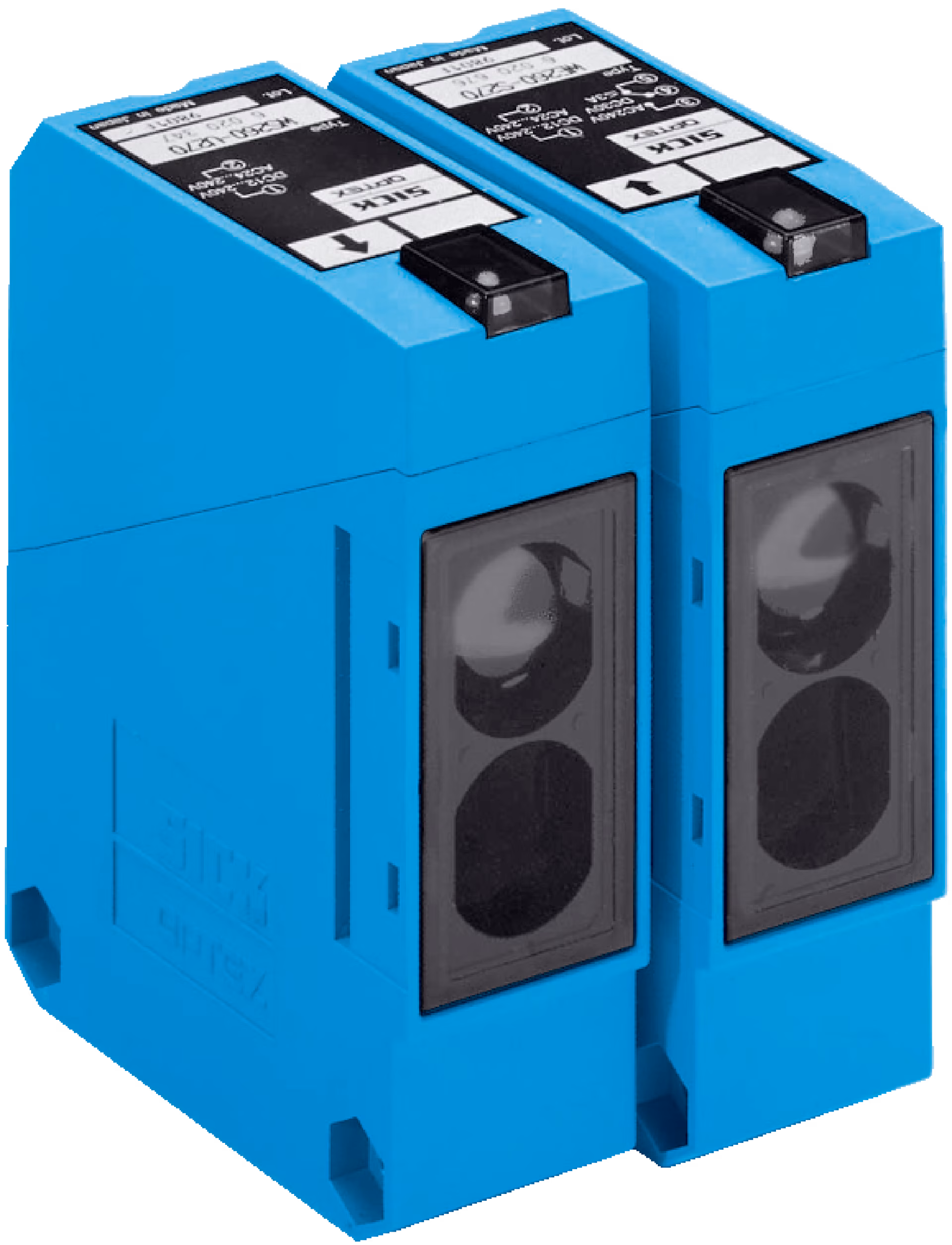

SICK 6020774 / WS/WE260-R270 is an archive in the W260 family. Compact photoelectric sensors; Functional principle: Through-beam photoelectric sensor; Switching output: Relay; Switching mode: Light switching; Connection type: Cable gland; Light source: LED; Adjustment: Potentiometer; Communication interface: -; Included with delivery: Mounting bracket BEF-W260.

Manufacturer

Sick

Part number

6020774

Product family

W260

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 45 m; Sensing range: 0 m... 40 m; Supply voltage: 12 V DC... 240 V DC; 24 V AC... 240 V AC; Switching output: Relay, electrically isolated; Response time: ≤ 20 ms; Dimensions (W x H x D): 25 mm x 78 mm x 63 mm; Connection type: Cable gland; Enclosure rating: IP67; Housing material: Plastic, ABS; Ambient operating temperature: –25 °C... +55 °C; Weight: 120 g; Functional principle: Through-beam photoelectric sensor; Housing design (light emission): Rectangular

Weight

0.12 kg

Dimensions

25 x 78 x 63
