6020064

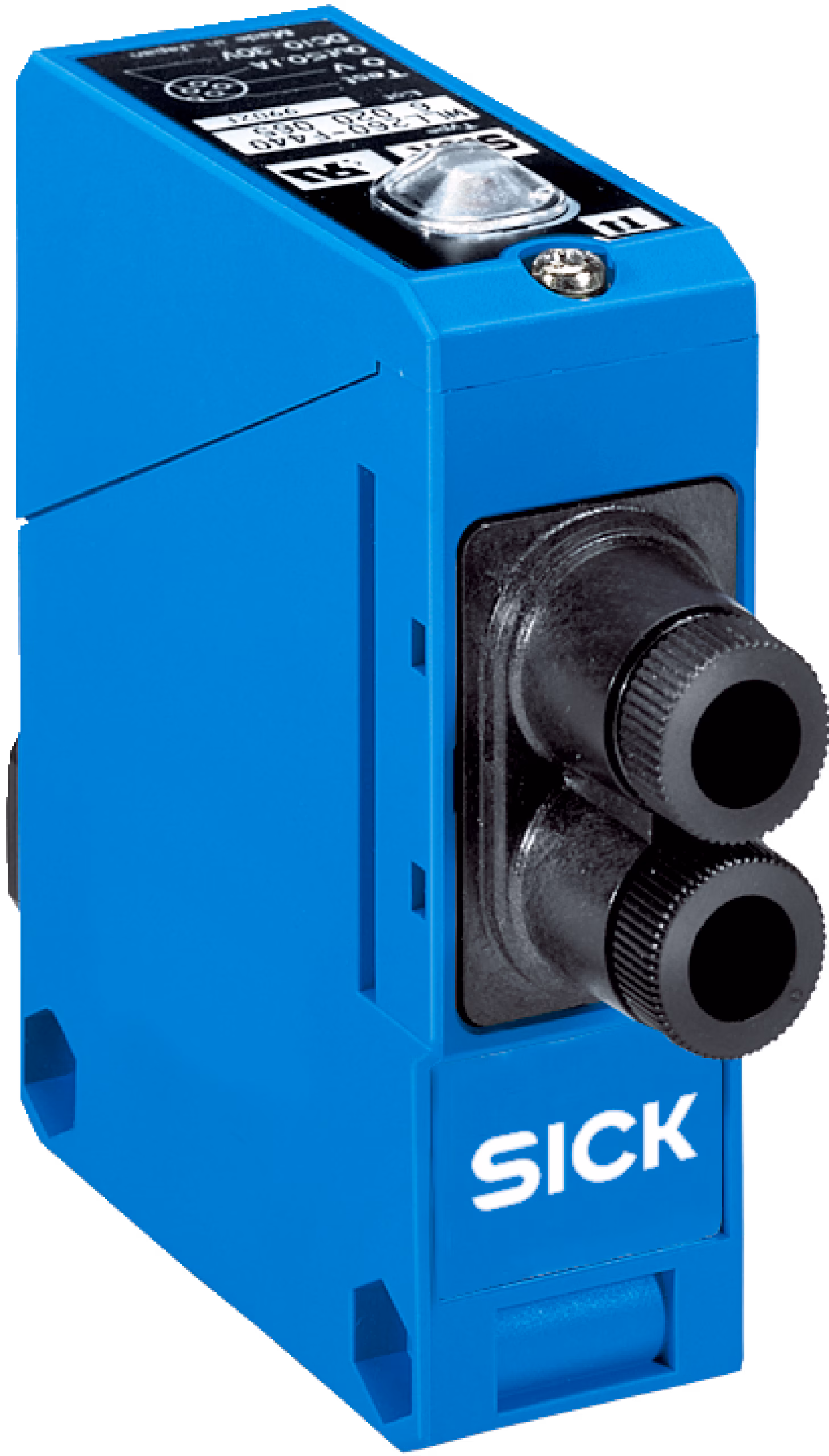

SICK 6020064 / WLL260-F240 is an archive in the WLL260 family. Fiber-optic sensors; Sensing range max.: 0... 150 mm; Switching mode: Light/dark switching; Connection type: Cable gland; Enclosure rating: IP66; Adjustment: Potentiometer.

Manufacturer

Sick

Part number

6020064

Product family

WLL260

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 mm... 65 mm (Proximity system); 0 mm... 110 mm (Proximity system); 0 mm... 800 mm (Through-beam system); Sensing range: 0 mm... 50 mm, Proximity system; 0 mm... 90 mm, Proximity system; 0 mm... 700 mm, Through-beam system; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 0.7 ms; Dimensions (W x H x D): 25 mm x 77.8 mm x 63 mm; Connection type: Cable gland; Enclosure rating: IP66; Housing material: Plastic, ABS; Ambient operating temperature: –25 °C... +55 °C; Weight: 120 g; Device type: Fiber-optic amplifier; Device type detail: Stand-alone

Weight

0.12 kg

Dimensions

25 x 77.8 x 63
