6011036

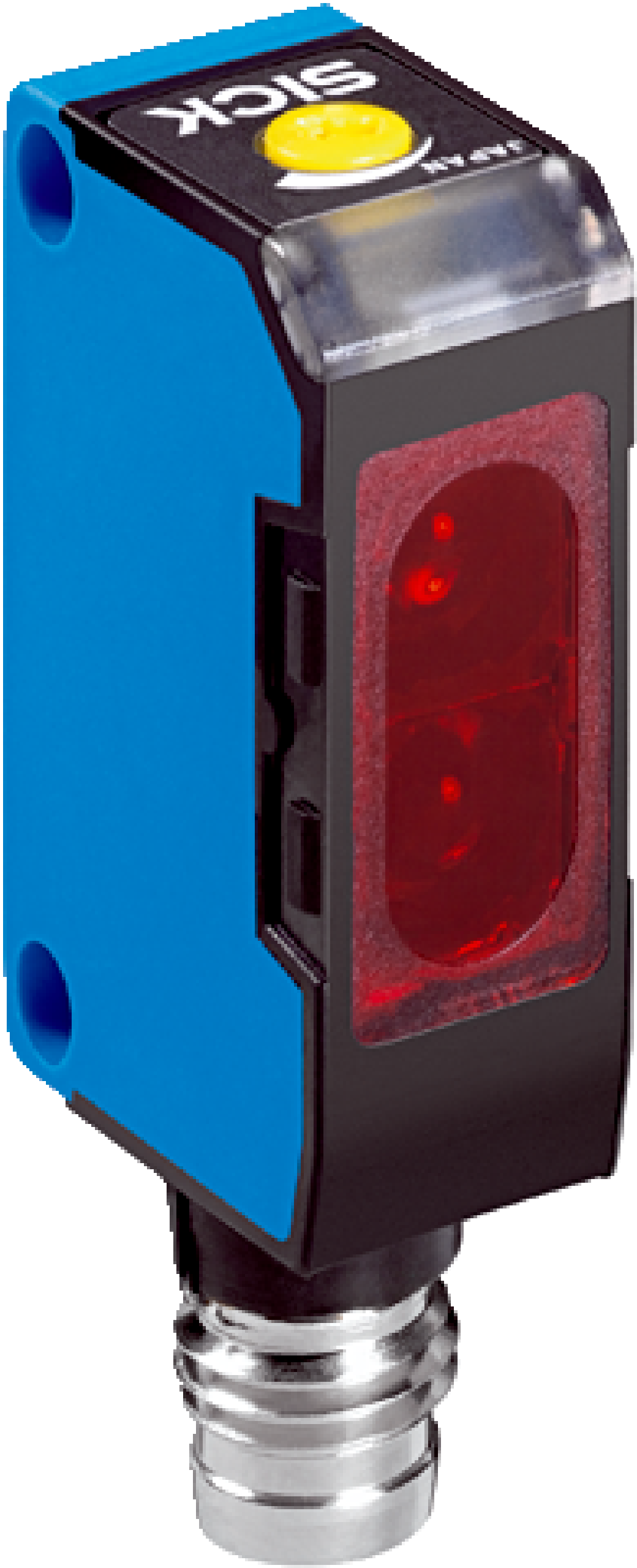

SICK 6011036 / WL150-P132 is an archive in the W150 family. Photoelectric sensors; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system); Switching output: PNP; Switching mode: Light/dark switching; Connection type: Cable, 4-wire, 2 m; Light source: LED; Adjustment: Potentiometer; Communication interface: -; Included with delivery: BEF-W150-A mounting bracket, Reflector PL20A.

Manufacturer

Sick

Part number

6011036

Product family

W150

Category

Archive

Technical details

Type of light: Visible red light; Sensing range max.: 0 m... 2.4 m; Sensing range: 0.01 m... 2 m; Supply voltage UB: 10 V DC... 30 V DC; Switching output: PNP; Response time: ≤ 0.5 ms; Dimensions (W x H x D): 10 mm x 28 mm x 17.5 mm; Connection type: Cable, 4-wire, 2 m; Enclosure rating: IP67; Housing material: Plastic, ABS; Ambient operating temperature: –25 °C... +55 °C; Weight: 44 g; Functional principle: Photoelectric retro-reflective sensor; Functional principle detail: With minimum distance to reflector (dual lens system)

Weight

0.044 kg

Dimensions

10 x 28 x 17.5
