59607

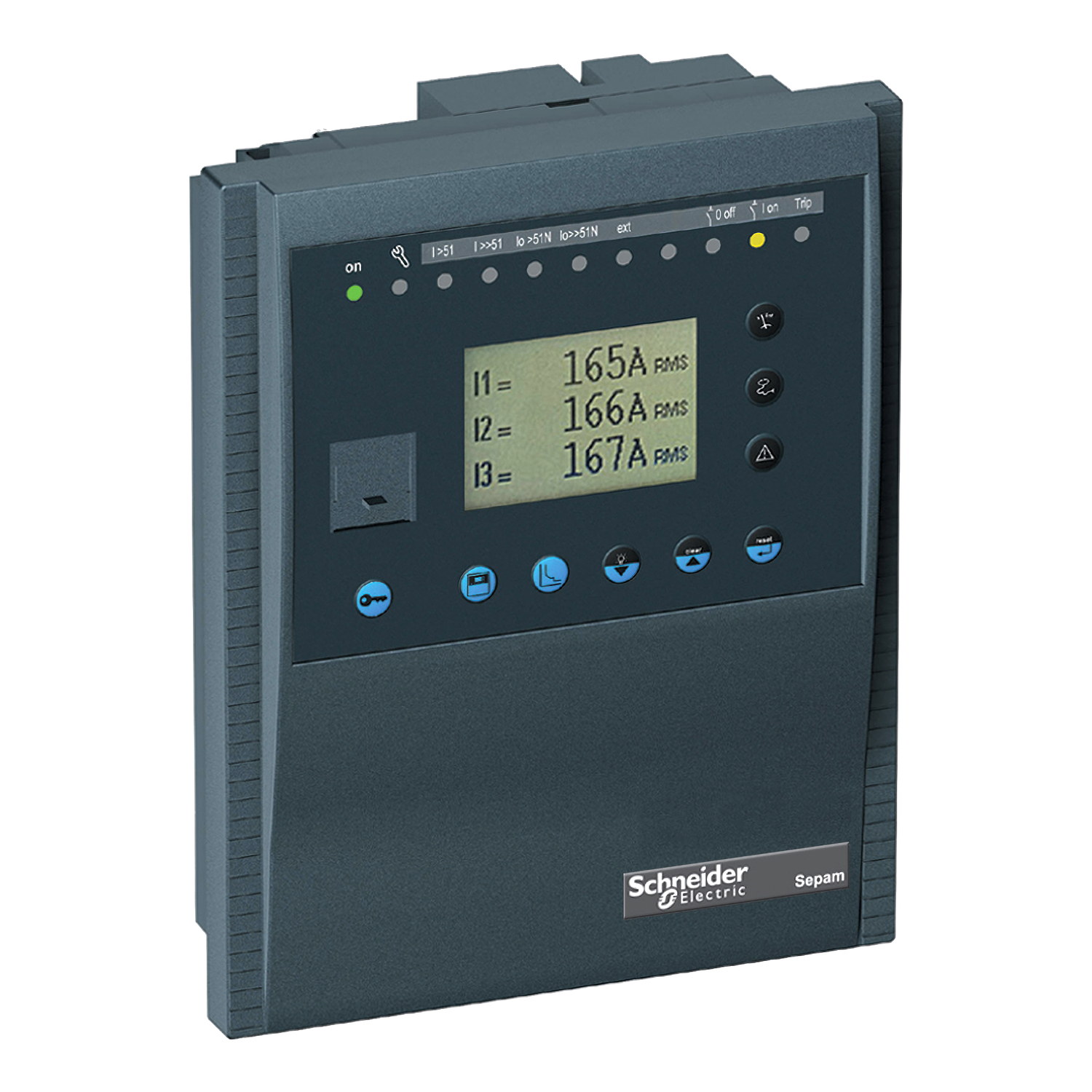

Schneider Electric 59607 is a base unit S10UD for Sepam series 20 - 24…250 V - with advanced UMI. Sepam Series 20 is a protection relay range designed for standard distribution system applications. It provides 7 types of digital current or voltage protection for standard distribution systems, each one dedicated to a single application.

Manufacturer

Schneider Electric

Part number

59607

Product family

59607

Category

Industrial Electrical Component

Technical details

Sepam Series 20 is a protection relay range designed for standard distribution system applications; The Base unit S10UD with advanced UMI is for Sepam series 20; It include 2 LEDs for sepam operating status on front face and 9 LEDs for indication of parameters on front face; Rated supply voltage range from 110 VAC to 240 VAC and from 24 VDC to 250 VDC; And received the C22.2 file N° 210625, UL 508 file N° 212533, and CE certifications; Mechanical dimensions are 222 mm in height, 176 mm in width and 129 mm in depth; The degree of protection is IP52 on the front panel and IP20 on other parts
