56135

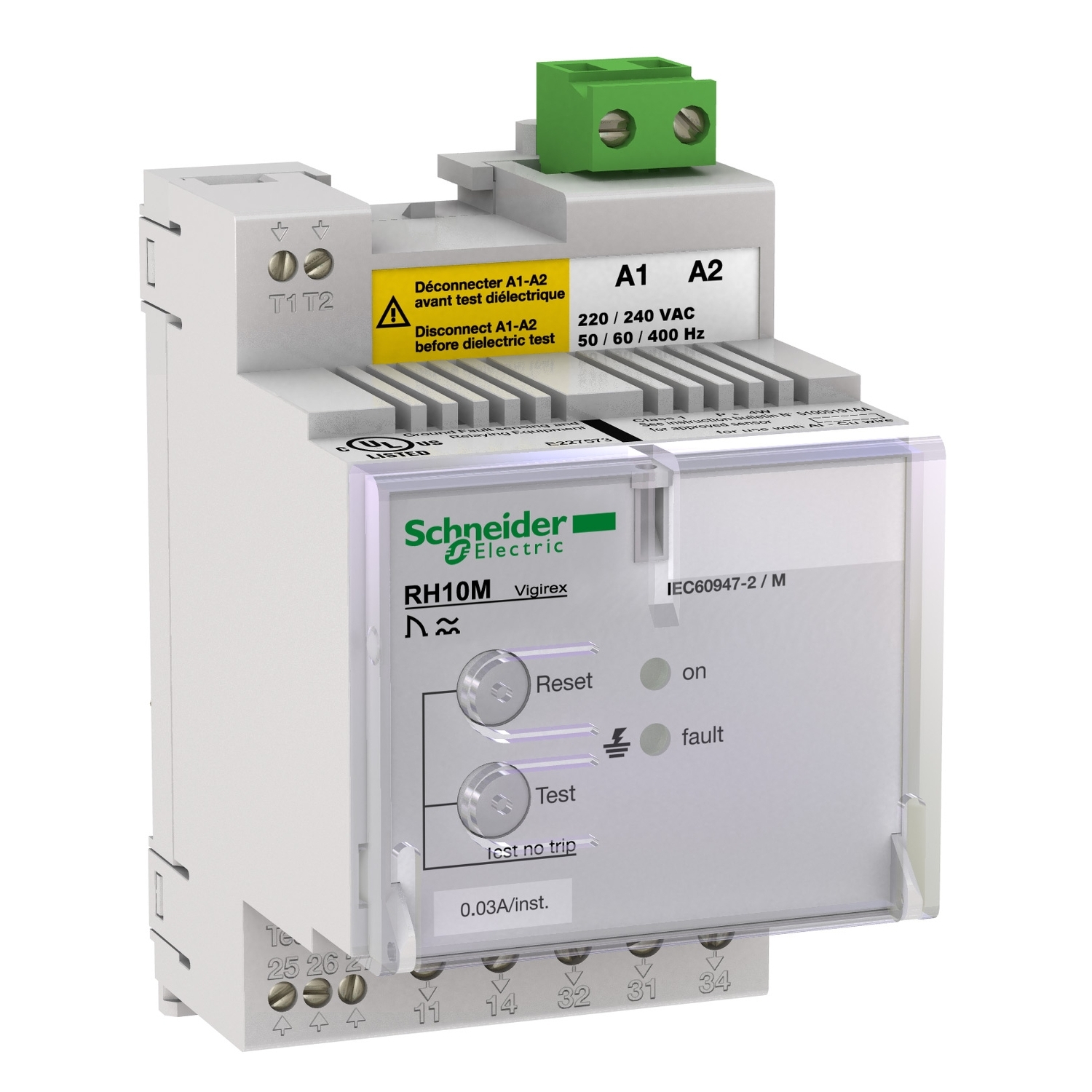

Schneider Electric 56135 is a residual current protection relay, VigiPacT RH10M, 300 mA, 220/240VAC 50/60Hz, DIN rail mounting. VigiPacT RH10M is a DIN rail mounting residual current protection relay. "It protects against people direct or indirect contact, property fire hazards and motors. "It measures the earth leakage current in an electrical installation via its associated toroid. "It trips the associated circuit breaker when the set residual operation current is overrun. "The operational supply voltage is 220/240VAC 50/60Hz. "It is a type A earth-leakage protection class. "The current sensitivity (IDn) is…

Manufacturer

Schneider Electric

Part number

56135

Product family

56135

Category

Relays and Accessories

Technical details

VigiPacT RH10M; 300 mA; 220/240VAC 50/60Hz; VigiPacT RH10M is a DIN rail mounting residual current protection relay. "It protects against people direct or indirect contact, property fire hazards and motors. "It measures the earth leakage current in an electrical installation via its associated toroid. "It trips the associated circuit breaker when the set residual operation current is overrun. "The operational supply voltage is 220/240VAC 50/60Hz. "It is a type A earth-leakage protection class. "The current sensitivity (IDn) is fixed to 300mA. "The time delay (Dt) is instantaneous. "It requires a local manual reset after a fault clearance. "The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. "It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. "It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor
