5326703

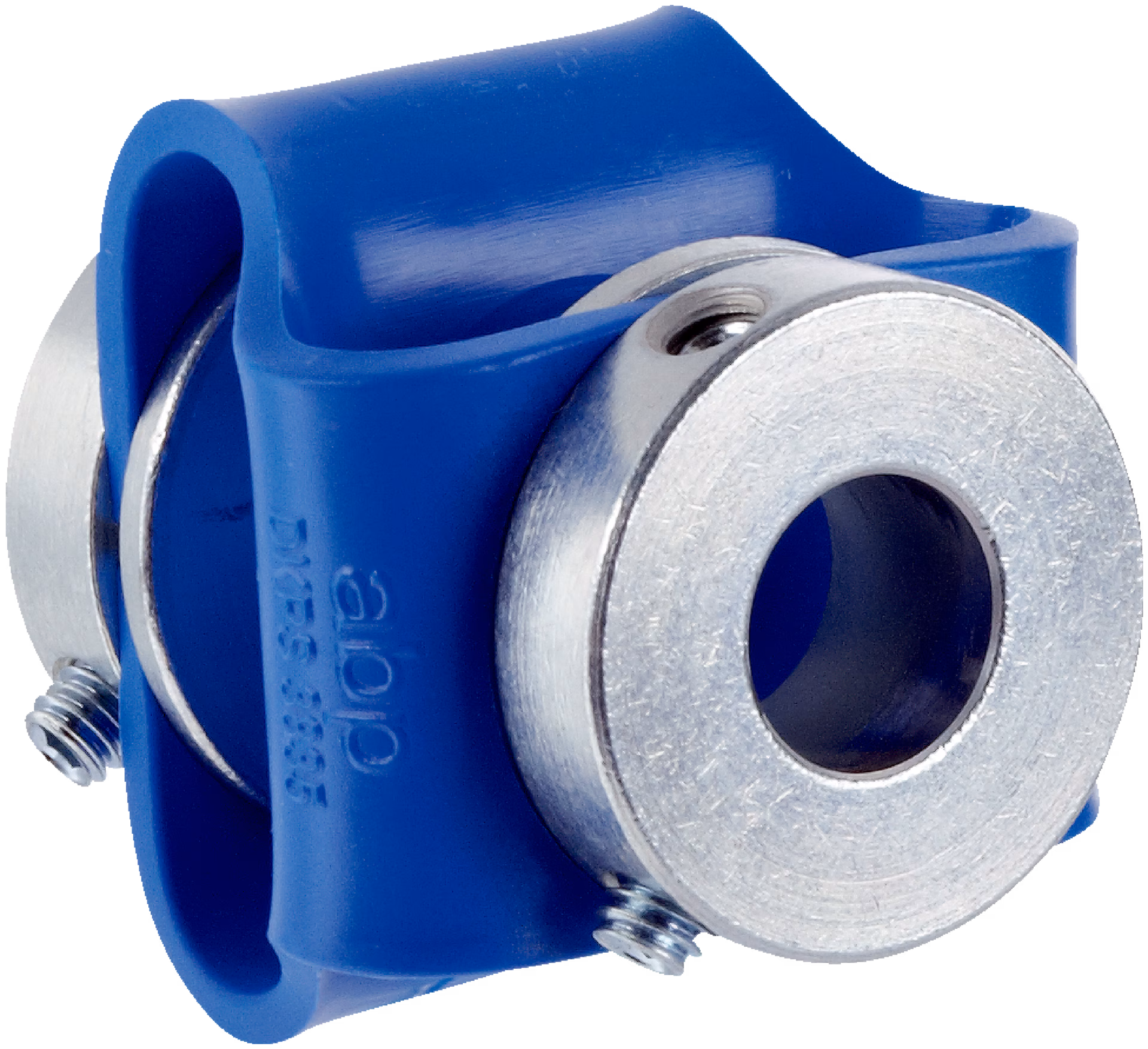

SICK 5326703 / KUP-1010-D is a shaft adaptation in the Shaft couplings family. Product segment: Shaft adaptation; Product: Shaft couplings; Description: Double loop coupling, shaft diameter 10 mm / 10 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange.

Manufacturer

Sick

Part number

5326703

Product family

Shaft couplings

Category

Shaft adaptation

Technical details

Product segment: Shaft adaptation; Product: Shaft couplings; Shaft diameter D1: 10 mm; Shaft diameter D2: 10 mm; Length: 35 mm; Maximumspeed: 3,000 min⁻¹; Maximum shaft offset - radial: ± 2.5 mm; Maximum shaft offset -axial: ± 3 mm; Maximum shaft offset - agular: ± 10°; Max. torque: 150 Ncm; Description: Double loop coupling, shaft diameter 10 mm / 10 mm, Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°; max. speed 3,000 rpm, –30° to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
