5326697

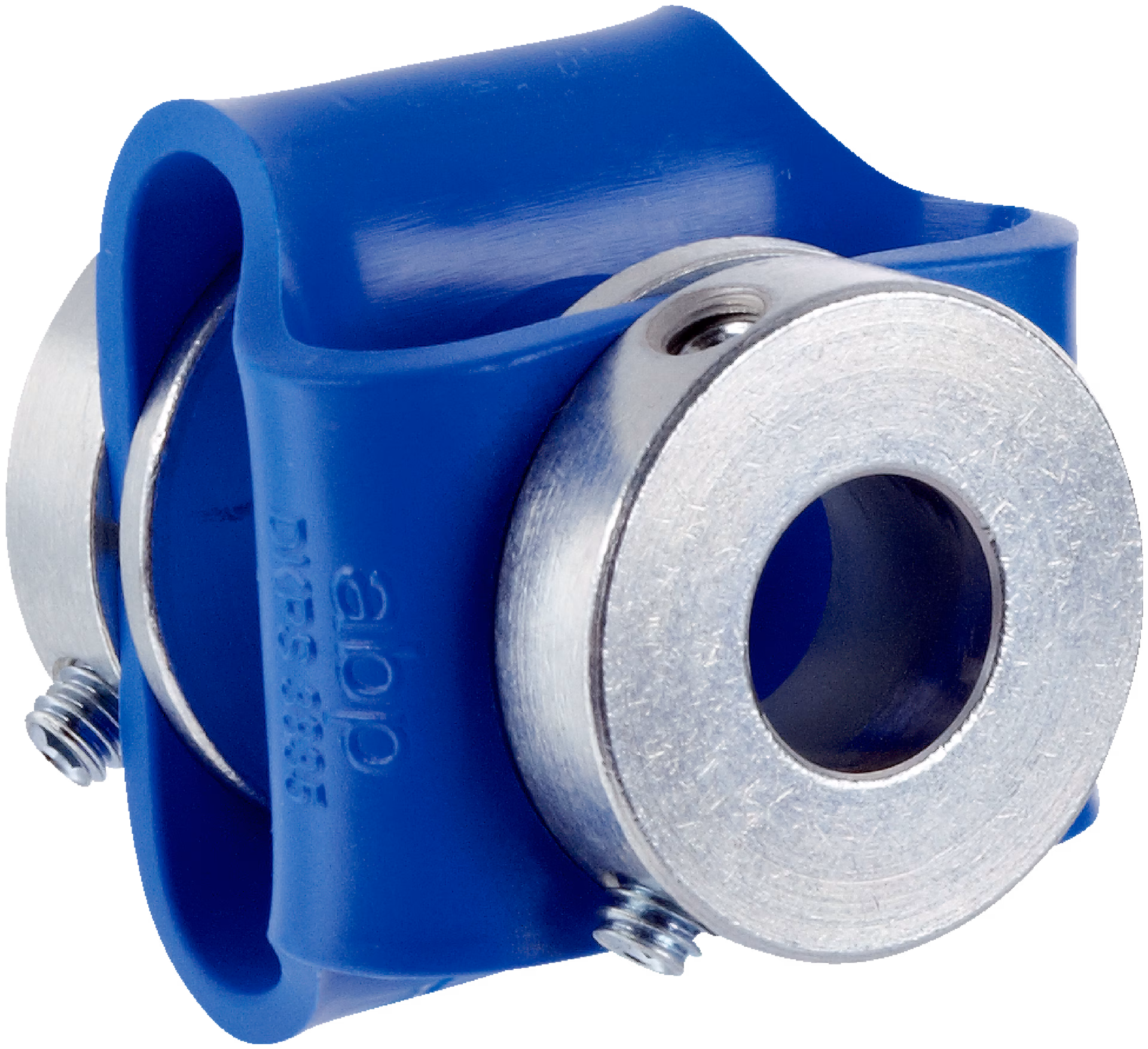

SICK 5326697 / KUP-0610-D is a shaft adaptation in the Shaft couplings family. Product segment: Shaft adaptation; Product: Shaft couplings; Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad.

Manufacturer

Sick

Part number

5326697

Product family

Shaft couplings

Category

Shaft adaptation

Technical details

Product segment: Shaft adaptation; Product: Shaft couplings; Shaft diameter D1: 6 mm; Shaft diameter D2: 10 mm; Length: 35 mm; Maximumspeed: 3,000 min⁻¹; Maximum shaft offset - radial: ± 2.5 mm; Maximum shaft offset -axial: ± 3 mm; Maximum shaft offset - agular: ± 10°; Max. torque: 250 Ncm; Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad
