5312986

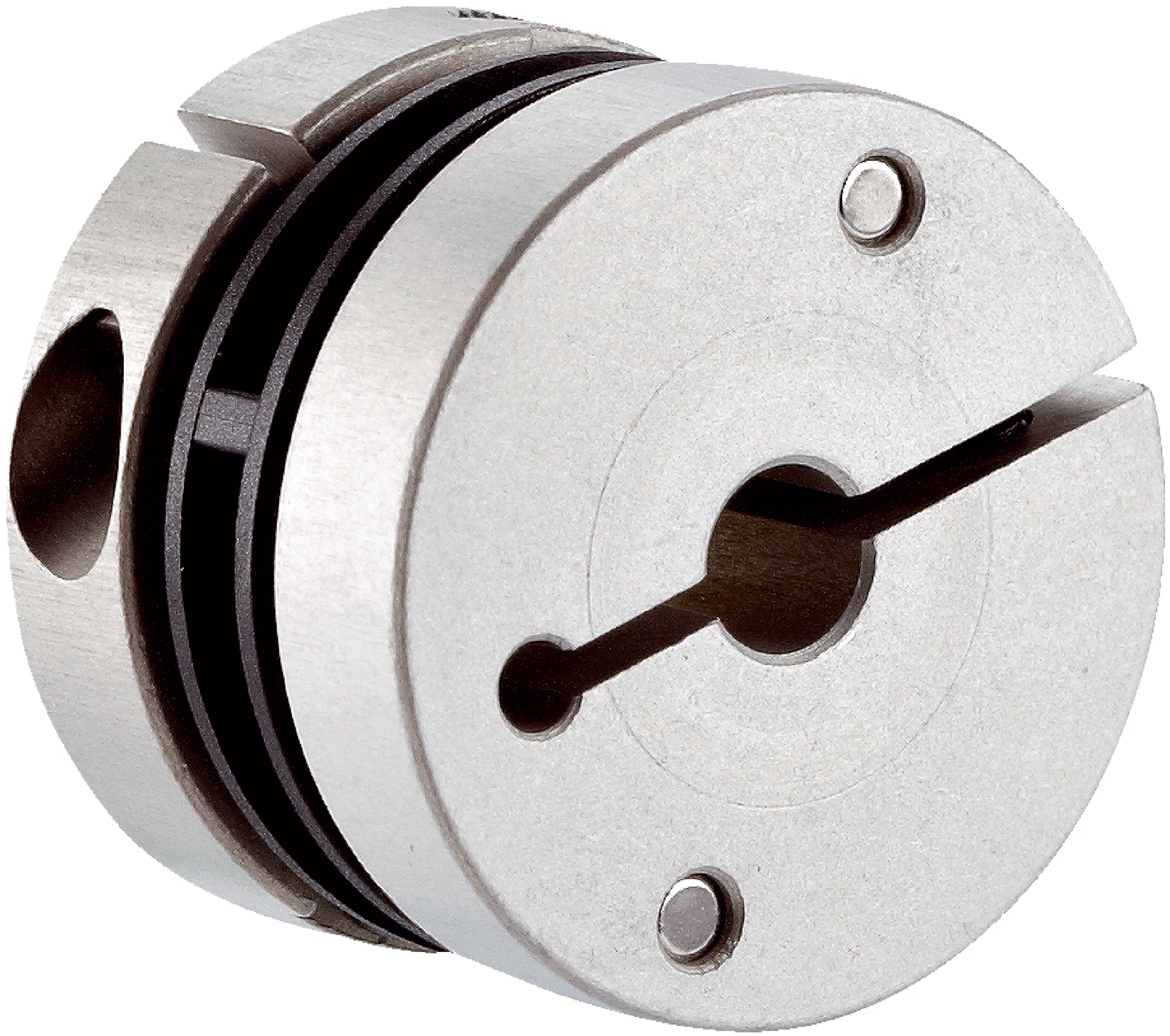

SICK 5312986 / KUP-1010-F is a shaft adaptation in the Shaft couplings family. Product segment: Shaft adaptation; Product: Shaft couplings; Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin.

Manufacturer

Sick

Part number

5312986

Product family

Shaft couplings

Category

Shaft adaptation

Technical details

Product segment: Shaft adaptation; Product: Shaft couplings; Shaft diameter D1: 10 mm; Shaft diameter D2: 10 mm; Length: 30 mm; Maximumspeed: 12,000 min⁻¹; Max. torque: 60 Ncm; Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin
