5312985

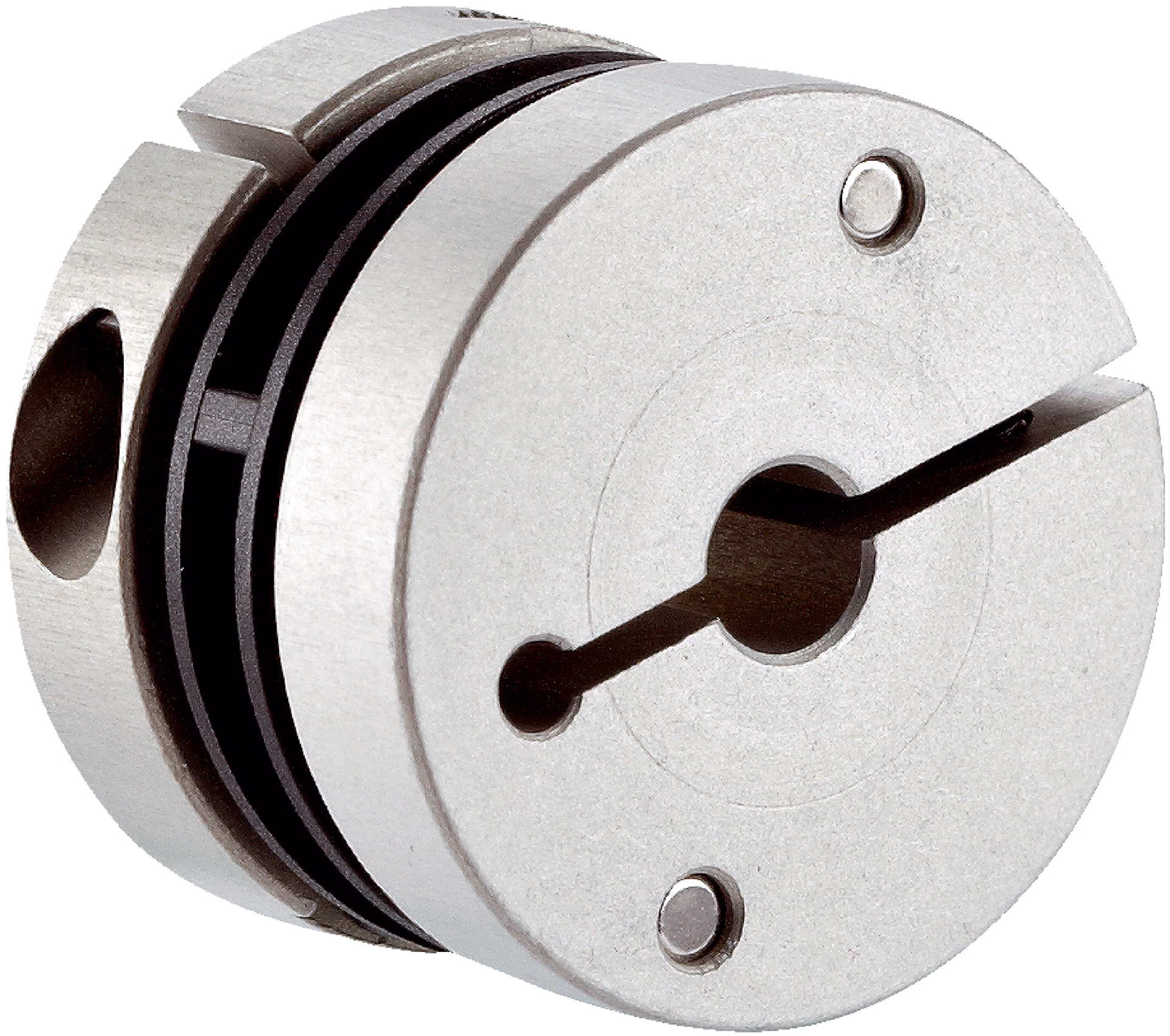

SICK 5312985 / KUP-0610-F is a shaft adaptation in the Shaft couplings family. Product segment: Shaft adaptation; Product: Shaft couplings; Description: Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin.

Manufacturer

Sick

Part number

5312985

Product family

Shaft couplings

Category

Shaft adaptation

Technical details

Product segment: Shaft adaptation; Product: Shaft couplings; Shaft diameter D1: 6 mm; Shaft diameter D2: 10 mm; Length: 22 mm; Maximumspeed: 12,000 min⁻¹; Maximum shaft offset - radial: ± 0.3 mm; Maximum shaft offset -axial: ± 0.4 mm; Maximum shaft offset - agular: ± 2.5°; Max. torque: 60 Ncm; Description: Spring washer coupling, shaft diameter 6 mm / 10 mm, Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.4 mm, angular +/- 2.5°; max. speed 12,000 rpm, –10° to +80 °C, max. torque 60 Ncm; material: aluminum flange, glass fiber-reinforced polyamide membrane and hardened steel coupling pin
