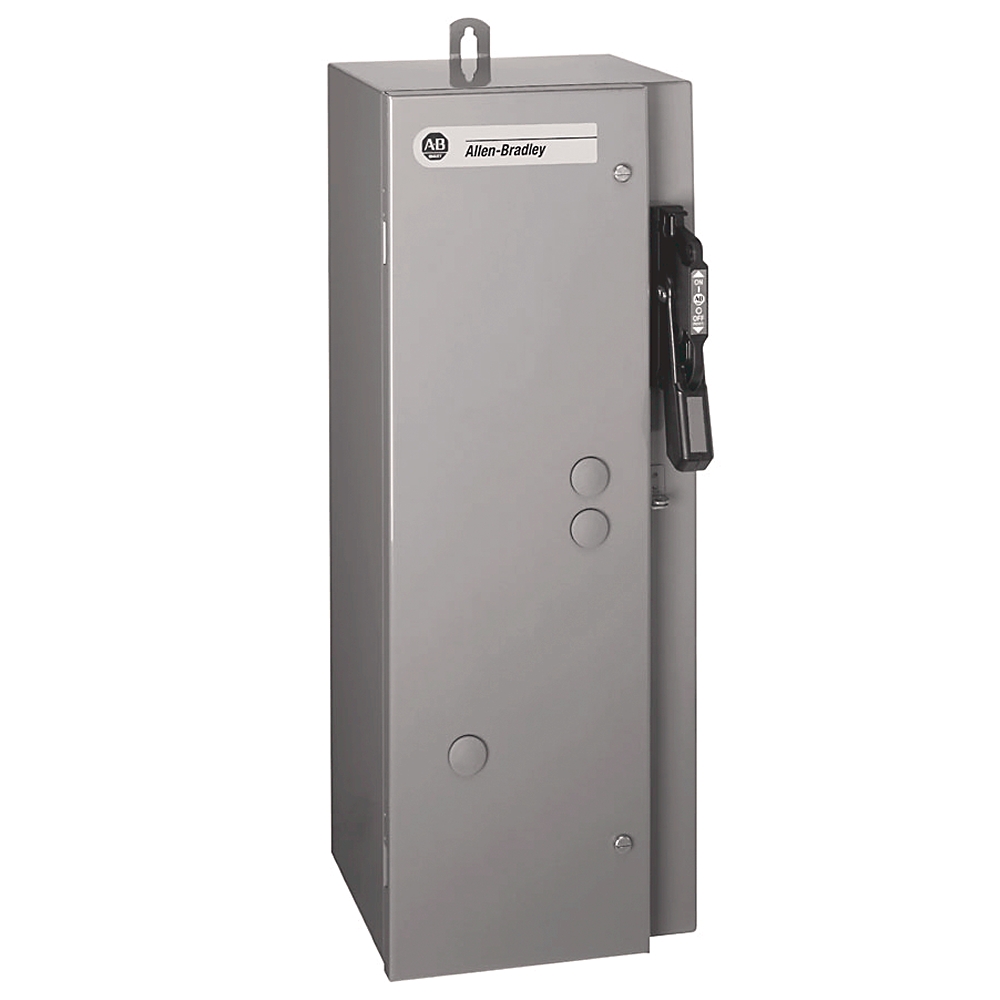

513-CFB-EC2C-3-4R-6P-42-901

COMB Starter Circuit Breaker,Size 2,120V 60 Hz,NEMA 3R/4/12 Painted,3 Pole - Three Phase,15HP (Mtr Prt), 150A (Fdr Prt),Instantaneous Trip - Standard,30 A,XFMR, w/2 Pri & 1 Sec Fuse,Aux Contact (Str, DS or CB),Pilot Lights,HAND-OFF-AUTO Selector Switch,440/480 VAC - 50/60Hz,E3+ OLR: 4In/2Out,5-25A,No Fuse Cover,1 N.O. 1 N.C.,Standard Capacity,80. VA,Ungrounded Transformer,Incandescent,Incandescent,Red Lens - Pos. 1,No Pilot Light Lens - Pos. 2,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 5,No Pilot Light Lens - Pos. 5.

Manufacturer

Allen-Bradley

Part number

513-CFB-EC2C-3-4R-6P-42-901

Product family

513

Category

Motor Starters

Technical details

Required torque on power terminal wire clamps and pressure connectors or lugs: 45 in-lb; Control Voltage: 120V 60 Hz; Circuit closing inrush current peak including offset, max: 483 A; Coil operating limits: 85 to 110 %; Continuous current rating: 45 A; Horsepower: 15 Hp

Weight

18.143695 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
