513-BACD-A2J-3-4G-41

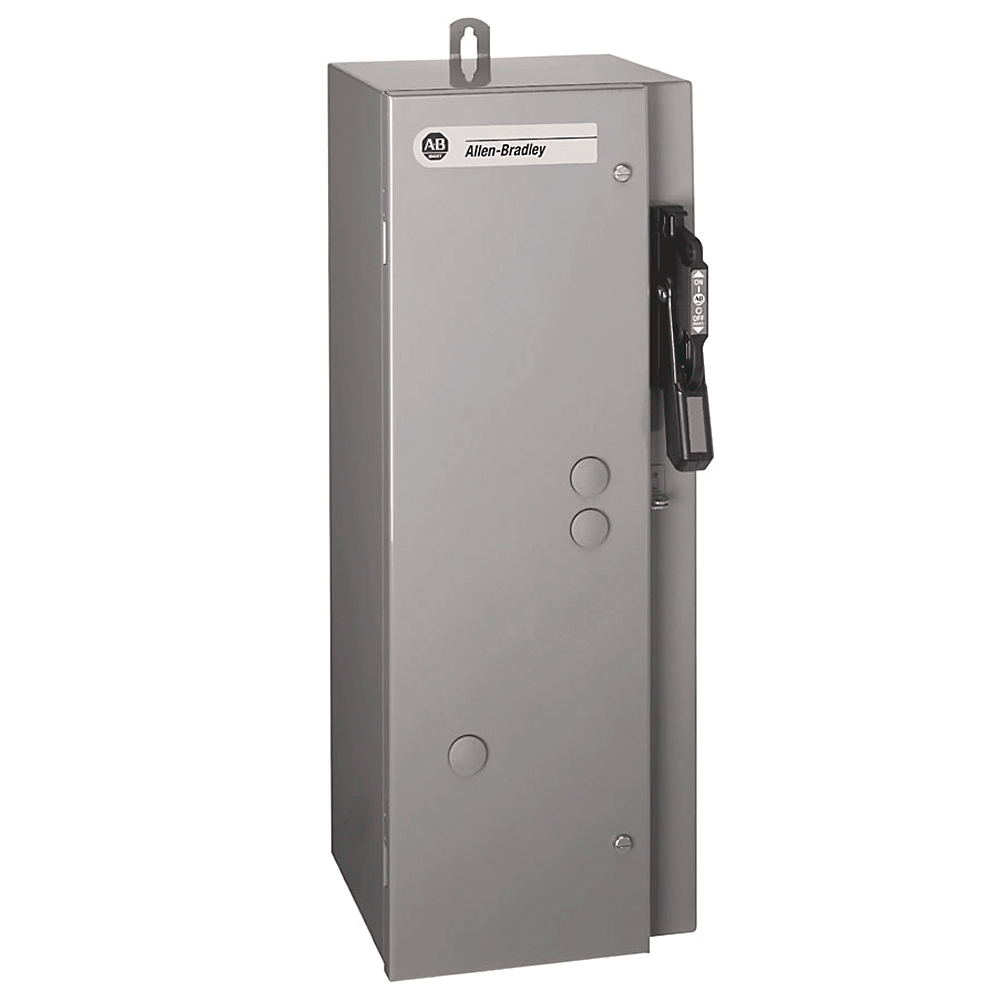

COMB Starter Circuit Breaker,Size 1,120V 60 Hz,NEMA 1 General Purpose,10HP (Mtr Prt), 125A (Fdr Prt),Instantaneous Trip - Standard,Pilot Lights,HAND-OFF-AUTO Selector Switch,600/110/120 VAC - 50/60Hz (CD),SMP1,E1+,MRst,Cl20,14-45A,No Fuse Cover,No Auxililiary Contacts,Standard Capacity,Ungrounded Transformer,Incandescent,Incandescent,Green Lens - Pos. 1,No Pilot Light Lens - Pos. 2,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 5.

Manufacturer

Allen-Bradley

Part number

513-BACD-A2J-3-4G-41

Product family

513

Category

Motor Starters

Technical details

Required torque on power terminal wire clamps and pressure connectors or lugs: 20 in-lb; Control Voltage: 120V 60 Hz; Circuit closing inrush current peak including offset, max: 288 A; Coil operating limits: 85 to 110 %; Continuous current rating: 27 A; Horsepower: 10 Hp

Weight

18.143695 kg
