47894

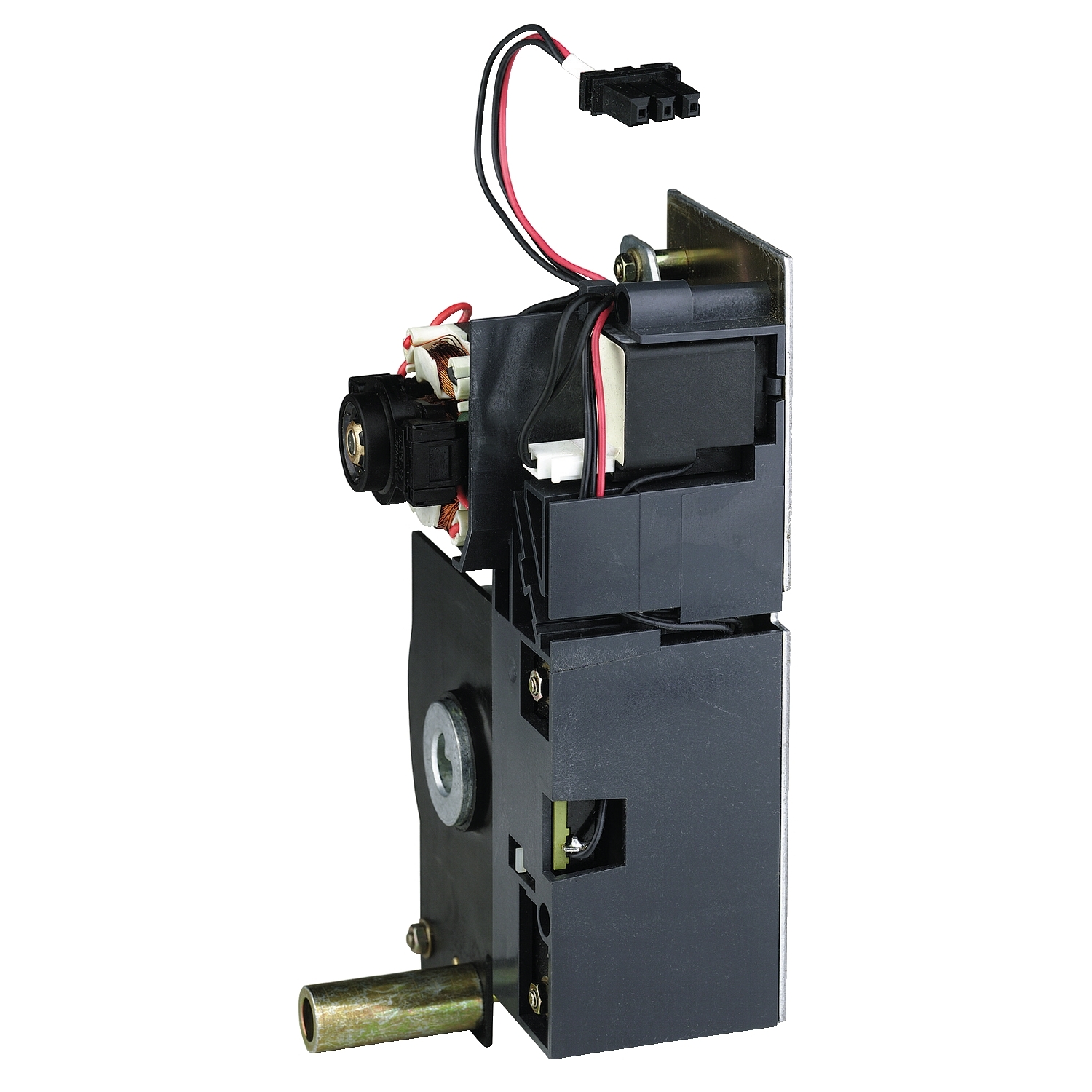

Schneider Electric 47894 is a gear motor MCH, drawout MasterPact NW, 200/240VAC 50/60Hz, spare part. This is a motor mechanism (MCH) for MasterPact NW circuit breakers. The motor mechanism module is used to remotely open and close the circuit breaker electrically.

Manufacturer

Schneider Electric

Part number

47894

Product family

47894

Category

Industrial Electrical Component

Technical details

200/240VAC 50/60Hz; It is made up of a spring-charging motor equipped with an opening release and a closing voltage release; It is equipped with a 10A limit switch contact (CH) that signals the charged position of the mechanism; The operational control voltage is 200/240 VAC 50/60 Hz; The operating threshold is between 0.85xUn and 1.1xUn; The charging time is less than 4s; The maximum operating frequency should not exceed 3 cycles per minute

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
