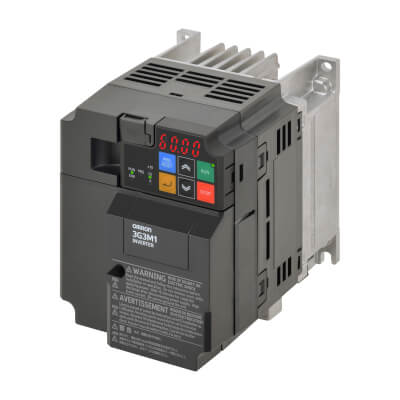

3G3M1-A2022

Omron 3G3M1-A2022 is a m1 AC Drive. M1 AC Drive, 2.2/3.0 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz.

Manufacturer

Omron

Part number

3G3M1-A2022

Product family

3G3M

Category

Variable Frequency Drives

Technical details

Drive control method: Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control; Drive supply voltage: 230 V three phase; Max. motor output at constant torque: 2.2 kW; Max. motor output at variable torque: 3.0 kW; Built in EMC filter: FALSE; Degree of protection (IP): IP20; Compatible motor type: Induction or asynchronous motor, Permanent magnet motor; Communication port(s): MODBUS Slave, Serial RS-485, USB; Communication option(s): None; Product Height (unpacked): 130 mm; Product Width (unpacked): 110 mm; Product Depth (unpacked): 156 mm; Product Weight (unpacked): 1400 g; Finless type: FALSE

Weight

1.4 kg

Dimensions

130 × 110 × 156 (H × W × D)
