2CCP247204R0001

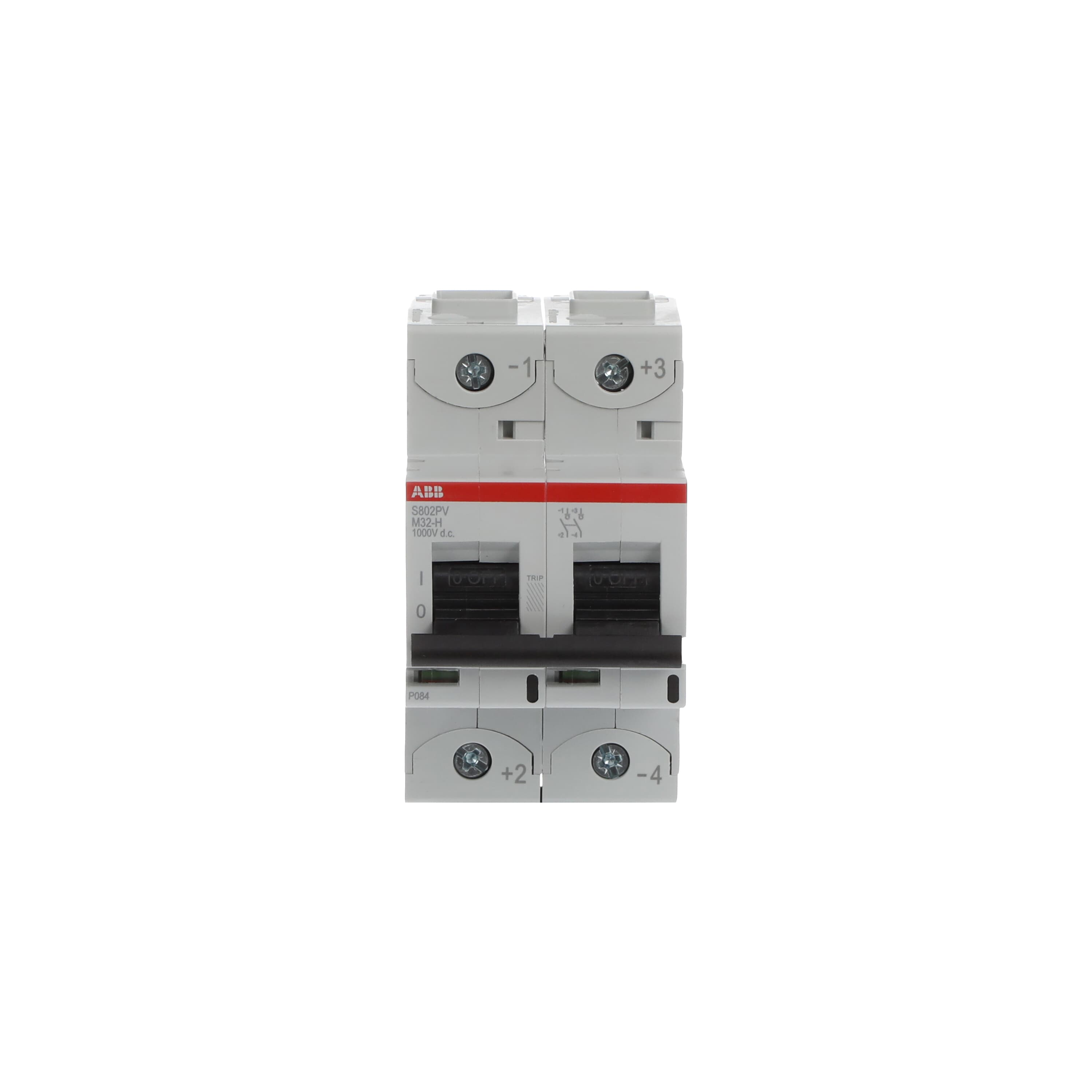

ABB S802PV-M32-H Switch disconnector (AC)
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
The S802PV-M32-H is a 2-pole polarized disconnector for photovoltaics. It can be used for currents up to 32A and has a rated operational voltage of 1000V DC by only 54mm width.
- Manufacturer
- ABB
- Part number
- 2CCP247204R0001
- Product family
- S
- Category
- Circuit Breakers
- Technical details
- Poles: 2P; Rated Ultimate Short-Circuit Breaking Capacity (Icu): (800 V DC) 5 kA; Rated Short-Circuit Making Capacity (Icm): (1000 V DC) 0.5 kA; Terminal Type: Screw Terminals; Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715; Tightening Torque: 3.5 N·m
- Weight
- 0.49 kg
- Dimensions
- 54 × 95 × 82.5
