20DC260A0EYNANANE

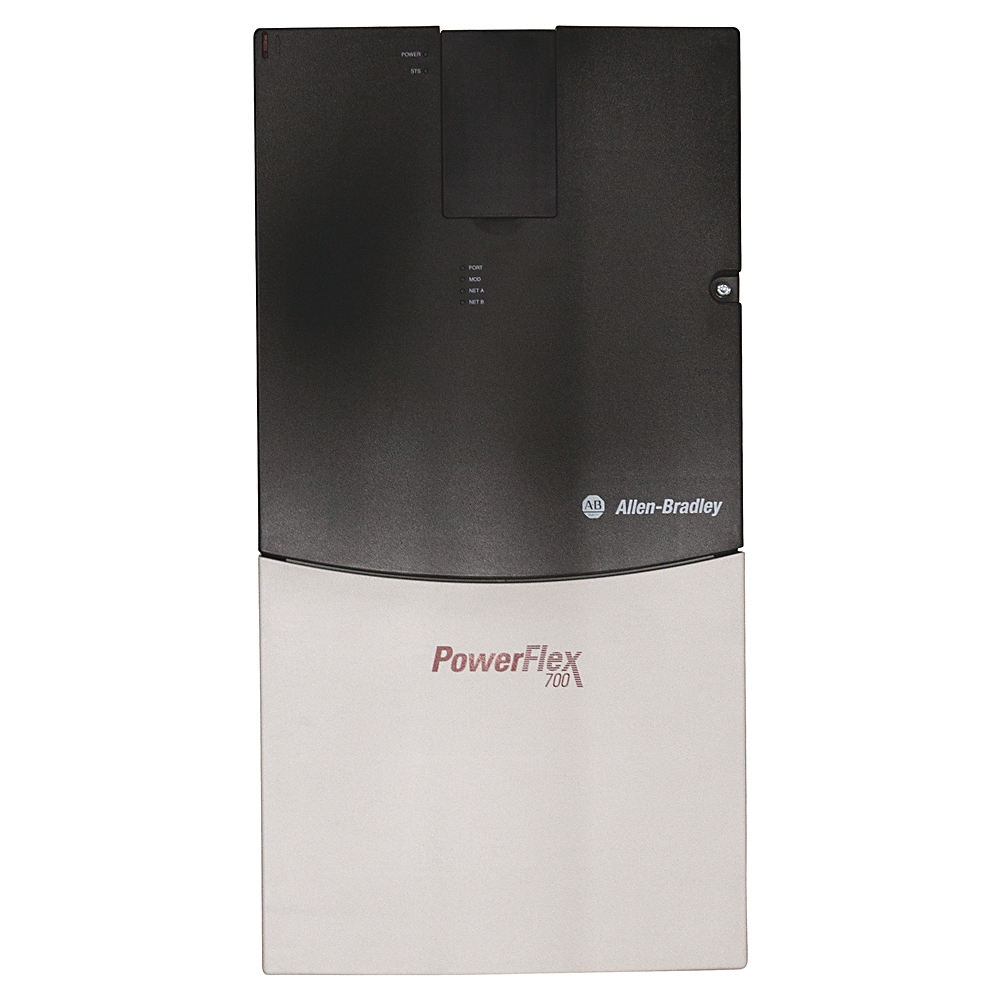

PowerFlex700S AC Drive, 400 VAC, 3 PH, 260 Amps, 132kW Normal Duty, 110kW Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Phase II control, Expanded cassette, Standard (Incremental Encoder), Phase II, No DriveLogix, no embedded comm.

Manufacturer

Allen-Bradley

Part number

20DC260A0EYNANANE

Product family

PowerFlex 700S

Category

Variable Frequency Drives

Technical details

Circuit breaker current rating, max: 750A @ 400V AC, 3-phase, normal duty; Dual element time delay fuse current rating: 350...550A @ 400V AC, 3-phase, normal duty; Input current rating: 254.7A @ 400V AC, 3-phase, normal duty; Motor circuit protector current rating, max: 400A @ 400V AC, 3-phase, normal duty; Non-time delay fuse current rating: 350...750A @ 400V AC, 3-phase, normal duty; Output current rating: 260 A, 132 kW normal duty, 110 kW heavy duty, frame 6
