20BD077A0ANNAND0

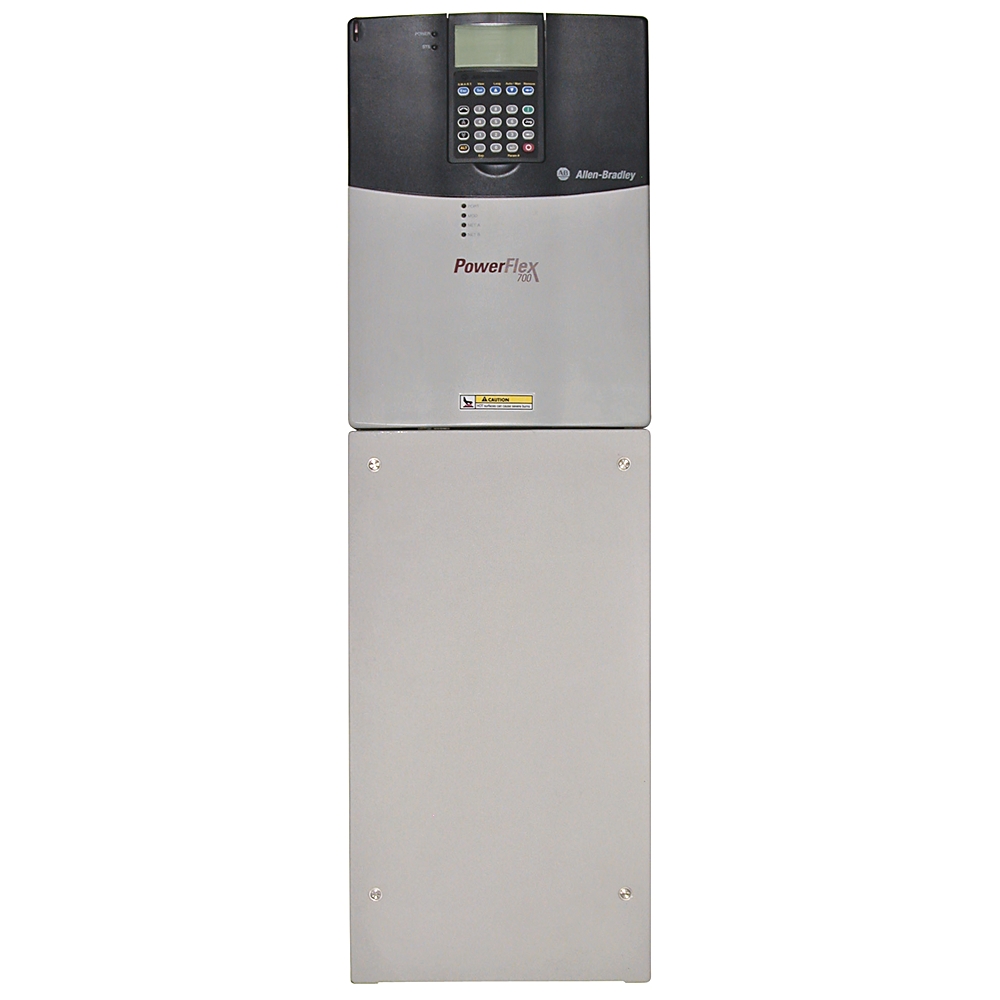

PowerFlex700 AC Drive, 480 VAC, 3 PH, 77 Amps, 60 HP Normal Duty, 50 HP Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Vector Control with 120V I/O, No Feedback.

Manufacturer

Allen-Bradley

Part number

20BD077A0ANNAND0

Product family

PowerFlex 700

Category

Variable Frequency Drives

Technical details

Circuit breaker current rating, max: 300A @ 480V AC, 3-phase, normal duty; Dual element time delay fuse current rating: 80...125A @ 480V AC, 3-phase, heavy duty; Fuse current rating: 150A @ 650V DC; Input current rating: 84.5A @ 650V DC, 60 Hp normal duty; Motor circuit protector current rating, max: 100A @ 480V AC, 3-phase, normal duty; Non-time delay fuse current rating: 80...250A @ 480V AC, 3-phase, heavy duty
