20BC170A0AYNANC0

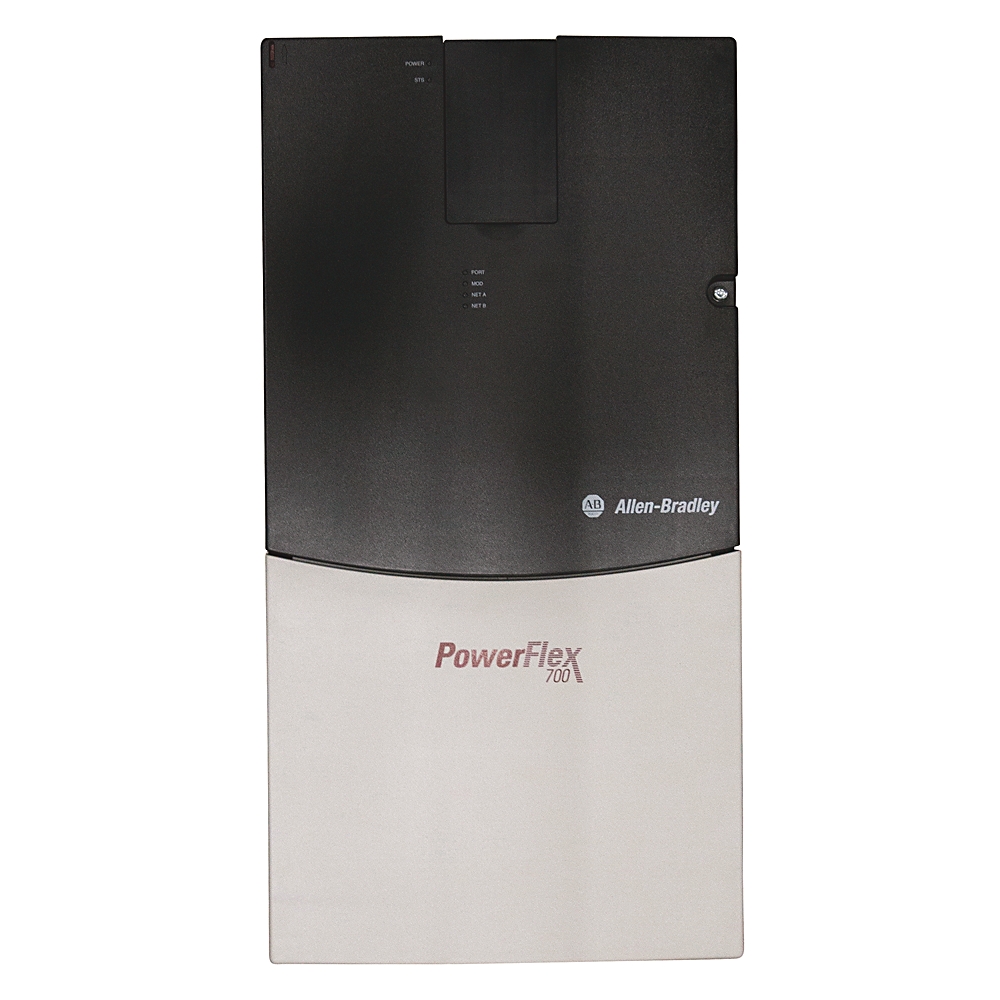

PowerFlex700 AC Drive, 400 VAC, 3 PH, 170 Amps, 90 kW Normal Duty, 75 kW Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Vector Control with 24V…

Manufacturer

Allen-Bradley

Part number

20BC170A0AYNANC0

Product family

PowerFlex 700

Category

Variable Frequency Drives

Technical details

Circuit breaker current rating, max: 500A @ 400V AC, 3-phase, normal duty; Dual element time delay fuse current rating: 250...375A @ 400V AC, 3-phase, normal duty; Input current rating: 164A @ 400V AC, 3-phase; Motor circuit protector current rating, max: 250A @ 400V AC, 3-phase, normal duty; Non-time delay fuse current rating: 250...600A @ 400V AC, 3-phase, normal duty; Output current rating: 85A @ 380...400V AC, 1-phase

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
