2086744

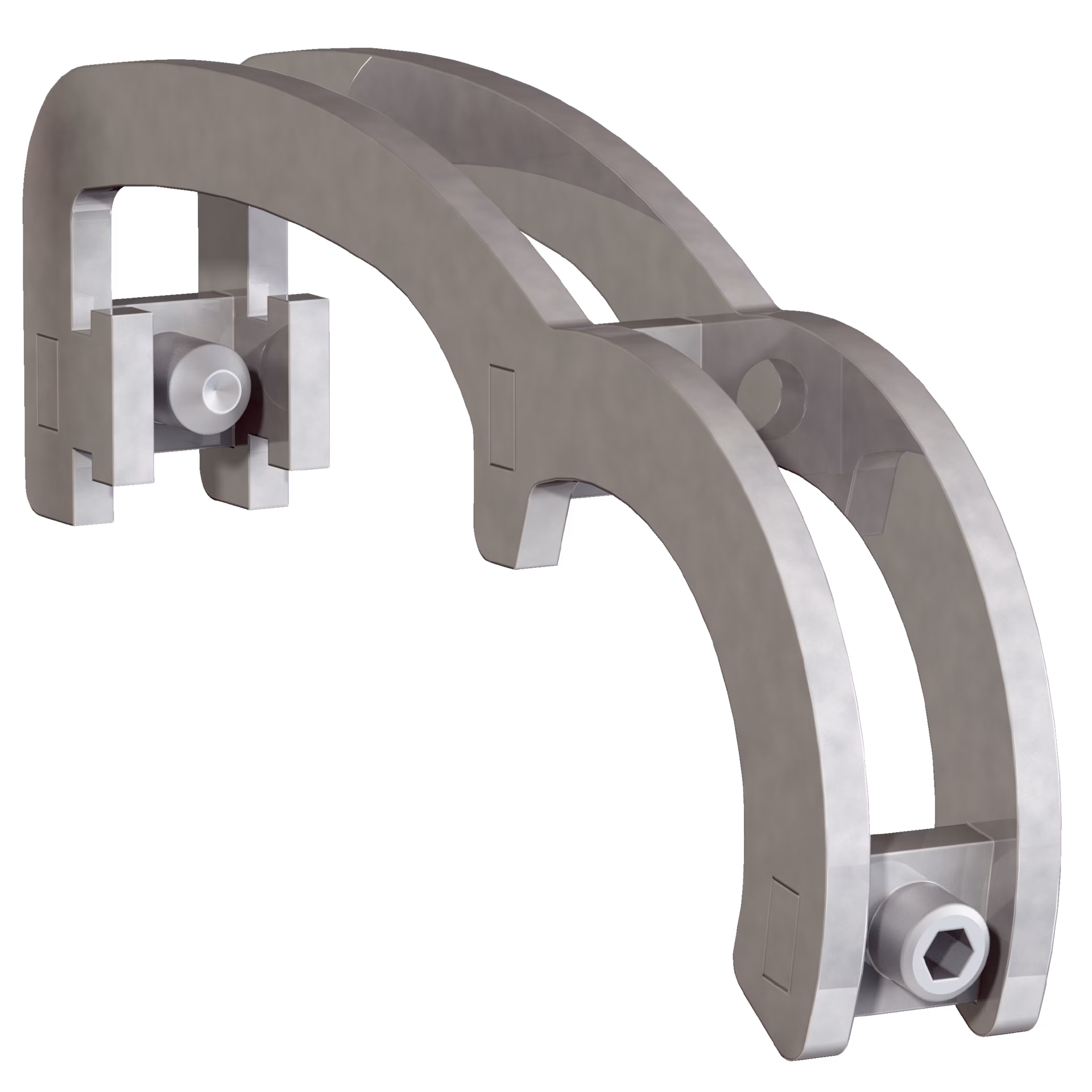

SICK 2086744 / BEF-KHZPF032MPA is a mounting system in the Brackets family. Description: Sensor adapter DSBC-32; Dimensions (W x H x L): 10 mm x 16.9 mm x 43.4 mm; Material: Stainless steel; Details: Stainless steel V2A; Usable for: MPA-107 mm... 251 mm (sensor measuring range), 2 (recommended number of brackets), MPA-287 mm... 431 mm (measuring range sensor), 3 (recommended number mounting brakets), MPA-467 mm... 647 mm (measuring range sensor), 4 (recommended number mounting brakets), MPA-683 mm... 791 mm (measuring range sensor), 5 (recommended number mounting brakets), MPA-827 mm... 1007 mm (measuring range sensor), 6 (recommended number mounting brakets).

Manufacturer

Sick

Part number

2086744

Product family

Brackets

Category

Mounting systems

Technical details

Dimensions (W x H x L): 10 mm x 16.9 mm x 43.4 mm; Accessory group: Mounting systems; Accessory family: Brackets; Description: Sensor adapter DSBC-32; Material: Stainless steel V2A; Usable for: MPA-107 mm... 251 mm (sensor measuring range), 2 (recommended number of brackets); MPA-287 mm... 431 mm (measuring range sensor), 3 (recommended number mounting brakets); MPA-467 mm... 647 mm (measuring range sensor), 4 (recommended number mounting brakets); MPA-683 mm... 791 mm (measuring range sensor), 5 (recommended number mounting brakets); MPA-827 mm... 1007 mm (measuring range sensor), 6 (recommended number mounting brakets); Mounting system type: Adaptor

Dimensions

10 x 16.9 x 43.4
