1SDA054456R1

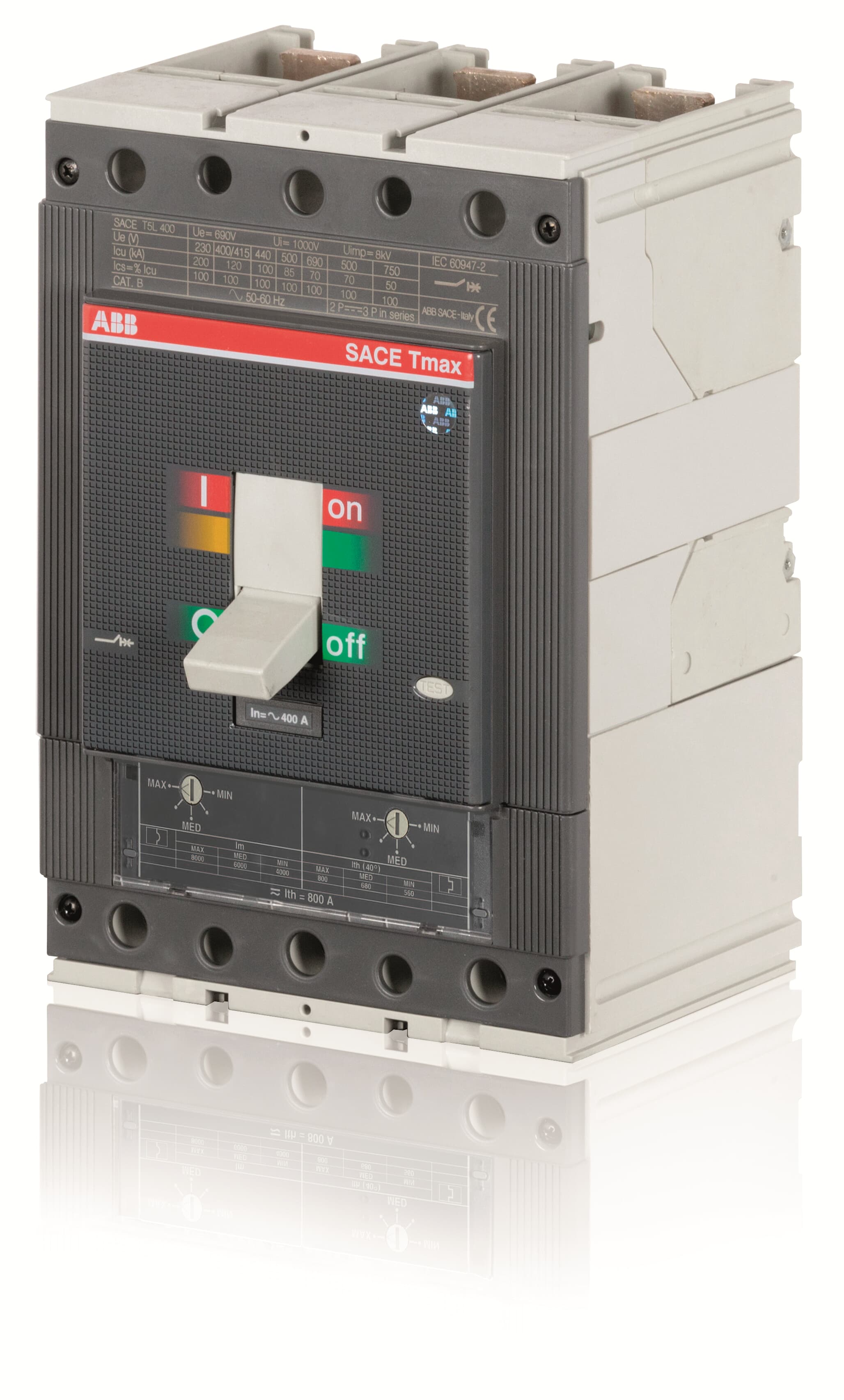

ABB T5N 630 TMA 500-5000 3p F F
Availability● On RequestSubject to confirmation
Estimated Dispatch5-7 business daysTypical for available stock
Warranty12 MonthsNeoIPS warranty
Verified ProductPart number confirmed
Global SourcingSupplier network
Quality Assured12-month warranty
Responsive SupportBefore and after sale
Circuit breaker tmax T5N 630 fixed three-pole with front terminals and thermomagnetic release tma r 500 I3=2500...5000 a.
- Manufacturer
- ABB
- Part number
- 1SDA054456R1
- Product family
- SACE Tmax T
- Category
- Circuit Breakers
- Technical details
- Rated current (In): 500 A; Operational voltage: 690 V AC, 750 V DC; Poles: 3P; Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 70 kA, (230 V AC) 70 kA, (380 V AC) 36 kA, (400 V AC) 36 kA…; Short-Circuit Performance Level: N; Test Voltage at Industrial Frequency for 1 Minute: 3500 V
- Weight
- 4.579 kg
- Dimensions
- 140 × 205 × 103.5
