1SAM201913R1103

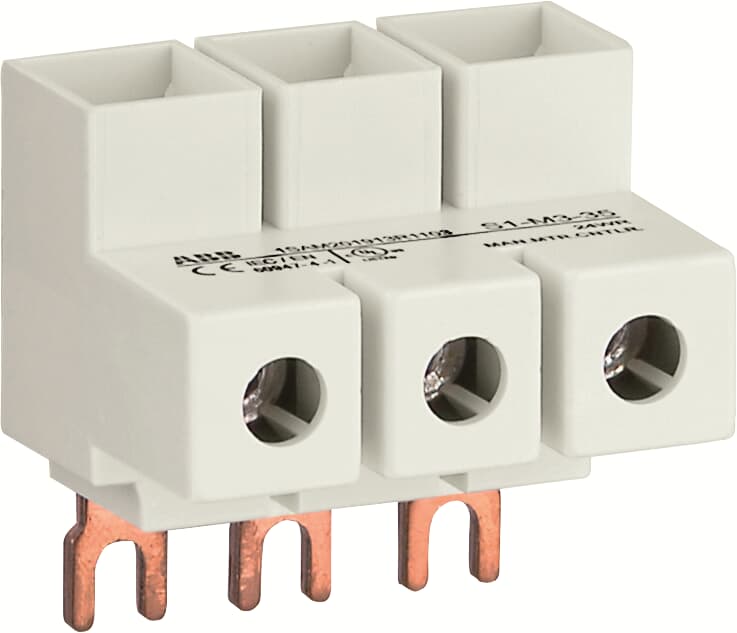

S1-M3-35 three phase feeder terminals allow the connection of bigger cable cross sections up to 35mm². They are usable with MS116 and MS132 manual motor starters. The rated current is 100 A. S1-M3-35 can also be used for line-side terminal spacing on MS132 which allows their usage in Type E / Type F applications.

Manufacturer

ABB

Part number

1SAM201913R1103

Product family

S

Category

Circuit Breaker Accessories

Technical details

Operational voltage: 690 V AC, 250 V DC; Poles: 3P; Protection: IP20; Terminal Type: Screw Terminals; Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1; Connecting Capacity Main Circuit: Flexible with Ferrule 1x 10 ... 35 mm², Flexible with Insulated Ferrule 1x 10 ... 35 mm², Flexible 1x 10 ... 35 mm²…

Weight

0.06 kg

Dimensions

45.5 × 45.7 × 35.3
